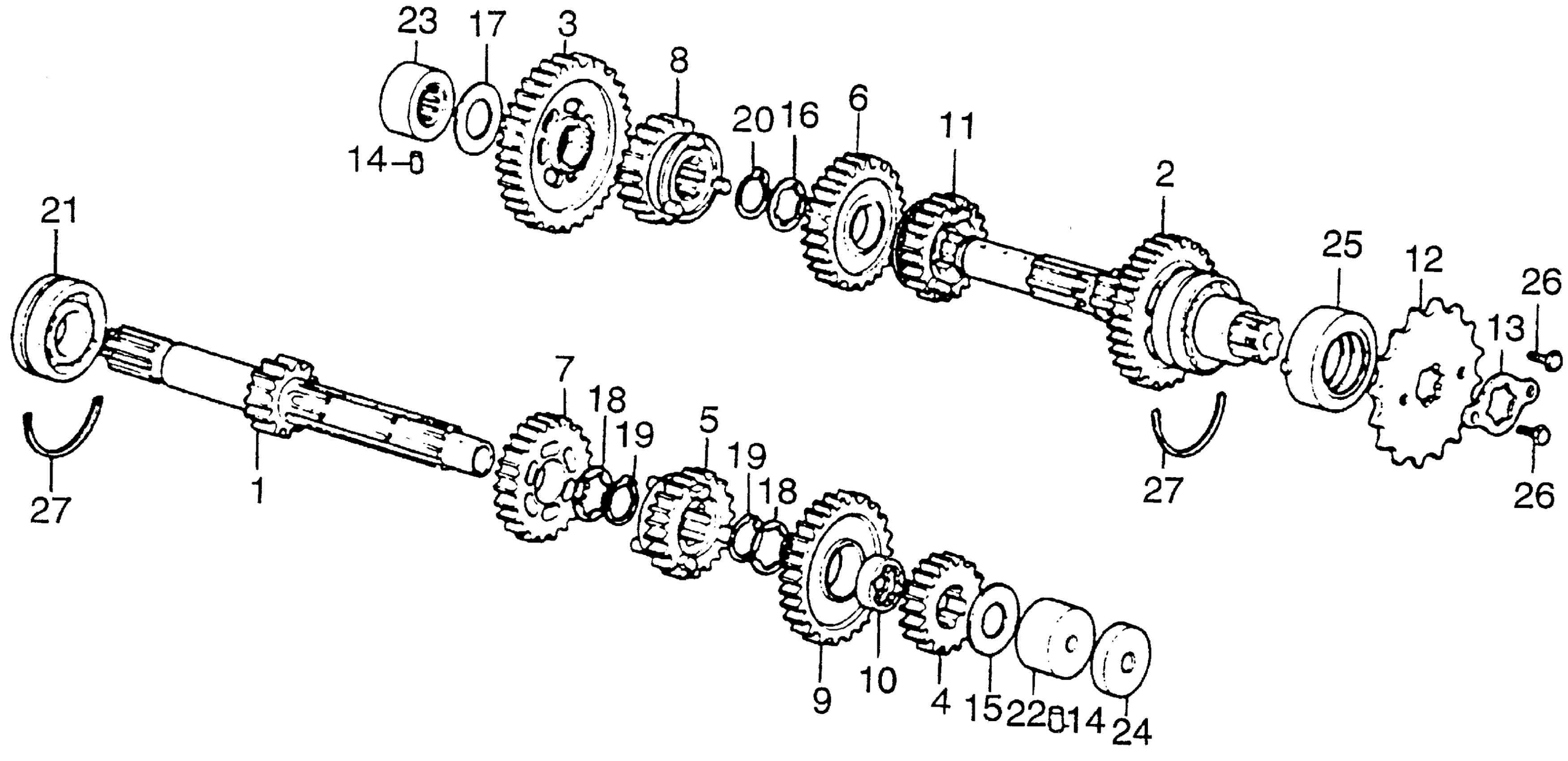

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (17T) (NOT AVAILABLE)

23211-329-770

Unavailable

2

COUNTERSHAFT, TRANSMISSION (35T) (NOT AVAILABLE) | Use up to Engine SN 1020846 This part replaces 23220-385-000.

23220-385-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (35T) (NOT AVAILABLE)

23220-385-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (40T)

23410-329-000

Unavailable

4

GEAR, MAINSHAFT SECOND (21T)

23421-329-000

Unavailable

5

GEAR, MAINSHAFT THIRD (25T)

23441-329-000

Unavailable

6

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE)

23451-329-000

Unavailable

7

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-329-010

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (28T)

23471-386-000

Unavailable

9

GEAR, MAINSHAFT TOP (31T) (NOT AVAILABLE)

23481-329-010

Unavailable

10

BUSH, SPLINE (22MM) (NOT AVAILABLE)

23485-329-000

Unavailable

11

GEAR, COUNTERSHAFT TOP (25T)

23491-329-020

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-329-000

Unavailable

12

SPROCKET, DRIVE (14T) | (Optional).

23801-329-810

Unavailable

13

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

14

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

15

WASHER, THRUST (17X32) (NOT AVAILABLE)

90411-356-000

Unavailable

16

WASHER, THRUST (25MM) | Use from Engine SN 1007971

90451-MB2-000

Unavailable

16

WASHER, THRUST (25MM) | Use up to Engine SN 1007970

90451-300-000

Unavailable

16

WASHER, THRUST (25MM) | Use from Engine SN 1007971 This part replaces 90451-371-000.

90451-MB2-000

Unavailable

17

WASHER, THRUST (20MM)

90458-292-000

$3.54

18

WASHER, SPLINE (22MM) (NOT AVAILABLE)

90463-329-000

Unavailable

19

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

20

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

21

BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)

91002-286-008

Unavailable

22

BEARING, NEEDLE (17MM) (TOYO)

91021-329-003

Unavailable

22

BEARING, NEEDLE (17MM) (TOYO) (NOT AVAILABLE)

91021-356-018

Unavailable

23

BEARING B, NEEDLE (20MM) (KOYO)

91022-312-004

Unavailable

24

OIL SEAL (8X34X8)

91203-292-005

$13.88

25

OIL SEAL (34X52X13.5X15.5) | Use up to Engine SN 1019705 This part replaces 91205-333-005.

91205-333-015

Unavailable

25

OIL SEAL (34X52X13.5X15.5) | Use up to Engine SN 1019705

91205-333-015

Unavailable

25

OIL SEAL (34X52X13.5X15.5)

91205-333-015

Unavailable

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

SET-RING (520)

95015-25200

Unavailable
