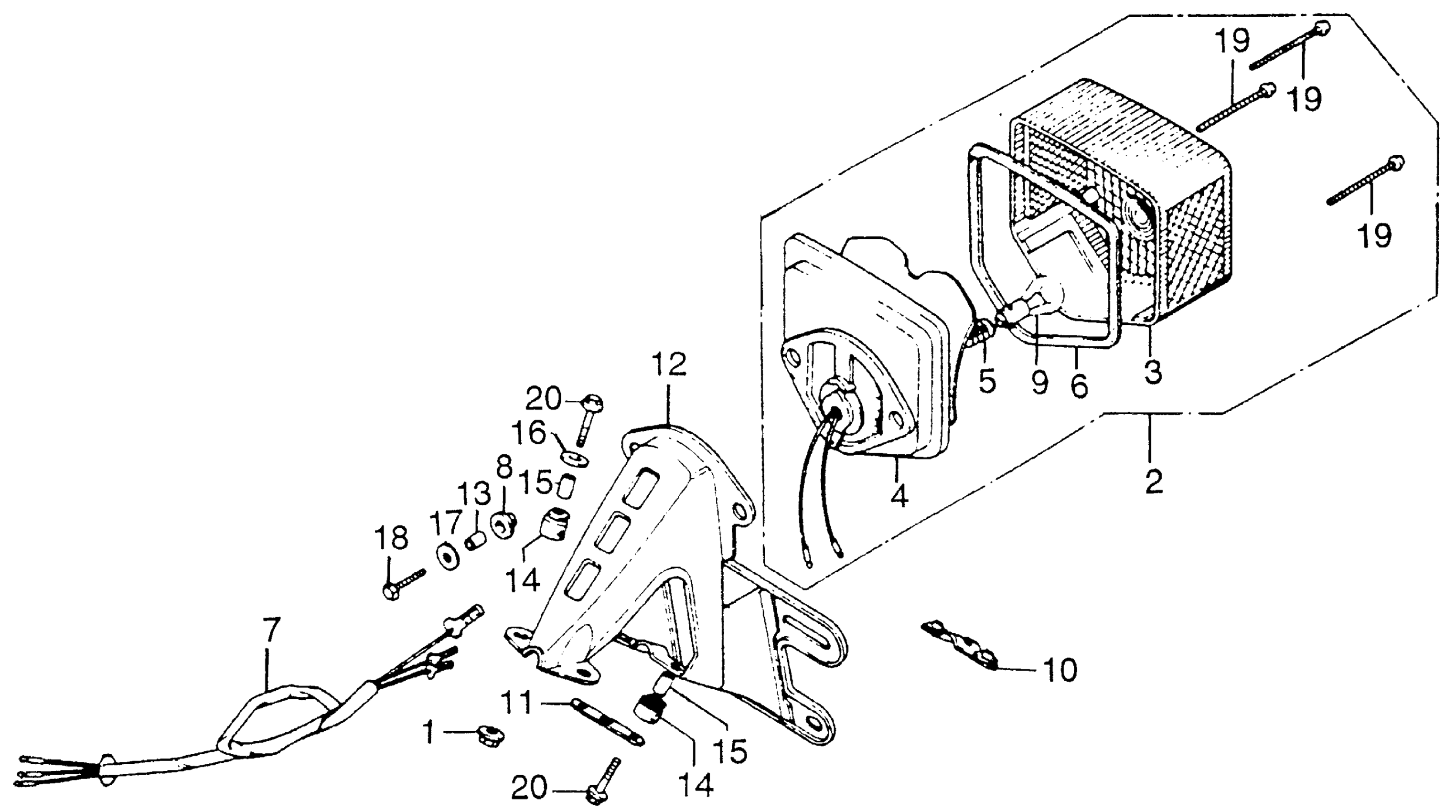

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 TAILLIGHT Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-329-671

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-331-770

Unavailable

8

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

9

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

10

PLATE A, NUMBER BRACKET SETTING (NOT AVAILABLE)

80109-340-000

Unavailable

11

PLATE B, NUMBER BRACKET MOUNT (NOT AVAILABLE)

80110-312-000

Unavailable

12

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-340-670

Unavailable

13

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

14

RUBBER, FENDER

84905-333-000

$4.22

15

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

16

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

17

WASHER (20MM)

90581-310-000

$1.90

18

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

19

SCREW, PAN (4X55) This part replaces 93500-04055-4A.

93500-04055-4J

$1.49

19

SCREW, PAN (4X55)

93500-04055-4J

$1.49

20

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

20

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
