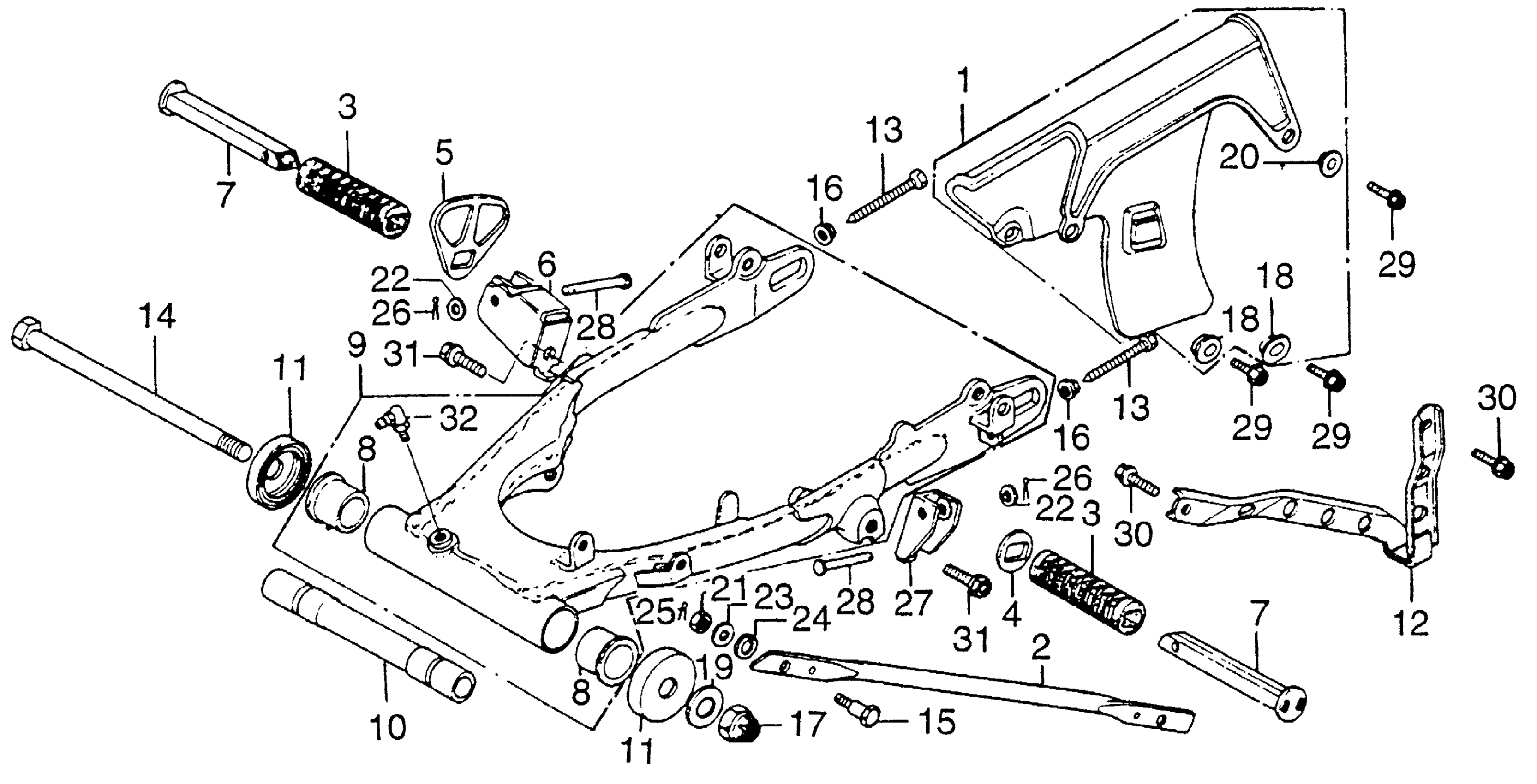

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-385-000

Unavailable

2

ARM, RR. BRAKE STOPPER | Use up to Frame SN 4015494 This part replaces 43431-355-000.

43431-KC1-730

Unavailable

2

ARM, RR. BRAKE STOPPER | Use up to Frame SN 4015494 This part replaces 43431-385-000.

43431-KC1-730

Unavailable

3

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

3

RUBBER, PILLION FOOTPEG

50716-371-660

$12.78

4

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

5

WASHER, PILLION FOOTPEG

50712-385-000

Unavailable

6

BRACKET, PILLION STEP (NOT AVAILABLE)

50713-385-000

Unavailable

7

BAR, PILLION FOOTPEG

50715-MA6-000

Unavailable

7

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

Unavailable

8

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

9

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-385-000ZA

Unavailable

10

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-333-000

Unavailable

10

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-369-000.

52141-333-000

Unavailable

11

CAP, DUST SEAL

52144-362-000

Unavailable

12

GUIDE, CHAIN (NOT AVAILABLE)

52156-385-000

Unavailable

13

BOLT, CHAIN ADJUSTING

90119-300-000

$8.51

14

BOLT, RR. SWINGARM PIVOT

90121-356-000

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

16

NUT, HEX. (8MM)

90309-357-000

$3.16

17

NUT, LOCK (14MM)

90354-268-000

$6.32

18

WASHER (6X9)

90513-323-000

$1.67

19

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

19

WASHER (14X26)

90527-634-670

Unavailable

20

WASHER, NUMBER BRACKET SETTING

90563-045-000

$2.90

21

NUT, HEX. (8MM)

94001-08000-0S

$1.19

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

Unavailable

23

WASHER, PLAIN (8MM)

94101-08000

$0.75

24

WASHER, SPRING (8MM)

94111-10000

$1.22

25

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.94

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

25

PIN, COTTER (2.0X22)

94201-20220

$0.94

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

25

PIN, COTTER (2.0X35)

94201-20350

$0.94

25

PIN, COTTER (2.0X22)

94201-29220

$0.94

26

PIN, LOCK (6MM)

94251-06000

$0.94

27

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

28

PIN B, PILLION FOOTPEG

95015-82000

$2.19

29

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$0.91

29

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

30

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.19

30

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

31

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

Unavailable

31

BOLT, FLANGE (10X20)

95701-10020-00

Unavailable

32

FITTING, GREASE (B.76S)

96201-80000

$2.33
