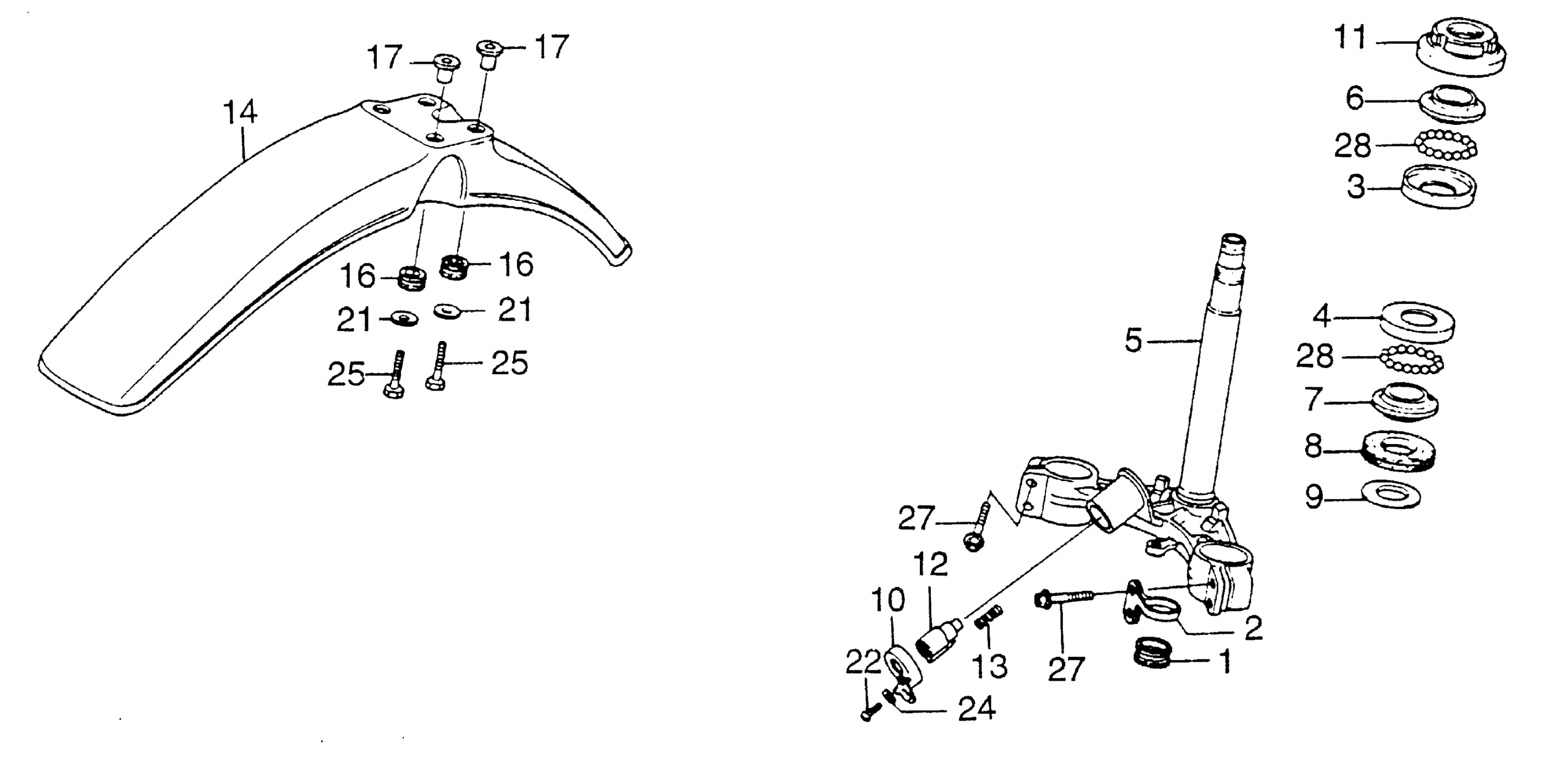

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.80

2

GUIDE B, FR. BRAKE CABLE

45468-329-000

Unavailable

3

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

3

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.29

4

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

4

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

4

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

5

STEM, STEERING *NH1* (BLACK)

53200-385-000ZA

Unavailable

6

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

7

RACE, STEERING CONE (LOWER)

53212-200-305

$17.77

8

DUST SEAL, STEERING HEAD

53214-200-000

$2.80

9

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.61

10

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-391-670

Unavailable

11

THREAD, STEERING HEAD TOP

53220-303-000

$11.29

12

LOCK, HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 4015494

53600-382-671

Unavailable

12

LOCK, HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 4015493

53600-391-670

Unavailable

13

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

14

FENDER, FR. (NOT AVAILABLE)

61100-385-670

Unavailable

16

RUBBER, FR. FENDER SETTING

61103-357-000

Unavailable

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

17

COLLAR, RR. FENDER

61105-428-000

Unavailable

21

WASHER (6.5X20)

90545-292-000

$1.61

22

SCREW, PAN (3X12) This part replaces 93500-03012.

93500-03012-0A

$0.75

22

SCREW, PAN (3X12)

93500-03012-0A

$0.75

24

WASHER, PLAIN (3MM)

94101-03000

$0.59

25

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

Unavailable

25

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

27

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.26

27

BOLT, FLANGE (8X32)

95701-08032-00

$1.26

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
