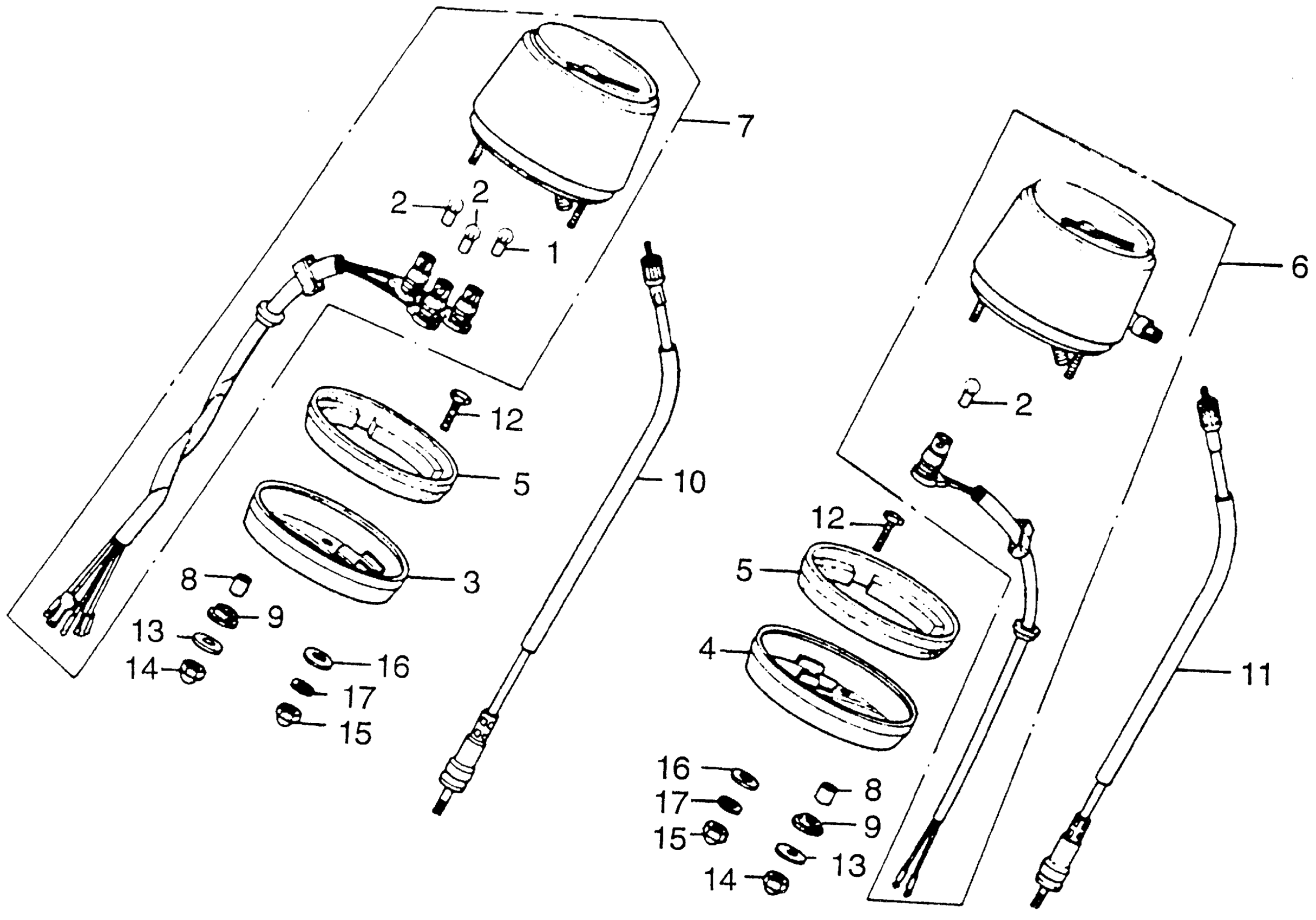

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 SPEEDOMETER + TACHOMETER Diagram

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

RING, R. METER SETTING

37111-453-008

Unavailable

RING, L. METER SETTING

37112-453-008

Unavailable

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-385-671

Unavailable

TACHOMETER ASSY. (NOT AVAILABLE)

37240-329-700

Unavailable

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

RUBBER, METER SETTING

37244-307-670

$2.67

CABLE ASSY., TACHOMETER (NOT AVAILABLE)

37260-356-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-MA1-730.

44830-426-830

$25.47

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-000.

44830-426-830

$25.47

CABLE ASSY., SPEEDOMETER

44830-426-830

$25.47

BOLT, METER SETTING

90159-356-000

$4.58

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (8MM)

94021-08020-0S

$1.82

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
