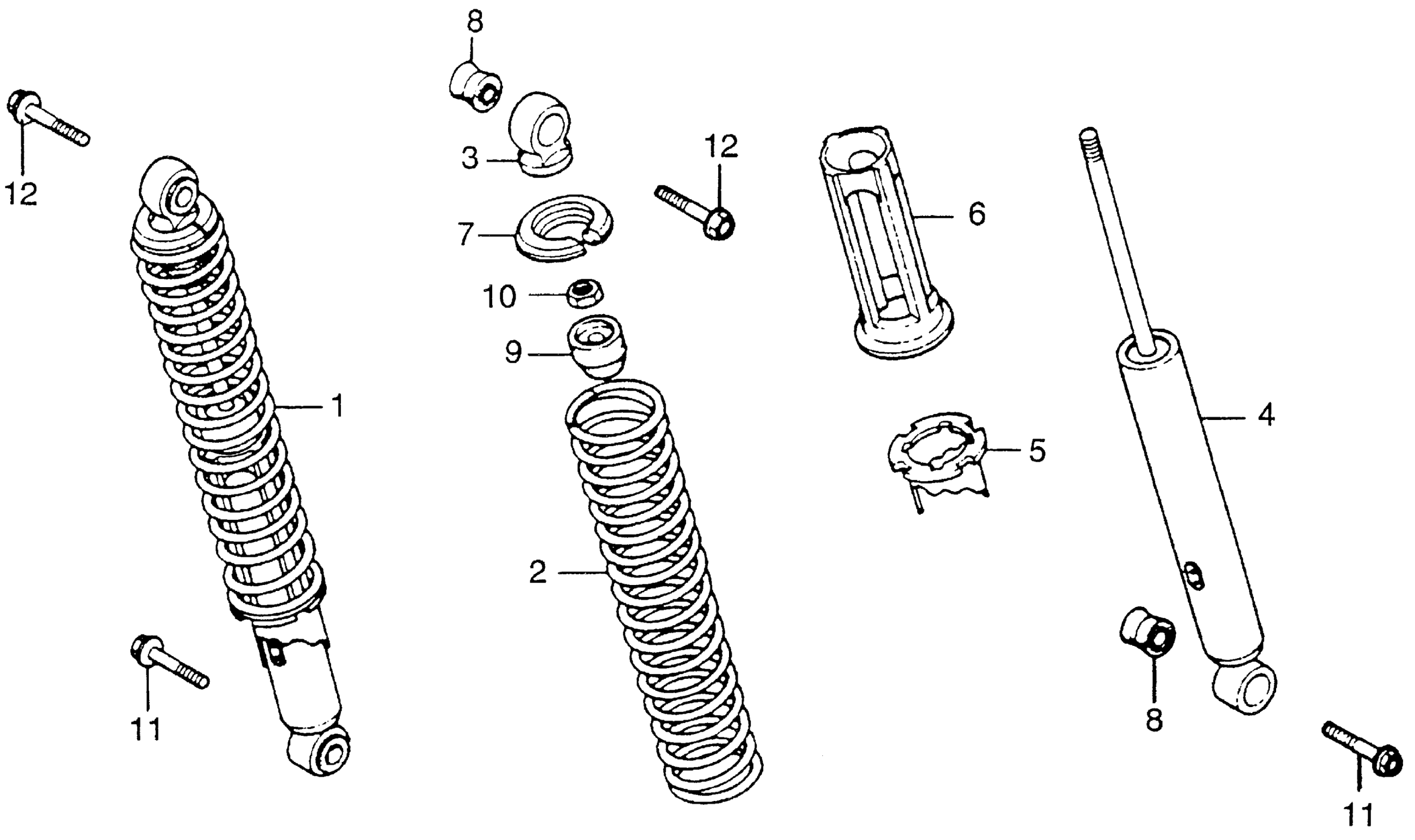

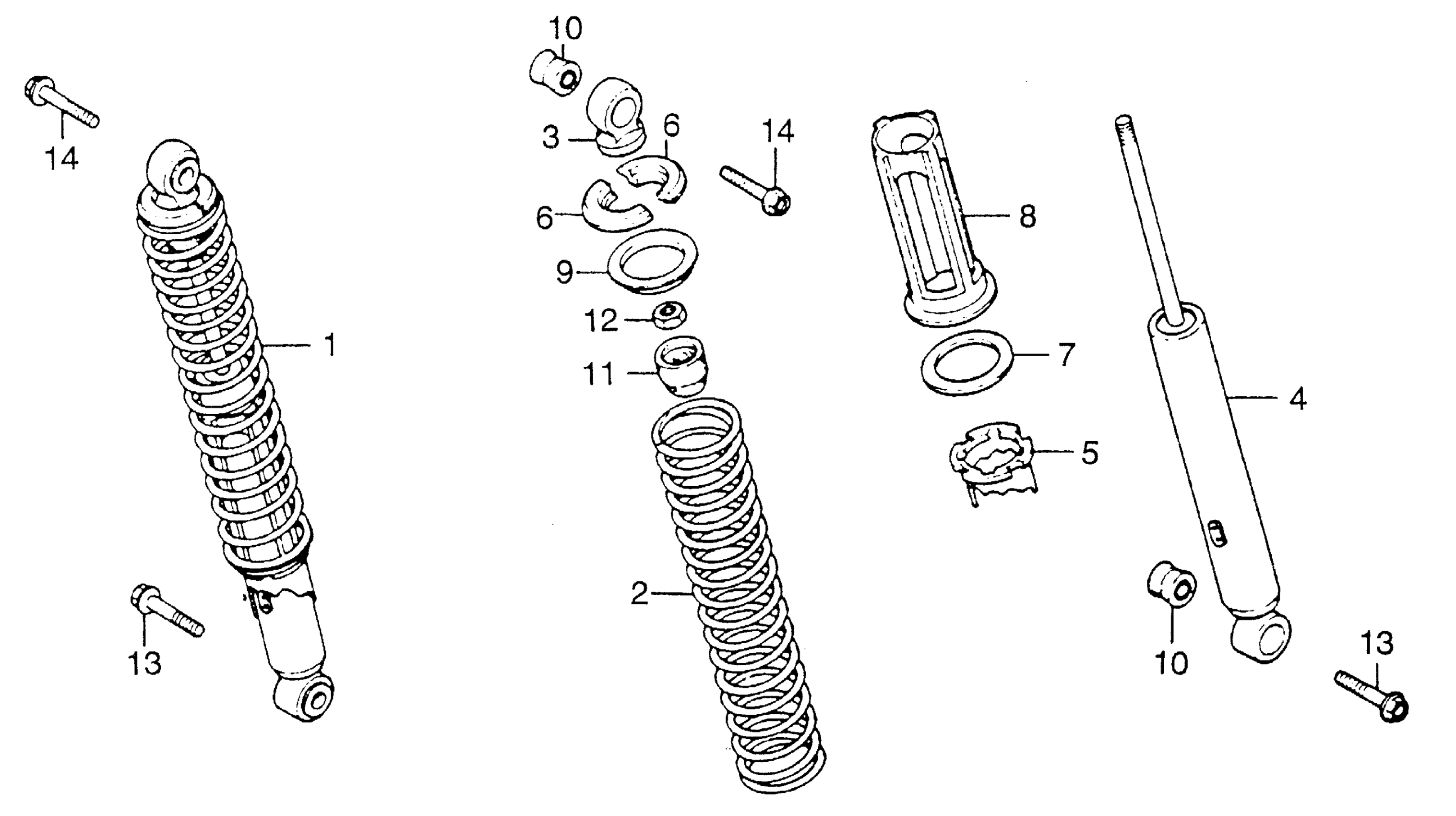

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. | (Optional).

52400-385-811

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | (Optional).

52401-385-811

Unavailable

JOINT (UPPER) (SHOWA) | (Optional).

52403-385-003

Unavailable

DAMPER, RR. (NOT AVAILABLE) | (Optional).

52410-385-811

Unavailable

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE) | (Optional).

52422-371-003

Unavailable

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE) | (Optional).

52458-385-810

Unavailable

SEAT, SPRING (UPPER) (SHOWA) (NOT AVAILABLE) | (Optional).

52459-371-003

Unavailable

BUSH, SHOCK ABSORBER | (Optional).

52489-361-000

Unavailable

RUBBER, STOPPER (NOT AVAILABLE) | (Optional).

52517-385-000

Unavailable

NUT, HEX. (11MM) (NOT AVAILABLE) | (Optional).

90301-376-003

Unavailable

BOLT, FLANGE (10X32) | (Optional). This part replaces 95700-10032-00.

95701-10032-00

$1.49

BOLT, FLANGE (10X32) | (Optional).

95701-10032-00

$1.49

BOLT, FLANGE (10X40) | (Optional). This part replaces 95700-10040-00.

95701-10040-00

$1.51

BOLT, FLANGE (10X40) | (Optional).

95701-10040-00

$1.51
