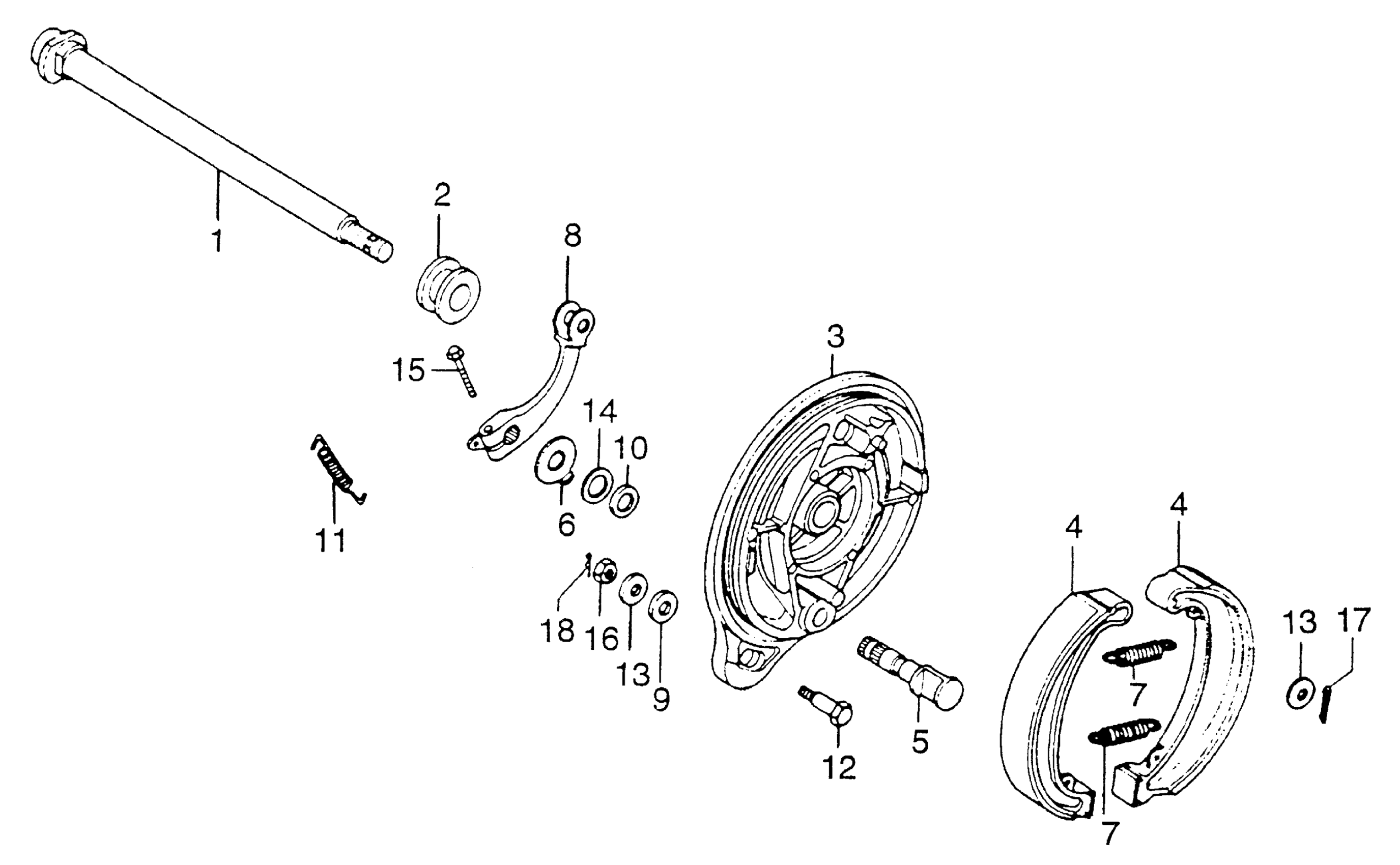

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 REAR BRAKE PANEL Diagram

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-385-000

Unavailable

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-357-010

Unavailable

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-385-010

Unavailable

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

CAM, RR. BRAKE (NOT AVAILABLE)

43141-329-770

Unavailable

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-329-770

Unavailable

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

ARM, RR. BRAKE (NOT AVAILABLE)

43410-385-010

Unavailable

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-357-000

Unavailable

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

WASHER (14MM)

90549-121-000

Unavailable

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49
