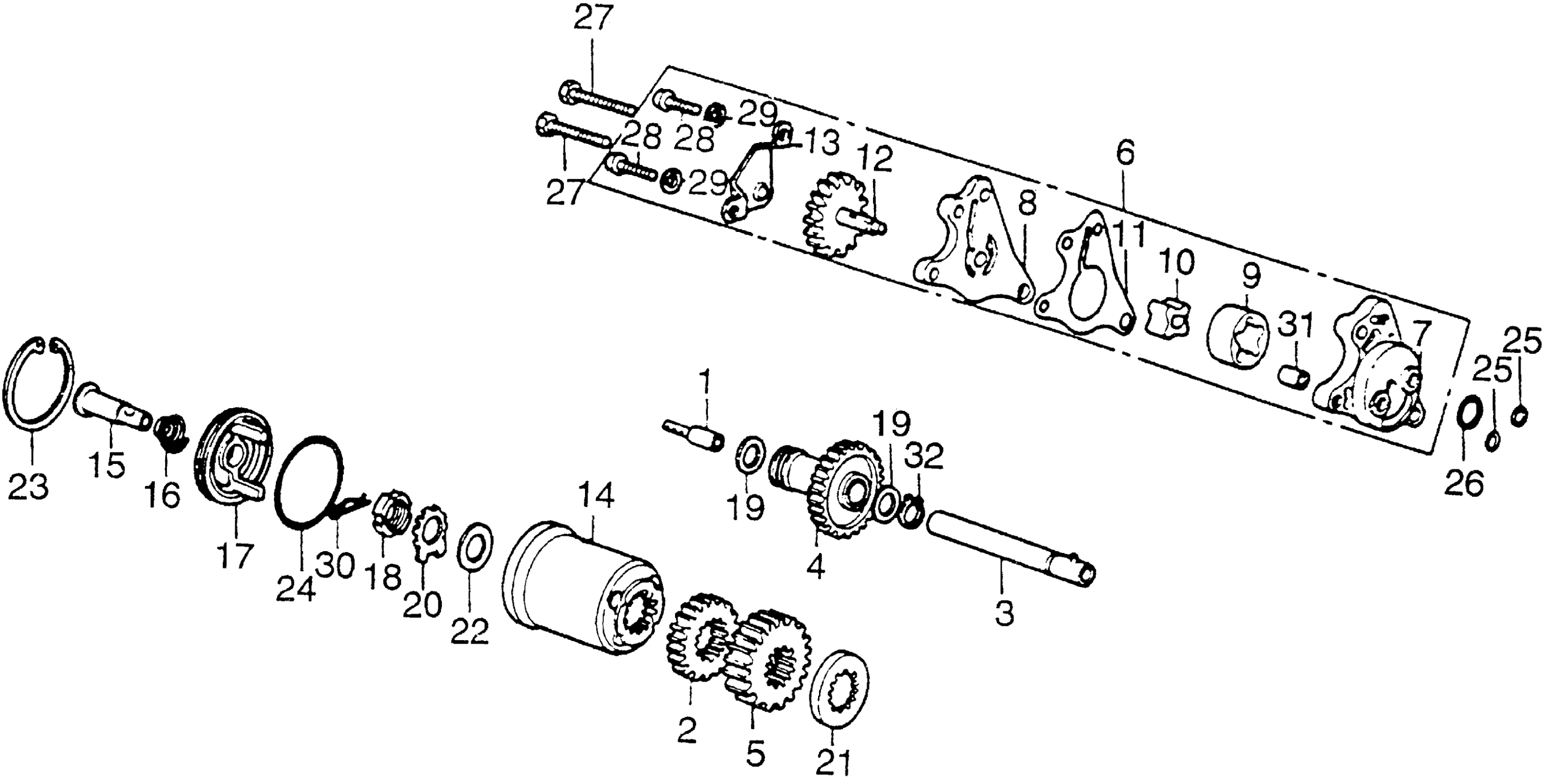

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 OIL PUMP + OIL FILTER Diagram

#

Description
Price

1

ORIFICE, OIL (NOT AVAILABLE)

11333-376-000

Unavailable

2

GEAR, TACHOMETER IDLER DRIVE (NOT AVAILABLE)

12401-356-010

Unavailable

3

SHAFT, TACHOMETER IDLER (NOT AVAILABLE)

12410-385-000

Unavailable

4

PINION, TACHOMETER

12420-329-700

Unavailable

5

GEAR, PRIMARY DRIVE

13611-356-010

Unavailable

6

PUMP ASSY., OIL (NOT AVAILABLE)

15100-356-000

Unavailable

7

BODY, OIL PUMP

15111-329-010

Unavailable

8

COVER, OIL PUMP (NOT AVAILABLE)

15121-356-000

Unavailable

9

ROTOR, OIL PUMP (OUTER)

15122-329-010

$20.59

10

ROTOR, OIL PUMP (INNER)

15123-329-010

$17.36

11

GASKET, OIL PUMP COVER (NOT AVAILABLE)

15129-329-010

Unavailable

12

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15131-356-000

Unavailable

13

PLATE, OIL PUMP SETTING (NOT AVAILABLE)

15197-329-000

Unavailable

14

ROTOR, OIL FILTER

15441-362-000

Unavailable

15

THROUGH, OIL (NOT AVAILABLE)

15445-356-000

Unavailable

16

SPRING, OIL THROUGH (NOT AVAILABLE)

15446-356-000

Unavailable

17

CAP, OIL FILTER (NOT AVAILABLE)

15450-329-000

Unavailable

18

NUT, LOCK (16MM)

90231-KCS-651

$4.21

18

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

19

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

20

WASHER, SPRING (16MM)

90431-292-000

$2.92

21

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90456-356-010

Unavailable

22

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

23

CIRCLIP (INNER) (45MM)

90604-292-000

Unavailable

24

O-RING (39X1.8) (NOT AVAILABLE)

91310-329-000

Unavailable

25

O-RING (7X1.7)

91312-107-000

$3.18

26

O-RING (13X2.5)

91319-300-000

$5.07

27

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

27

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

28

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

28

SCREW, PAN (6X18)

93500-06018-0A

$1.49

28

SCREW, PAN (6X18) This part replaces 93500-06018-10.

93500-06018-0A

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

PIN, LOCK (8MM)

94251-08000

$1.49

31

PIN A, DOWEL (8X10)

94301-08100

$2.25

32

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
