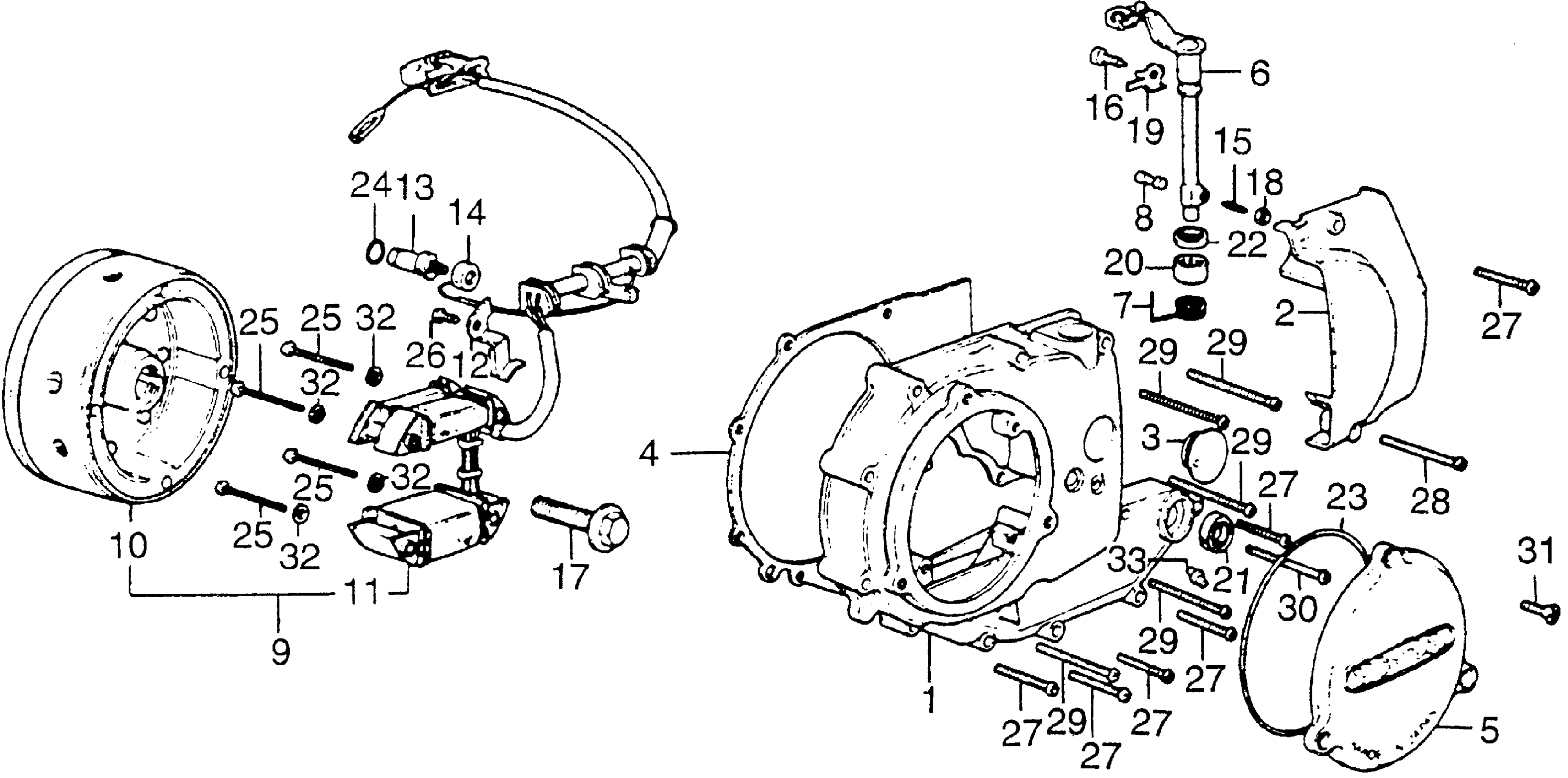

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-385-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-385-000

Unavailable

3

CAP, CLUTCH ADJ. HOLE

11391-329-000

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-329-000.

11395-329-306

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-329-306

Unavailable

5

COVER, ALTERNATOR (NOT AVAILABLE)

11431-376-000

Unavailable

6

LEVER, CLUTCH (NOT AVAILABLE)

22810-356-000

Unavailable

7

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-329-000

Unavailable

8

PIECE, LIFTER ROD END (NOT AVAILABLE)

22841-329-000

Unavailable

9

ALTERNATOR ASSY.

31100-329-774

Unavailable

10

FLYWHEEL (NOT AVAILABLE)

31121-329-774

Unavailable

11

STATOR ASSY. (DENSO) (NOT AVAILABLE)

31141-329-004

Unavailable

12

CLAMP, CABLE (NOT AVAILABLE)

32111-329-000

Unavailable

13

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

14

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-300

Unavailable

15

SCREW, TAPPET ADJ.

90012-333-000

$2.75

16

BOLT, KNOCK (6MM) (NOT AVAILABLE)

90017-329-000

Unavailable

17

BOLT, FLANGE (12X40) (NOT AVAILABLE)

90023-329-000

Unavailable

18

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

18

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

19

WASHER, LOCK (6MM) (NOT AVAILABLE)

90434-329-000

Unavailable

20

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

21

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

21

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-006.

91206-286-013

$3.01

21

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

22

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

22

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

23

O-RING (109X3) (NOT AVAILABLE)

91301-329-000

Unavailable

24

O-RING (7X1.7)

91312-107-000

$3.18

25

SCREW, PAN (5X45)

93500-05045-0A

$1.49

26

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

26

SCREW, PAN (6X12)

93500-06012-0A

$1.49

26

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

27

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

27

SCREW, PAN (6X32)

93500-06032-0A

$1.49

28

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

28

SCREW, PAN (6X50)

93500-06050-0A

$1.49

29

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

29

SCREW, PAN (6X55)

93500-06055-0A

$1.49

30

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

30

SCREW, PAN (6X60)

93500-06060-0A

$1.49

31

SCREW, OVAL (6X16)

93700-06016-0B

$1.49

31

SCREW, OVAL (6X16) This part replaces 93700-06016-02.

93700-06016-0B

$1.49

32

WASHER, PLAIN (5MM)

94101-05000

$1.49

33

FITTING, GREASE (A.45)

96201-30001

$1.49
