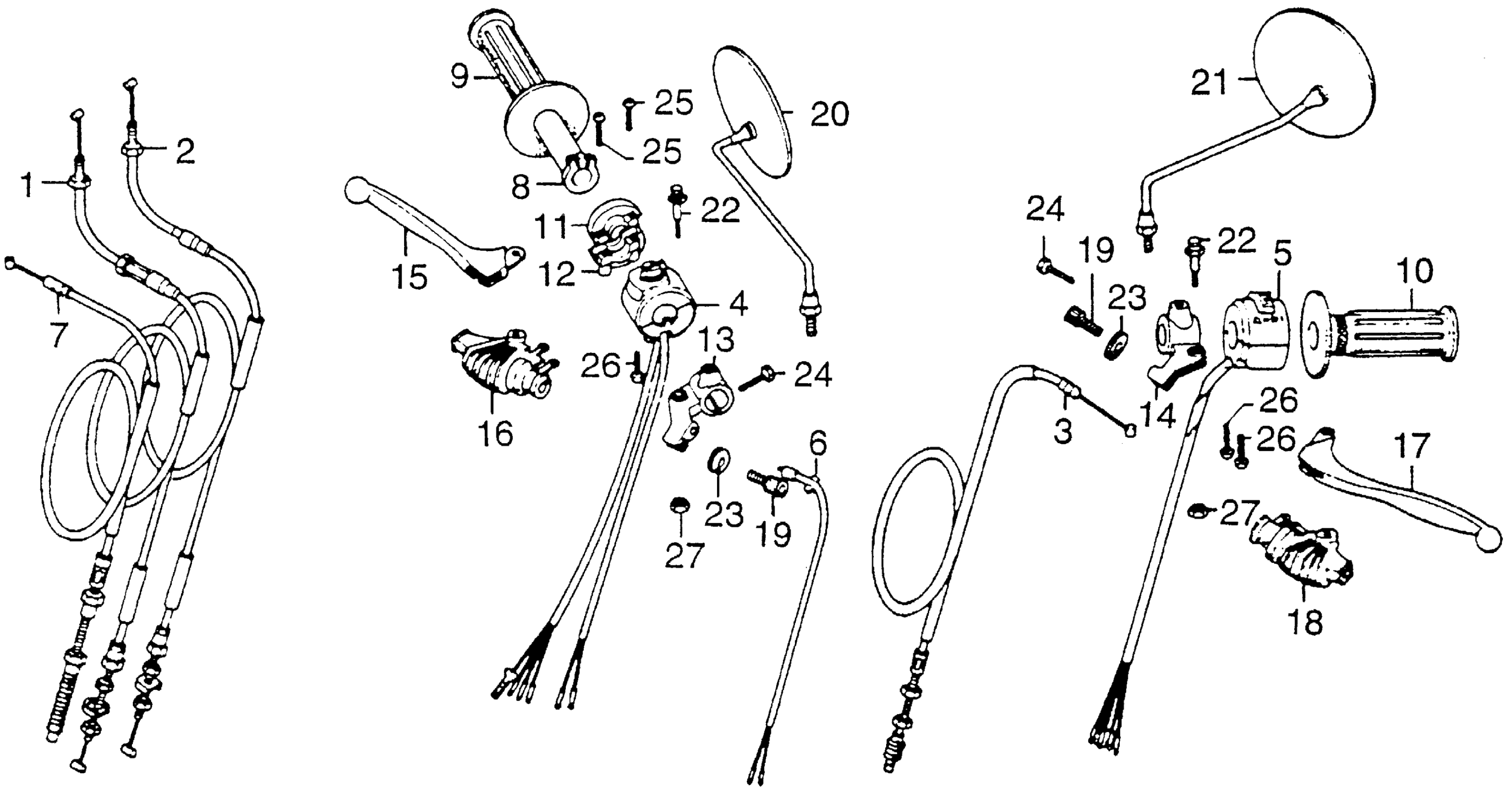

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 HANDLE SWITCH + LEVER Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-385-000

Unavailable

2

CABLE B, THROTTLE

17920-356-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-385-000.

17920-356-000

Unavailable

3

CABLE, CLUTCH

22870-KB4-000

$37.61

3

CABLE, CLUTCH This part replaces 22870-356-000.

22870-KB4-000

$37.61

4

SWITCH ASSY., STOP (NOT AVAILABLE) This part replaces 35130-385-670.

35130-437-711

Unavailable

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-437-711

Unavailable

5

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

6

SWITCH, FR. STOP

35330-385-000

$20.36

6

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35350-197-000.

35340-GAN-620

$19.20

7

CABLE, FR. BRAKE

45450-329-010

Unavailable

8

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-385-000

Unavailable

9

GRIP, R. HANDLEBAR

53165-116-670

$12.17

10

GRIP, L. HANDLEBAR

53166-116-670

$12.19

11

HOUSING, THROTTLE (UPPER)

53167-385-000

Unavailable

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-385-000.

53168-428-000

Unavailable

12

HOUSING, THROTTLE (LOWER)

53168-428-000

Unavailable

13

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

14

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

15

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$31.02

15

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

16

COVER, R. CONTROL LEVER

53176-329-000

$12.41

17

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

18

COVER, L. CONTROL LEVER

53179-329-000

$15.07

19

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

20

MIRROR, R. | Use up to Frame SN 4015494 This part replaces 88100-333-004.

88110-333-611

$37.14

20

MIRROR, R. | Use up to Frame SN 4015494 This part replaces 88100-333-610.

88110-333-611

$37.14

20

MIRROR, R. | Use up to Frame SN 4015494 This part replaces 88100-371-980.

88110-333-611

$37.14

20

MIRROR, R.

88110-333-611

$37.14

21

MIRROR, L. | Use up to Frame SN 4015494 This part replaces 88120-333-610.

88120-333-611

Unavailable

21

MIRROR, L. | Use up to Frame SN 4015494

88120-333-611

Unavailable

21

MIRROR, L.

88120-333-611

Unavailable

22

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

23

NUT, FIXING

90321-315-670

$7.31

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

24

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$1.49

24

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$1.49

24

BOLT, HEX. (6X25)

93101-06025-0A

$1.49

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

SCREW, PAN (5X28)

93500-05028-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
