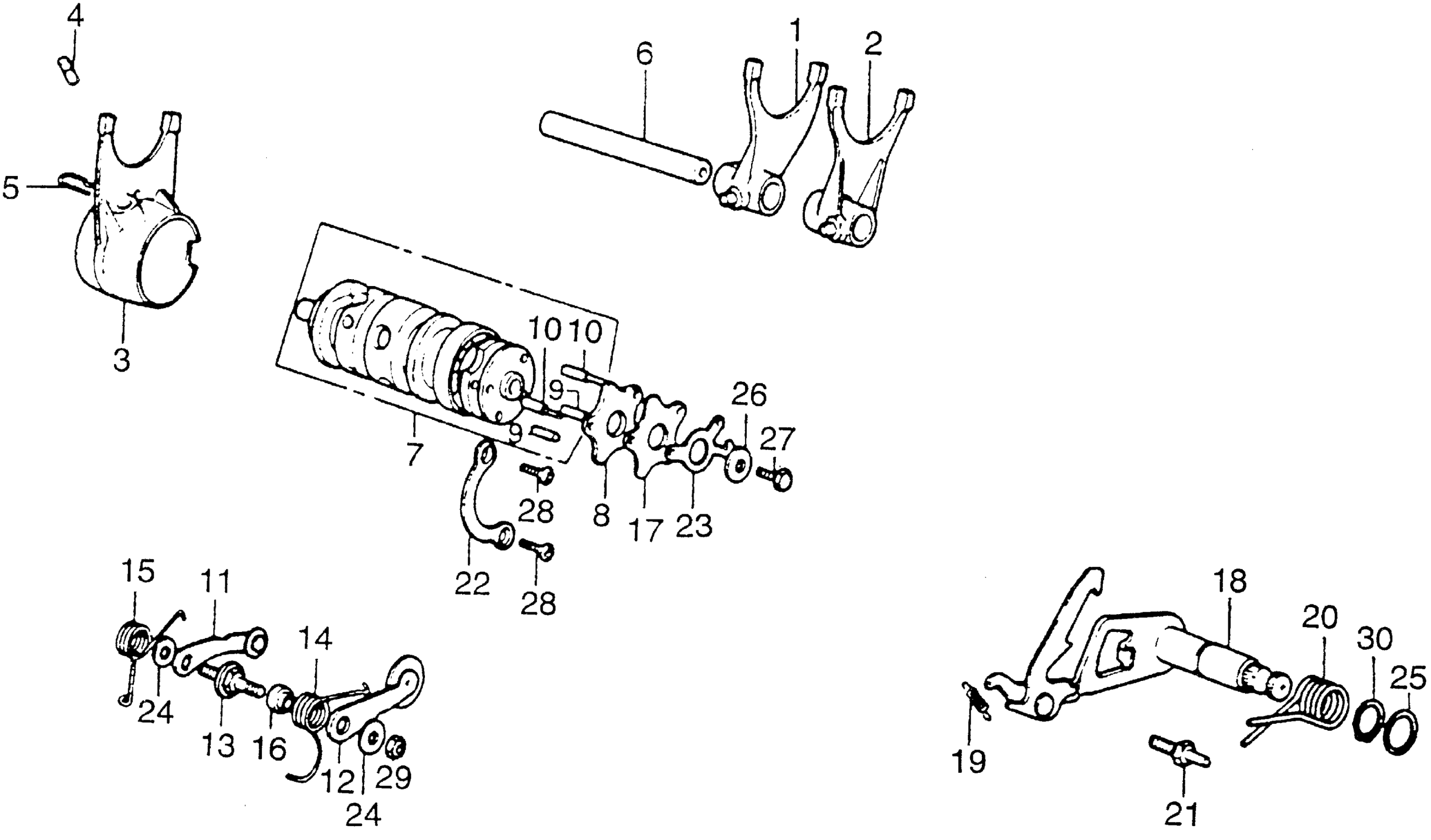

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 GEARSHIFT + DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-376-010

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24212-376-000

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-376-000

Unavailable

4

PIN, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24261-356-000

Unavailable

5

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

6

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24265-356-000

Unavailable

7

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-329-010

Unavailable

8

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24305-329-300

Unavailable

9

PIN, GEARSHIFT DRUM (NOT AVAILABLE)

24306-235-300

Unavailable

10

PIN, GEARSHIFT DRUM (4MM) (NOT AVAILABLE)

24308-329-310

Unavailable

11

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24420-329-000

Unavailable

12

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-329-030

Unavailable

13

SHAFT, SHIFT DRUM STOPPER (NOT AVAILABLE)

24434-329-010

Unavailable

14

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-329-010

Unavailable

15

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24436-329-010

Unavailable

16

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24437-329-010

Unavailable

17

PLATE, ROLLER STOPPER (NOT AVAILABLE)

24439-329-010

Unavailable

18

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-329-000

$119.92

19

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-329-010

Unavailable

20

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-329-000

Unavailable

21

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-300-000

Unavailable

22

PLATE, BEARING SET (NOT AVAILABLE)

24710-329-000

Unavailable

23

ROTOR, NEUTRAL SWITCH

35753-329-010

Unavailable

24

WASHER, SHIFT DRUM STOPPER

90453-292-010

$5.03

25

WASHER (14MM)

90451-155-000

$3.78

25

WASHER (14MM) This part replaces 90454-500-000.

90451-155-000

$3.78

26

WASHER (6X19)

90481-259-000

Unavailable

27

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

28

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

28

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49
