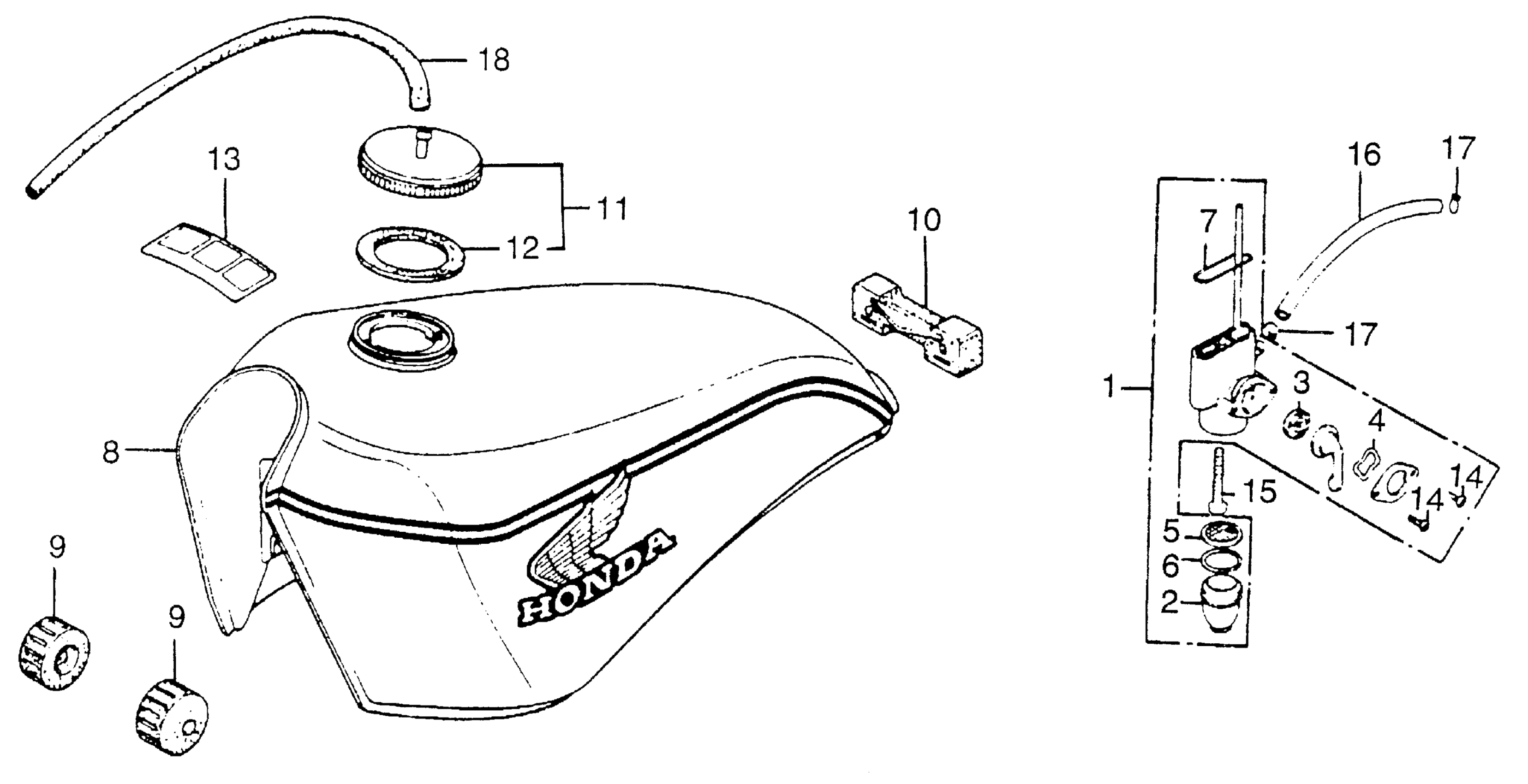

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-356-700

Unavailable

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

Unavailable

3

GASKET, VALVE

16957-ZE1-812

Unavailable

4

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.06

4

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.06

4

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.06

4

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.06

5

SCREEN, FUEL STRAINER

16957-028-000

$14.91

6

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

6

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.47

6

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.47

6

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.47

7

O-RING (23.8X2.4)

16997-273-000

$4.31

8

TANK, FUEL *PB3CC* (CANDY SAPPHIRE BLUE CUSTOM) (NOT AVAILABLE)

17510-386-670ZA

Unavailable

9

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.02

9

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.02

10

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-385-000

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-373-010.

17620-428-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-373-020.

17620-428-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-428-010.

17620-428-020

Unavailable

11

CAP, FUEL FILLER

17620-428-020

Unavailable

12

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

Unavailable

12

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

Unavailable

12

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

Unavailable

13

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$3.86

13

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$3.86

13

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$3.86

14

SCREW, PAN (3X6)

93500-03006-0A

$0.90

15

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.41

15

SCREW, PAN (6X40)

93500-06040-0A

$1.41

16

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-60M

$44.94

17

CLIP, TUBE (B8)

95002-02080

$1.62

18

BULK HOSE, VACUUM (5X3000) (5X350)

95005-50003-30M

Unavailable
