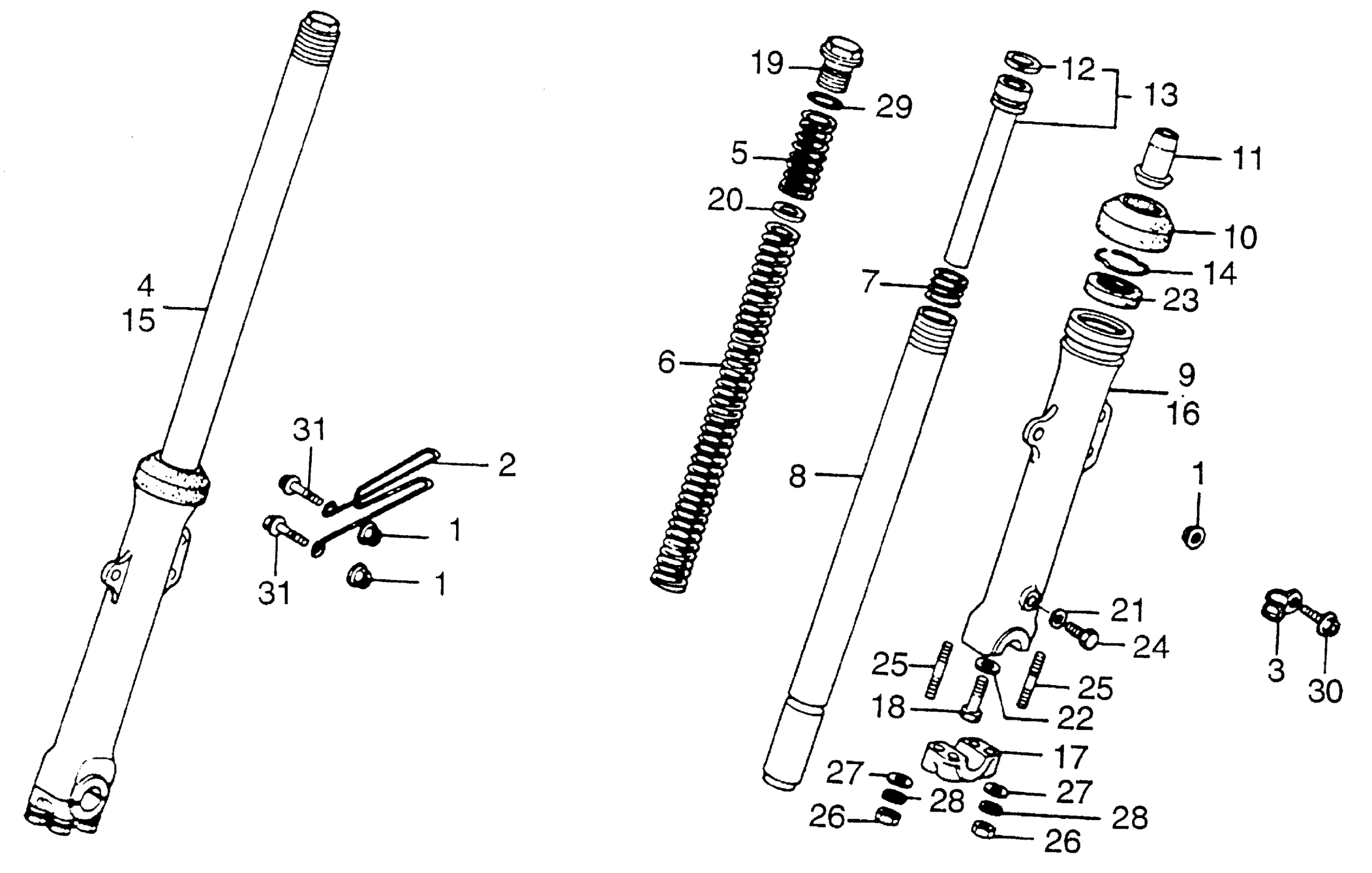

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 FRONT FORK Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-329-000

Unavailable

3

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

4

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-385-003

Unavailable

5

SPRING A, FR. FORK

51401-356-000

Unavailable

6

SPRING B, FR. FORK (NOT AVAILABLE)

51402-385-000

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

PIPE, FORK (NOT AVAILABLE)

51420-356-000

Unavailable

9

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-358-771

Unavailable

10

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

10

DUST SEAL, FR. FORK

91254-435-003

$15.40

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-357-000

Unavailable

12

RING, PISTON

51437-329-010

$7.14

13

SEAT (LOWER) (SHOWA)

51440-385-003

Unavailable

14

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

14

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

15

FORK ASSY., L. FR. (SHOWA)

51500-385-003

Unavailable

16

CASE, L. FR. FORK (LOWER)

51521-358-771

Unavailable

17

HOLDER, FR. AXLE

51634-340-000

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

BOLT, FR. FORK

90123-300-000

$47.61

20

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

24

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

24

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

25

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

25

BOLT, STUD (8X50)

92900-08028-3B

$1.59

26

NUT, HEX. (8MM)

94030-08000

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

O-RING (23X2.8)

94608-50000

$1.49

30

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

30

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

31

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

31

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
