- XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184
CRANKSHAFT + PISTON

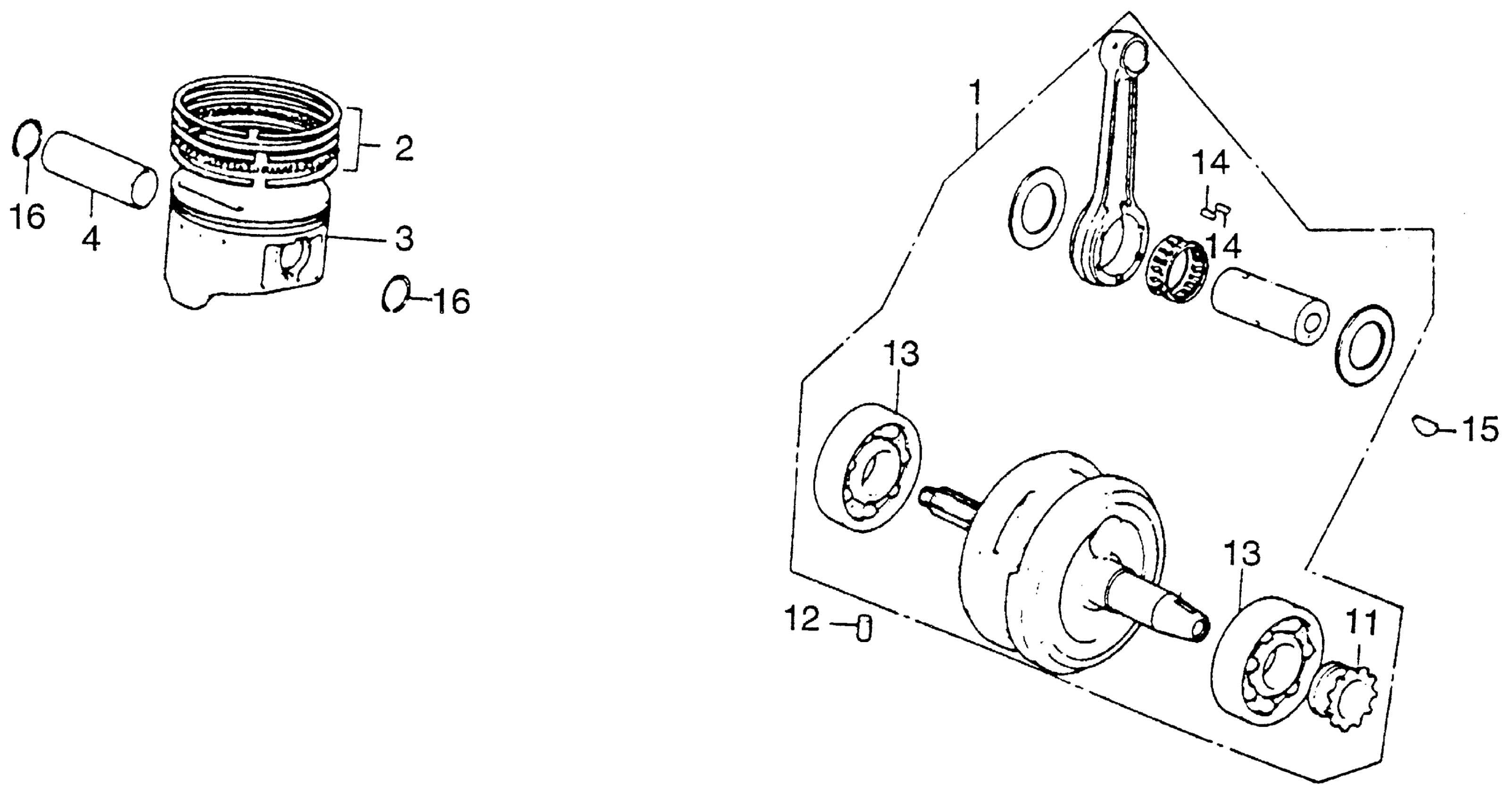

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 CRANKSHAFT + PISTON Diagram
#
Description
Price
1
CRANKSHAFT (NOT AVAILABLE)
13000-376-000
Unavailable
2
RING SET, PISTON (STD) (TEIKOKU)
13011-329-005
Unavailable
2
RING SET, PISTON (OS 0.25) (TEIKOKU) | (Optional).
13021-329-005
Unavailable
2
RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional).
13031-329-005
Unavailable
2
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13041-329-005
Unavailable
2
RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13051-329-005
Unavailable
3
PISTON (STD)
13101-329-000
Unavailable
3
PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).
13102-329-000
Unavailable
3
PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).
13103-329-000
Unavailable
3
PISTON (0.75) (NOT AVAILABLE) | (Optional).
13104-329-000
Unavailable
3
PISTON (1.00) (NOT AVAILABLE) | (Optional).
13105-329-000
Unavailable
4
PIN, PISTON This part replaces 13111-329-010.
13111-471-000
Unavailable
4
PIN, PISTON This part replaces 13111-428-000.
13111-471-000
Unavailable
4
PIN, PISTON
13111-471-000
Unavailable
11
SPROCKET, TIMING
14312-356-300
Unavailable
12
PIN, DOWEL (7X12) (NOT AVAILABLE)
90708-286-000
Unavailable
13
BEARING, SPECIAL BALL (6306) (NACHI) (NOT AVAILABLE)
91001-356-003
Unavailable
14
ROLLER (3.5X13.8) (+0 -0.002) (NOT AVAILABLE)
91105-329-300
Unavailable
