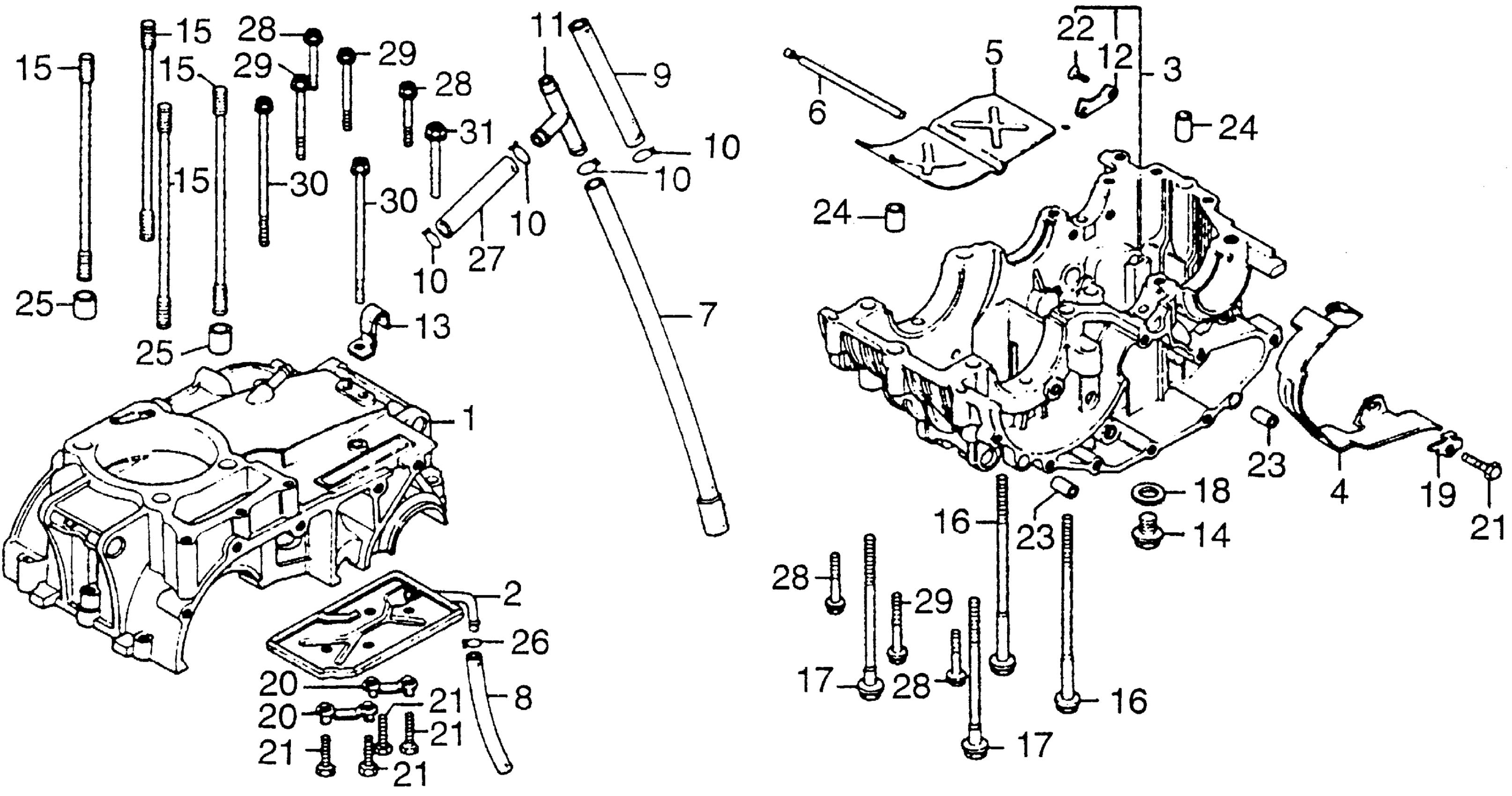

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) (NOT AVAILABLE)

11100-386-000

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-356-000

Unavailable

3

CRANKCASE (LOWER)

11200-386-000

Unavailable

4

PROTECTOR, CASE (NOT AVAILABLE)

11353-356-000

Unavailable

5

SEPARATOR, OIL (NOT AVAILABLE)

11761-356-000

Unavailable

6

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11762-329-000

Unavailable

7

TUBE, OIL DRAIN (NOT AVAILABLE)

15706-385-000

Unavailable

8

TUBE, OIL RETURN (NOT AVAILABLE)

15713-356-000

Unavailable

9

TUBE, BREATHER (NOT AVAILABLE)

15771-356-000

Unavailable

10

CLIP, BREATHER TUBE

15772-292-010

$2.92

11

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

12

PLATE, IDLE GEAR SET (NOT AVAILABLE) | Use up to Engine SN 1019921

28222-385-000

Unavailable

12

PLATE, IDLE GEAR SET (NOT AVAILABLE) | Use from Engine SN 1019922

28222-385-010

Unavailable

13

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32112-329-000

Unavailable

14

BOLT, DRAIN VALVE

90013-230-000

Unavailable

15

BOLT, CYLINDER STUD (10MM)

90031-329-000

Unavailable

16

BOLT, UBS (8X160) (NOT AVAILABLE)

90044-356-000

Unavailable

17

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

18

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

18

GASKET, DRAIN

90407-367-690

$4.15

19

WASHER, LOCK (6MM) (NOT AVAILABLE)

90434-329-000

Unavailable

20

WASHER (6MM) (NOT AVAILABLE)

90484-329-000

Unavailable

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

22

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

23

PIN A, DOWEL (8X14)

94301-08140

$2.25

24

PIN A, DOWEL (10X14)

94301-10140

$2.28

25

PIN, KNOCK (12X16)

94301-12160

$2.27

26

CLIP, TUBE (C11)

95002-70000

$1.56

27

TUBE (12X105) (NOT AVAILABLE)

95005-92105-30

Unavailable

28

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

28

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

29

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

29

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

30

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

30

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

31

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

31

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
