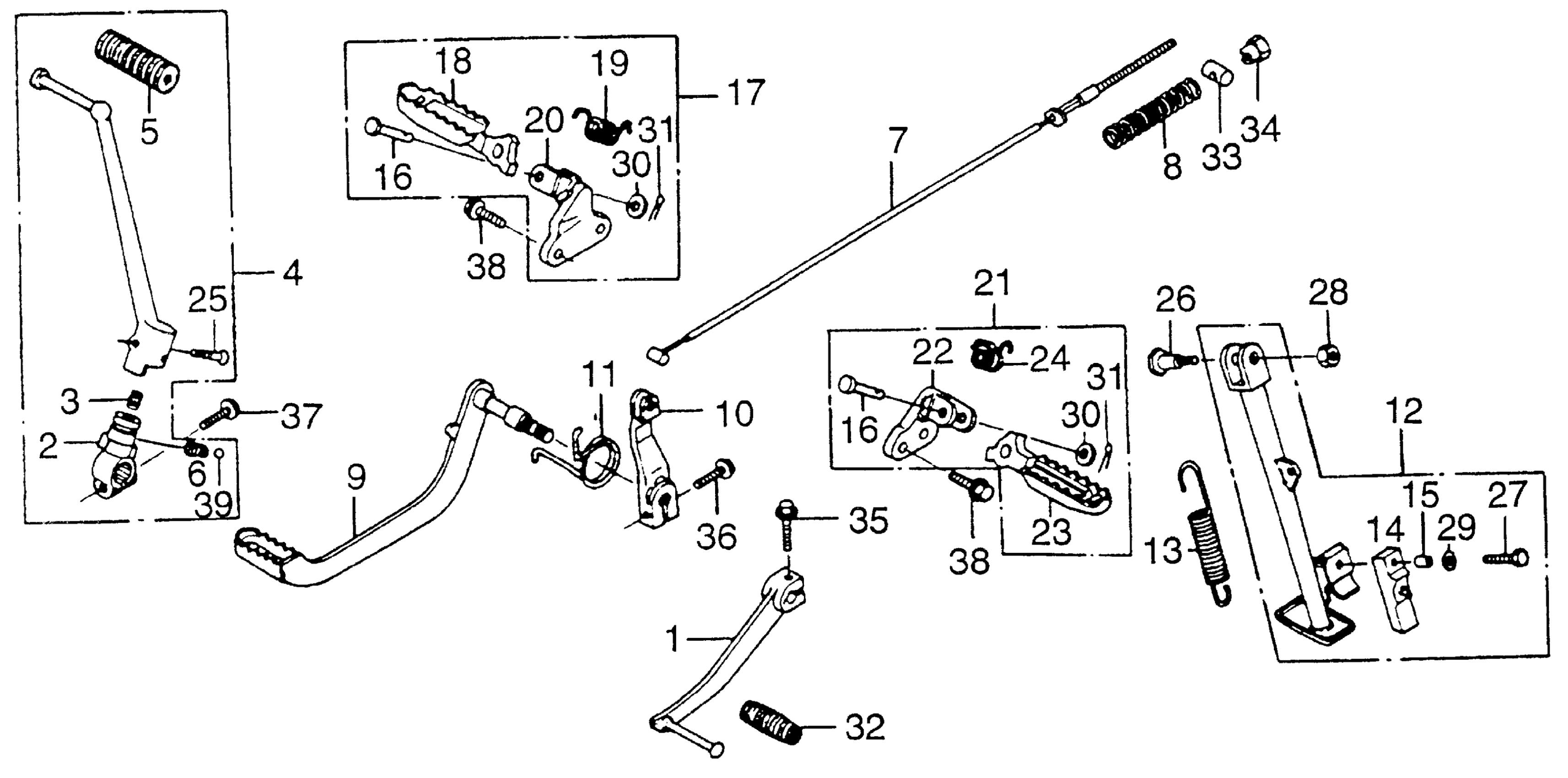

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 CHANGE PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-385-000.

24701-385-000

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-385-000

Unavailable

2

JOINT, KICK ARM (NOT AVAILABLE)

28241-385-300

Unavailable

3

SPRING, KICK STARTER KNUCKLE

28292-312-310

Unavailable

4

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-385-000

Unavailable

5

RUBBER, KICK STARTER

28311-329-000

$5.54

6

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

7

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-385-000

Unavailable

8

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE)

46500-385-000

Unavailable

10

ARM, MIDDLE (NOT AVAILABLE)

46501-385-000

Unavailable

11

SPRING, RR. BRAKE (NOT AVAILABLE)

46502-385-000

Unavailable

12

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-385-670

Unavailable

13

SPRING, SIDE STAND

50542-310-010

Unavailable

14

RUBBER, STAND

50548-356-700

$10.50

15

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

16

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

16

PIN, STEP BAR JOINT

50603-033-010

$3.30

17

ARM ASSY., R. STEP (NOT AVAILABLE)

50610-385-000

Unavailable

18

STEP, R. (NOT AVAILABLE)

50616-356-000

Unavailable

19

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

19

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

20

BRACKET, R. STEP ARM (NOT AVAILABLE)

50618-385-000

Unavailable

21

ARM ASSY., L. FOOTPEG

50620-385-000

Unavailable

22

BRACKET, L. STEP ARM (NOT AVAILABLE)

50624-385-000

Unavailable

23

STEP, L.

50642-356-000

Unavailable

24

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

24

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

25

BOLT, KICK ARM

90101-329-000

$3.67

26

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

27

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

27

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

RUBBER, SHIFT PEDAL

95011-40000

$1.49

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

35

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

35

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

36

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

36

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

37

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

37

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

38

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

38

BOLT, FLANGE (10X20)

95701-10020-00

$2.23

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
