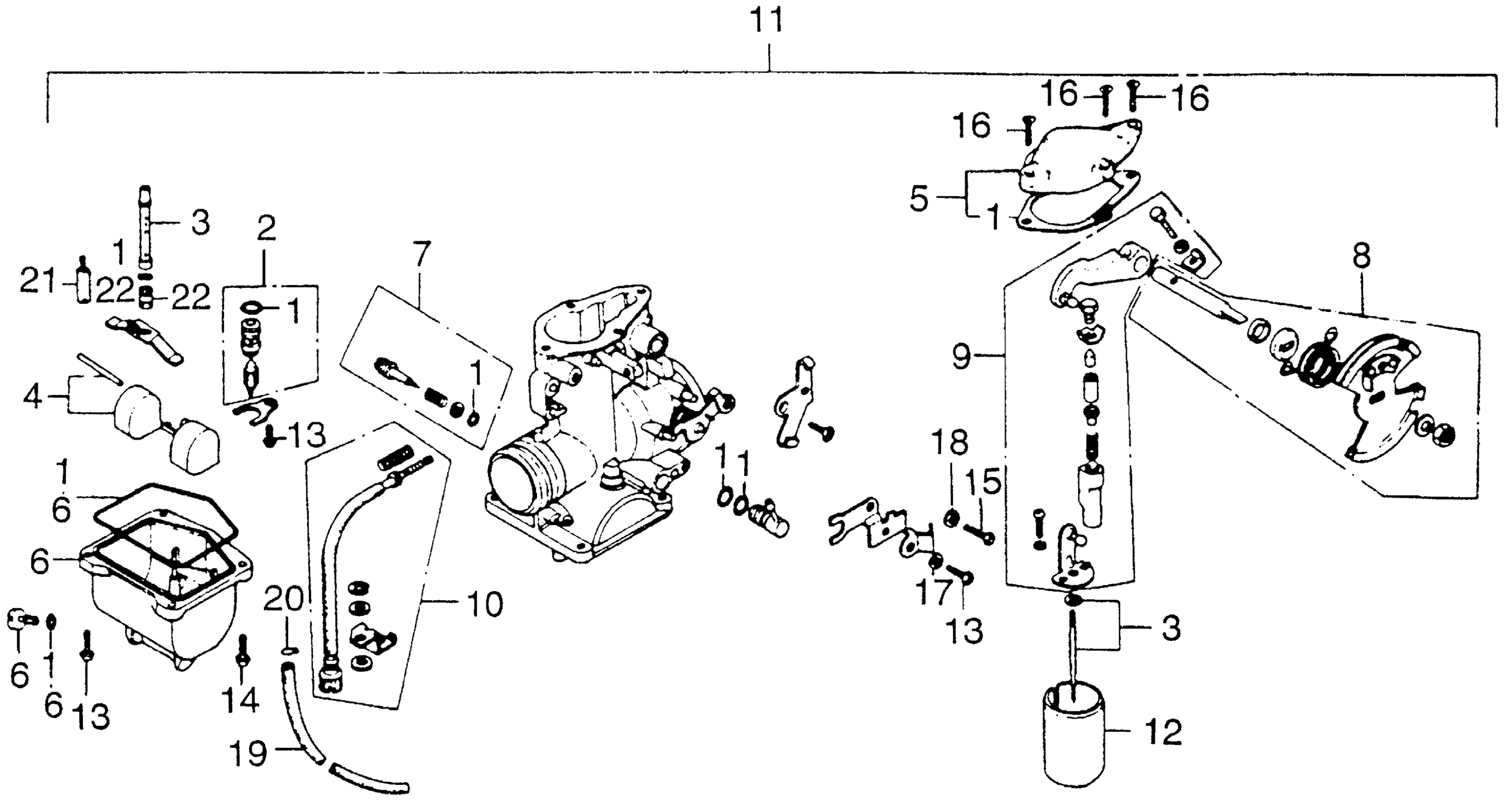

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-329-004.

16010-329-305

Unavailable

1

GASKET SET

16010-329-305

Unavailable

2

VALVE SET, FLOAT

16011-329-004

$44.11

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-386-004

Unavailable

4

FLOAT SET

16013-329-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-329-004

Unavailable

6

CHAMBER SET, FLOAT

16015-386-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-386-004

Unavailable

8

SHAFT SET, LINK (NOT AVAILABLE)

16017-386-004

Unavailable

9

ARM SET, LINK (NOT AVAILABLE)

16018-329-004

Unavailable

10

SCREW SET B (NOT AVAILABLE)

16028-386-004

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-386-004

Unavailable

12

VALVE, THROTTLE (NOT AVAILABLE)

16111-329-004

Unavailable

13

SCREW, PAN (4X10)

93500-04010-0H

$1.49

14

SCREW, PAN (4X12)

93500-04012-0H

$1.49

15

SCREW, PAN (5X12)

93500-05012-0H

$1.49

16

SCREW, OVAL (4X18) (NOT AVAILABLE)

93700-04018-0H

Unavailable

17

WASHER, SPRING (4MM)

94111-04000

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET, SLOW (#45) (NOT AVAILABLE)

99103-329-0450

Unavailable

22

JET SET, SECONDARY MAIN (#125) This part replaces 99201-329-1250.

99202-601-1250

Unavailable
