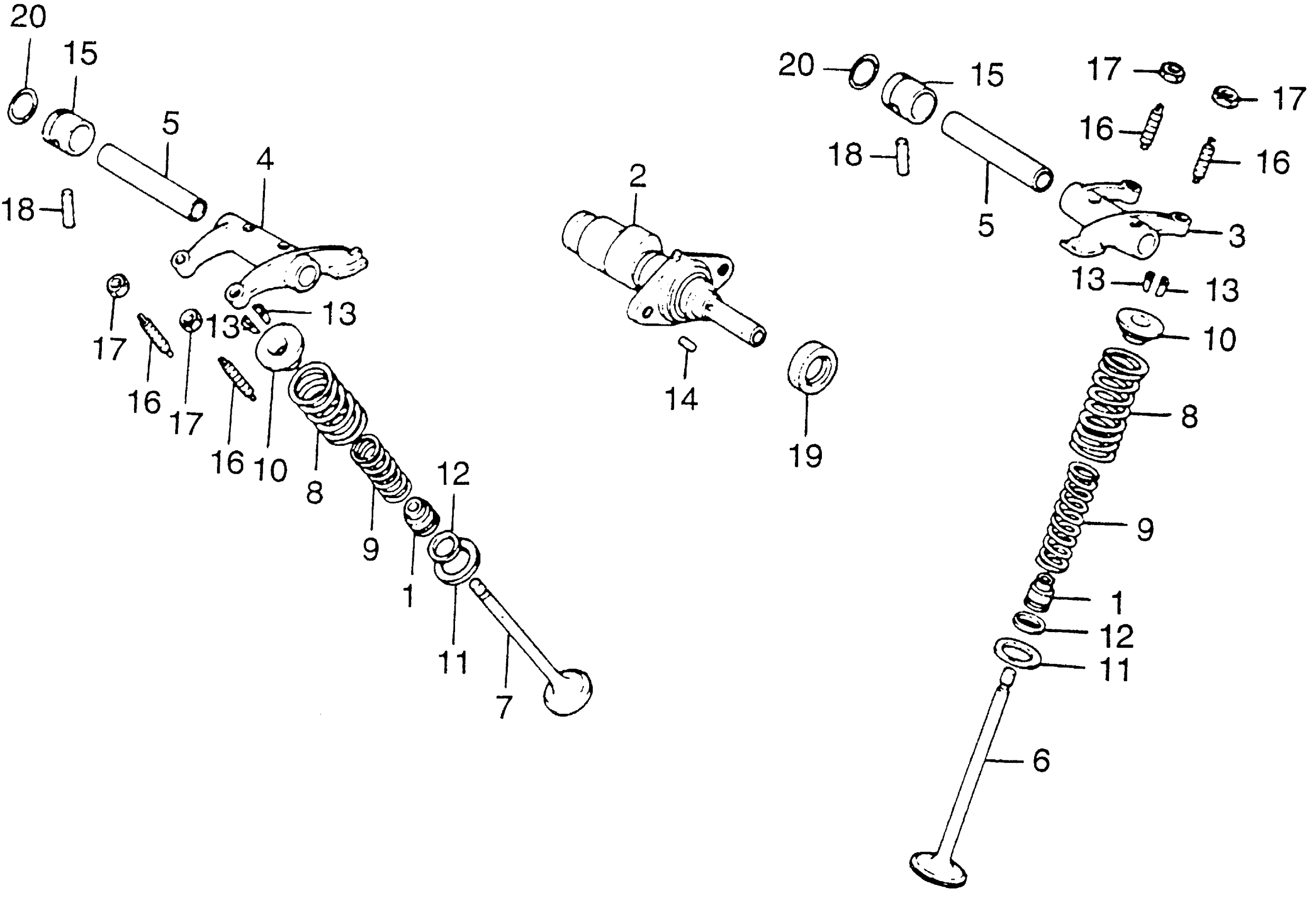

Honda XL250A (76) MOTORCYCLE, JPN, VIN# XL250-4000001 TO XL250-4012184 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

2

CAMSHAFT (NOT AVAILABLE)

14101-329-040

Unavailable

3

ARM, IN. VALVE ROCKER

14431-329-010

Unavailable

4

ARM, EX. VALVE ROCKER

14441-386-000

Unavailable

5

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE) | Use up to Engine SN 1020846

14451-385-000

Unavailable

6

VALVE, IN. (NOT AVAILABLE)

14711-329-010

Unavailable

7

VALVE, EX. (NOT AVAILABLE)

14721-329-000

Unavailable

8

SPRING, VALVE (OUTER) (NIPPON HATSUJO) (NOT AVAILABLE)

14751-329-005

Unavailable

9

SPRING, VALVE (INNER) (NIPPON HATSUJO) (NOT AVAILABLE)

14761-329-005

Unavailable

10

RETAINER, VALVE SPRING

14771-329-000

$5.93

11

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-329-000

Unavailable

12

SEAT, VALVE SPRING (INNER)

14776-MA6-000

Unavailable

12

SEAT, VALVE SPRING (INNER) This part replaces 14776-329-000.

14776-MA6-000

Unavailable

13

COTTER, VALVE (SANKO)

14781-107-003

$2.55

13

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

14

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

15

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE) | Use up to Engine SN 1020846

90011-356-000

Unavailable

16

SCREW, TAPPET ADJ.

90012-333-000

$2.75

17

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

17

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

18

PIN, DOWEL (6X20.5) (NOT AVAILABLE)

90708-329-000

Unavailable

19

OIL SEAL (15X27X7)

91207-329-003

Unavailable

20

O-RING (16X1.9)

91306-329-000

$2.92
