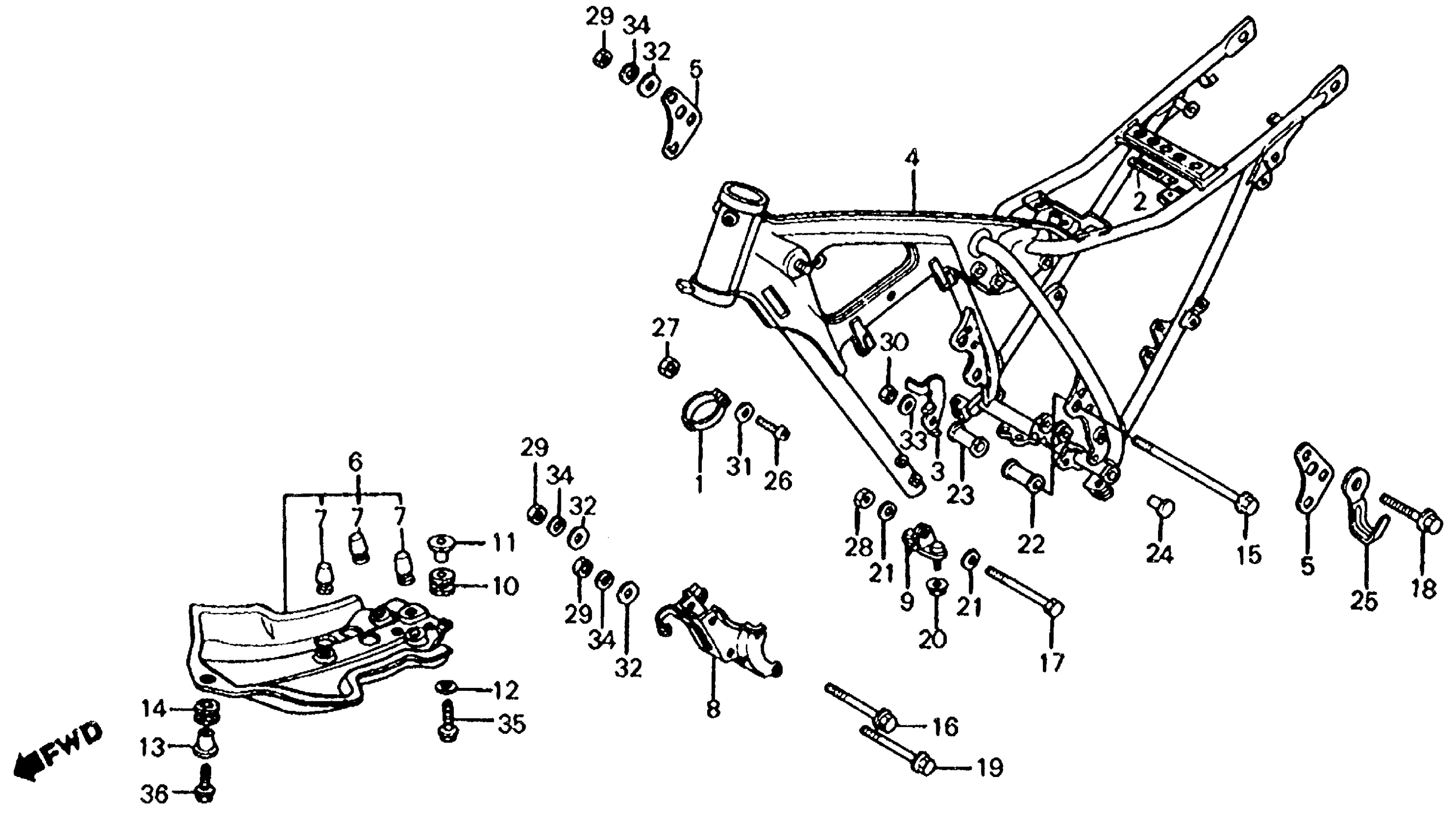

Honda XL200RAC (84) MOTORCYCLE, JPN, VIN# JH2MD061-EK100001 FRAME Diagram

#

Description
Price

1

CLAMP, TACHOMETER CABLE

22878-KB4-700

Unavailable

2

CLIP, WIRE HARNESS

32170-443-850

$5.05

2

CLAMP (NOT AVAILABLE)

91403-663-000

Unavailable

3

CLIP, DECOMPRESSION CABLE

45469-427-000

Unavailable

4

FRAME *R110* (MONZA RED) (NOT AVAILABLE)

50100-KG1-670ZA

Unavailable

5

PLATE, ENGINE HANGER (UPPER) *R110* (MONZA RED)

50138-KG1-000ZA

Unavailable

6

PLATE, SKID This part replaces 50351-KB9-000.

50351-KB9-710

Unavailable

7

RUBBER A, STOPPER

50352-428-000

$2.75

8

HANGER, FR. ENGINE *R110* (MONZA RED) (NOT AVAILABLE)

50353-KG1-000ZA

Unavailable

9

PLATE, ENGINE HANGER (LOWER) *R110* (MONZA RED) (NOT AVAILABLE)

50354-KG1-000ZA

Unavailable

10

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

11

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

12

WASHER, SEAT MOUNTING

77302-124-000

$3.23

13

COLLAR (8X15)

80101-KB7-000

$6.16

14

RUBBER, MOUNTING

80102-KB7-000

Unavailable

15

BOLT, HEX. (10X220)

90135-437-000

$13.45

16

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

17

BOLT, HEX. (10X115)

90155-437-000

Unavailable

18

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31

19

BOLT, HEX. (8X90)

90157-KA2-000

Unavailable

20

NUT, HEX. (8MM)

90309-357-000

$3.40

21

WASHER, PLAIN (10MM)

90401-437-000

$2.67

22

COLLAR, L. ENGINE DISTANCE

90742-KA2-680

Unavailable

23

COLLAR, R. ENGINE DISTANCE

90743-KA2-680

Unavailable

24

PLUG, STEP BRACKET (NOT AVAILABLE)

90802-436-000

Unavailable

25

CLIP, WIRE HARNESS

91405-689-000

$10.13

26

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

28

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

29

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (10MM)

94030-10000

$1.49

31

WASHER, PLAIN (5MM)

94101-05000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, PLAIN (10MM)

94101-10000

$1.49

34

WASHER, SPRING (8MM)

94111-08000

$1.49

35

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

35

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

36

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

36

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
