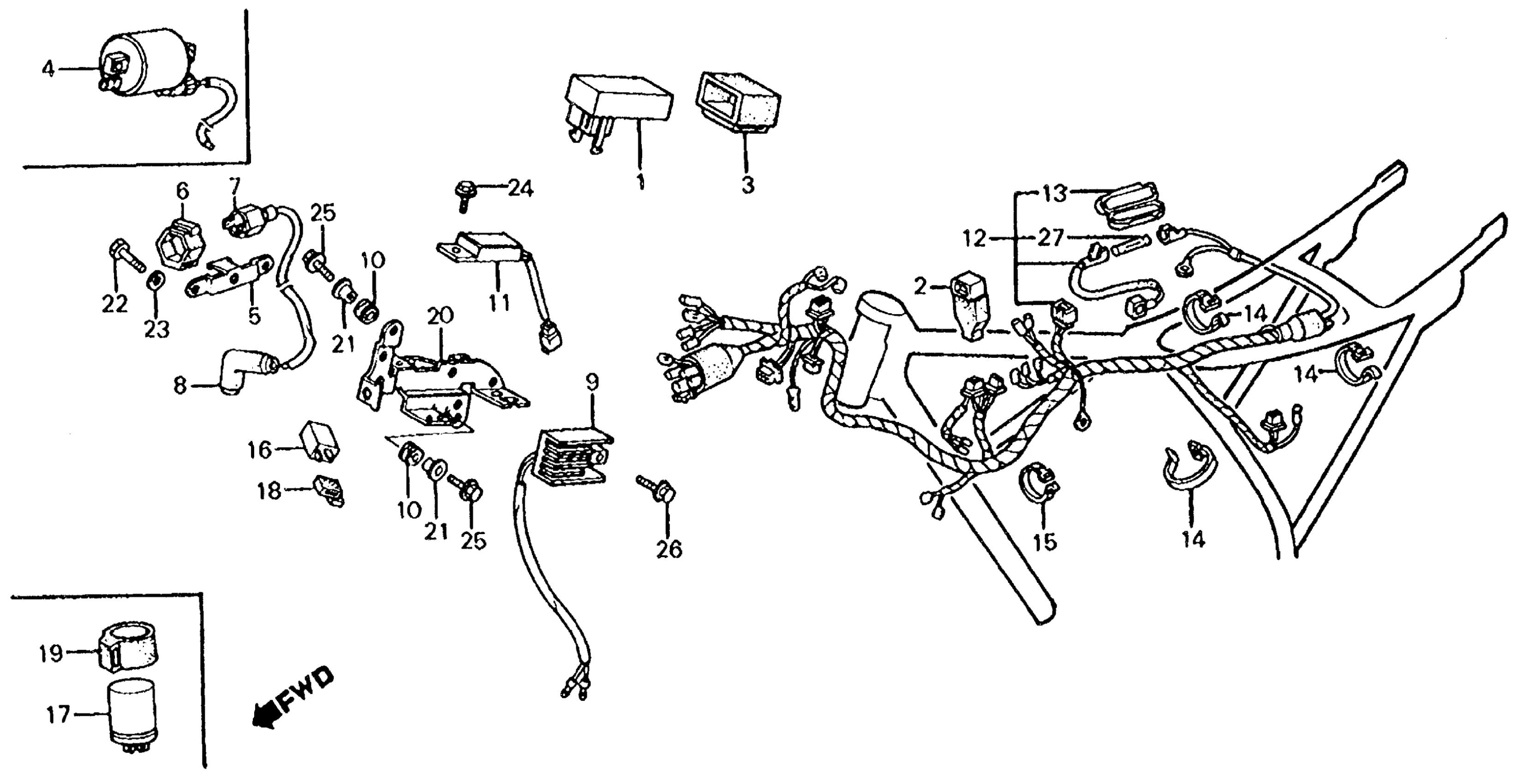

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 WIRE HARNESS + IGNITION COIL + C.D.I. UNIT Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI)

30401-KE4-651

Unavailable

2

COVER, C.D.I. CONNECTOR (NOT AVAILABLE)

30402-KE4-650

Unavailable

3

SUSPENSION, IGNITION CONTROL MODULE (CDI)

30406-471-000

$8.69

5

STAY, IGNITION COIL (NOT AVAILABLE)

30501-KG1-770

Unavailable

6

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

6

SUSPENSION, IGNITION COIL (NOT AVAILABLE)

30506-VM6-000

Unavailable

7

COIL, IGNITION This part replaces 30510-HA5-000.

30510-KT0-405

$77.33

7

COIL, IGNITION This part replaces 30510-KG1-770.

30510-KT0-405

$77.33

7

COIL, IGNITION

30510-KT0-405

$77.33

8

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.32

8

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

9

REGULATOR This part replaces 31400-KB9-000.

31400-KB9-680

Unavailable

10

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

11

RECTIFIER, REGULATOR (NOT AVAILABLE) This part replaces 31600-MC4-000.

31600-KG0-000

Unavailable

12

WIRE HARNESS (NOT AVAILABLE)

32100-KG1-770

Unavailable

13

CASE, FUSE CONNECTOR

32111-230-000

$4.28

14

BAND, WIRE (NOT AVAILABLE)

32161-MA0-000

Unavailable

15

BAND A2, CABLE This part replaces 32161-473-000.

95014-61200

$2.33

15

BAND A2, WIRE

95014-61200

$2.33

16

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

16

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

16

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

18

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

20

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50301-KB9-000

Unavailable

21

COLLAR, ELECTRIC PLATE

50302-KG1-000

Unavailable

22

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

22

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

22

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

23

WASHER, SPRING (5MM)

94111-05000

$1.49

24

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

24

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

25

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

26

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

26

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

27

FUSE A (10A)

98200-11000

$1.80
