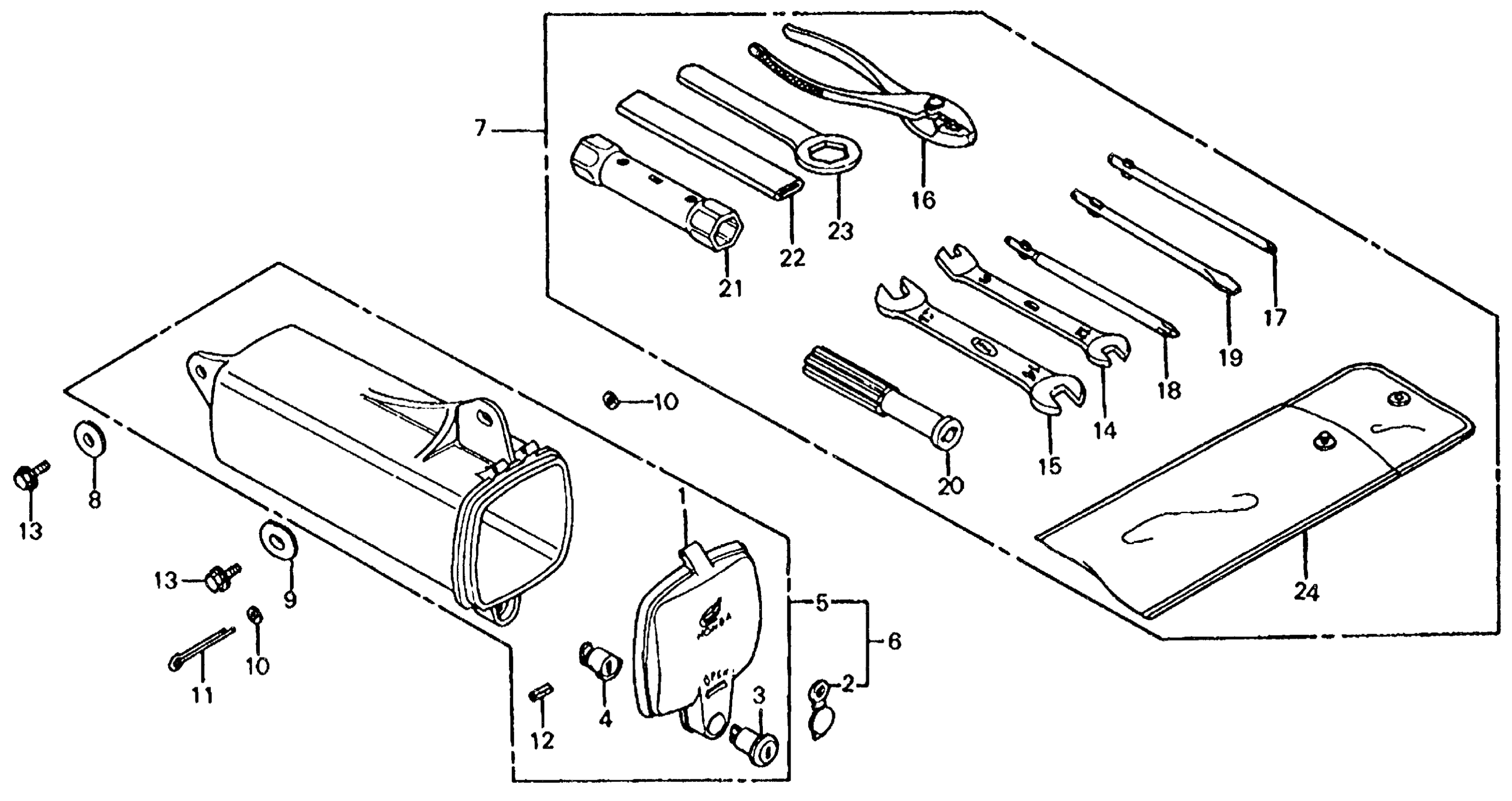

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 TOOLS Diagram

#

Description
Price

1

CAP, TOOL BOX

83504-KB9-000

Unavailable

2

CAP, KEY BODY (NOT AVAILABLE)

83505-KG1-770

Unavailable

3

BODY, KEY (NOT AVAILABLE)

83507-KG1-770

Unavailable

4

STOPPER, KEY BODY

83508-KBG-000

$2.64

4

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.64

6

BOX ASSY., TOOL (NOT AVAILABLE)

83510-KG1-770

Unavailable

7

TOOL SET

89010-KB9-000

Unavailable

8

WASHER (6X20)

90512-300-000

$2.87

9

WASHER (6X9)

90513-323-000

$1.67

10

WASHER, PLAIN (3MM)

94101-03000

$0.59

11

PIN, SPLIT (3.0X45)

94201-30450

$0.94

12

PIN, SPRING (2X14)

94305-20141

$0.86

13

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

13

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

14

SPANNER (10X12)

99001-10120

$4.36

15

SPANNER (14X17)

99001-14170

$6.96

16

PLIERS (135) (KOWA)

89210-GBJ-J10

$12.19

16

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$12.19

17

DRIVER 1, PLUS SCREW (NO.2)

99003-10000

$3.05

18

DRIVER 2, PLUS SCREW (NO.3)

99003-20000

$3.05

19

DRIVER 3, MINUS SCREW (NO.2)

99003-30000

$3.05

20

GRIP, SCREW DRIVER

99003-50000

$3.05

21

WRENCH, BOX (P18X19)

99004-18190

$3.08

22

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.76

23

WRENCH, EYE (24MM)

99006-24000

$3.88

24

BAG, TOOL (160MM)

99008-01600

$2.12
