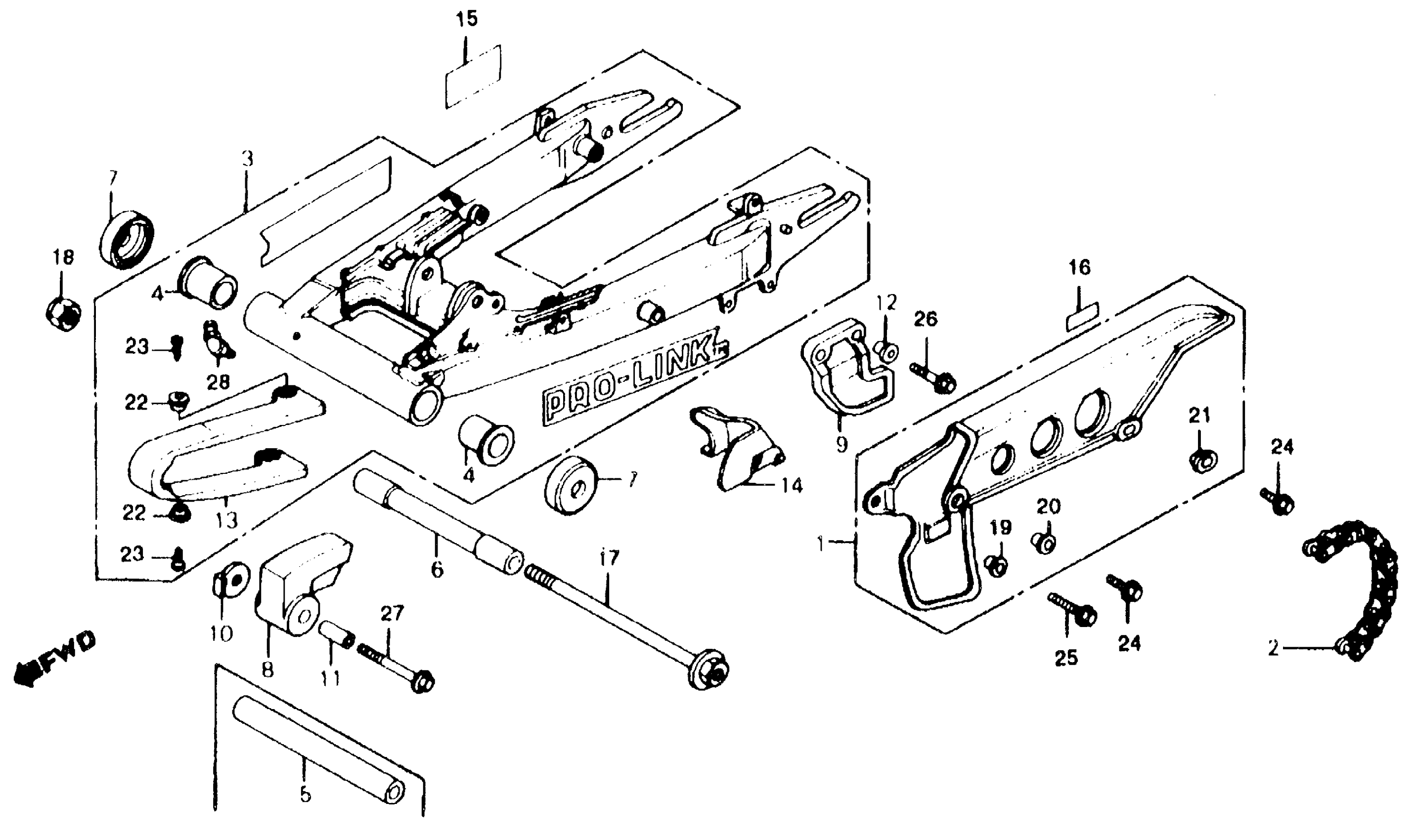

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 SWINGARM + CHAIN GUARD Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-KG1-000

Unavailable

2

CHAIN, DRIVE (520KS-104LE) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-KG1-671.

40530-KG1-672

Unavailable

2

CHAIN, DRIVE (520KS-104LE) (TAKASAGO) (NOT AVAILABLE)

40530-KG1-672

Unavailable

3

SWINGARM ASSY., RR. *NH35M* (WL) (CLOUD SILVER METALLIC) (NOT AVAILABLE)

52100-KG1-671ZA

Unavailable

4

BUSH, SWINGARM This part replaces 52108-KB9-003.

52108-KE5-003

$21.68

4

BUSH, SWINGARM

52108-KE5-003

$21.68

5

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-KB9-010

Unavailable

7

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

7

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

8

SLIDER, CHAIN (NOT AVAILABLE)

52155-KB9-000

Unavailable

9

GUARD, DRIVE CHAIN

52156-KB9-000

$29.39

10

NUT, CHAIN SLIPPER (NOT AVAILABLE)

52157-MC4-000

Unavailable

11

COLLAR, CHAIN SLIPPER

52158-MC4-000

Unavailable

12

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

13

SLIDER, CHAIN (NOT AVAILABLE)

52170-KB9-000

Unavailable

14

SPLASH GUARD (NOT AVAILABLE)

80108-KA2-000

Unavailable

16

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-437-710

Unavailable

17

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-KB9-000

Unavailable

18

NUT, U (14MM)

90305-GE8-003

$3.86

18

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

19

WASHER, FR. COVER SETTING

90501-124-000

$3.74

20

WASHER (6X20)

90512-300-000

$3.08

21

WASHER (6X9)

90513-323-000

$1.84

22

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

23

SCREW, TAPPING (6X12)

93901-26110

$1.49

24

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

24

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

25

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

26

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

27

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

27

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

28

NIPPLE, GREASE (B.T6)

96201-60000

$2.87
