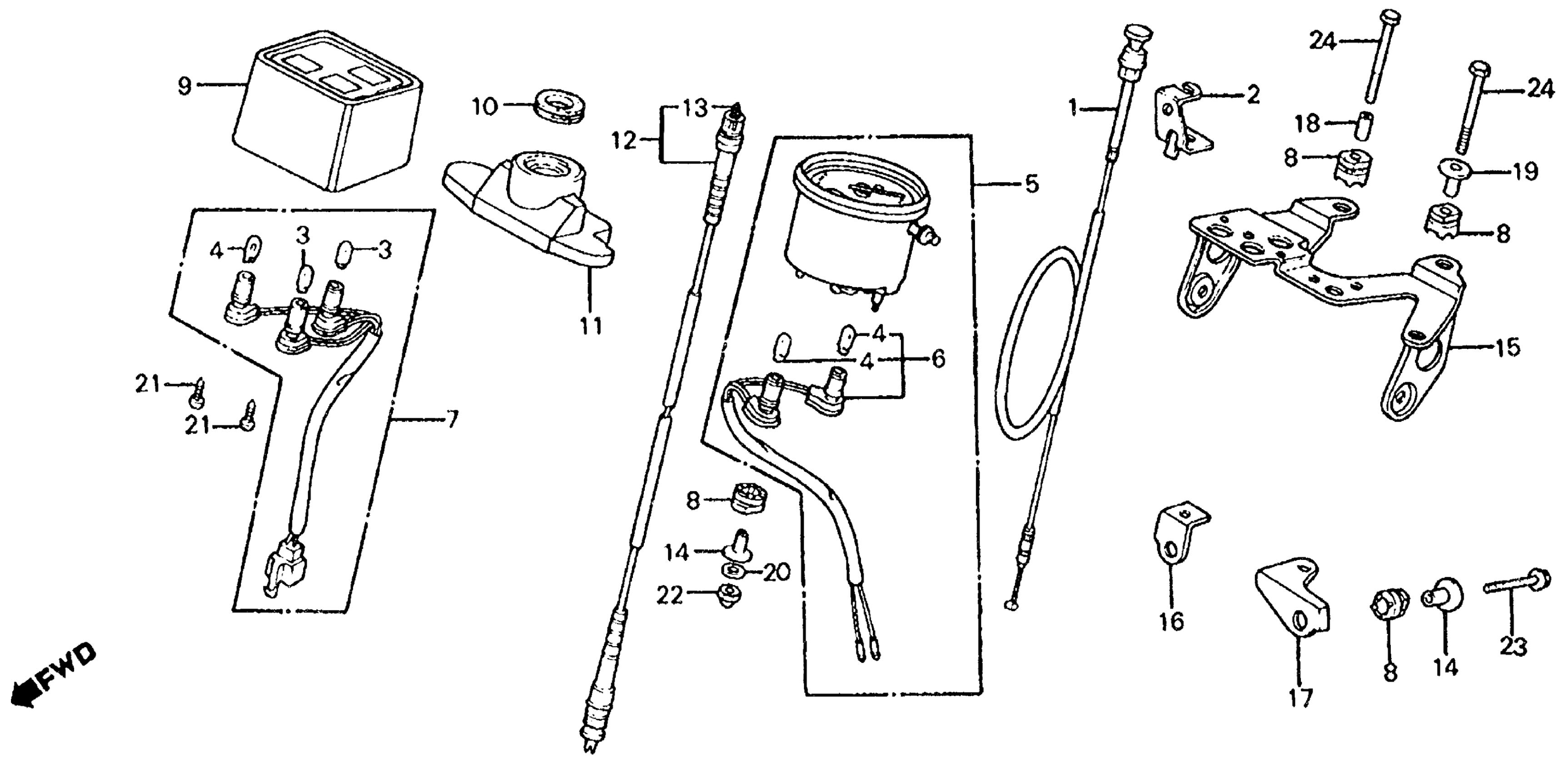

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 SPEEDOMETER Diagram

#

Description
Price

1

CABLE, CHOKE (NOT AVAILABLE)

17950-436-670

Unavailable

1

CABLE, CHOKE This part replaces 17950-437-000.

17950-436-670

Unavailable

2

STAY, CHOKE CABLE (NOT AVAILABLE)

17951-KB7-670

Unavailable

3

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

3

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

3

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

3

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

4

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

5

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE) This part replaces 37200-KG1-671.

37200-MC4-671

Unavailable

6

SOCKET, ILLUMINATION (NOT AVAILABLE)

37222-KB7-008

Unavailable

7

WIRE, PILOT (NOT AVAILABLE)

37223-MC4-671

Unavailable

8

RUBBER, SPEEDOMETER MOUNTING

37242-435-700

$5.90

9

CASE ASSY., PILOT (NOT AVAILABLE)

37300-MC4-671

Unavailable

10

GROMMET, COMBINATION SWITCH

37312-KB7-008

Unavailable

11

COVER, IGNITION SWITCH (NOT AVAILABLE)

37622-MC4-670

Unavailable

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-KB9-000.

44830-KK0-000

Unavailable

12

CABLE ASSY., SPEEDOMETER

44830-KK0-000

Unavailable

13

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-KB9-000

Unavailable

14

COLLAR (6.3X13)

50324-425-010

$5.05

15

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61310-KB7-670

Unavailable

16

SUB-STAY, R. HEADLIGHT (NOT AVAILABLE)

61315-KB7-670

Unavailable

17

SUB-STAY, L. HEADLIGHT (NOT AVAILABLE)

61316-KB7-670

Unavailable

18

COLLAR, LICENSE BRACKET CUSHION (NOT AVAILABLE)

84907-174-670

Unavailable

19

COLLAR (6.2X13)

90501-MA3-720

$4.78

20

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

21

SCREW, TAPPING (4X16)

93901-34480

$1.49

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

23

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

24

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

24

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
