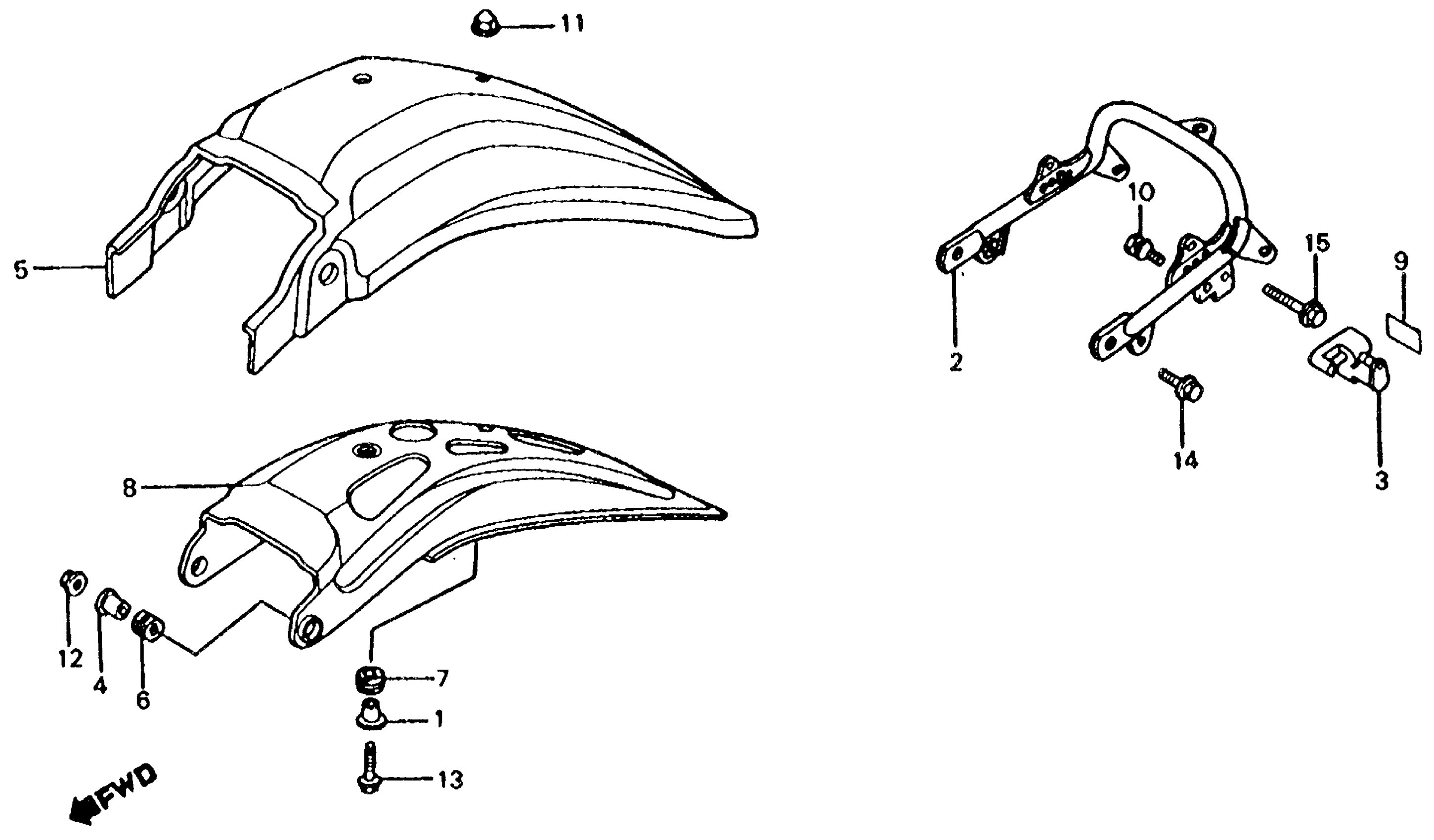

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 REAR FENDER Diagram

#

Description
Price

1

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA4-000.

19052-MB0-000

$6.34

1

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

2

PIPE, TAIL (NOT AVAILABLE)

50311-KG1-670

Unavailable

3

HOLDER ASSY., HELMET

50710-382-671

$72.08

4

COLLAR (8X15)

80101-KB7-000

$6.16

5

FENDER, RR. *R110* (MONZA RED) (NOT AVAILABLE)

80101-KG1-670ZA

Unavailable

6

RUBBER, MOUNTING

80102-KB7-000

Unavailable

7

CUSHION A, RR. FENDER

80105-028-000

$5.28

8

PATCH, RR. FENDER (NOT AVAILABLE)

80110-KG1-000

Unavailable

9

LABEL, HELMET HOLDER

87511-323-670

$2.72

10

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

10

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

11

NUT, CAP (6MM)

90201-415-000

$2.05

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

NUT, FLANGE (8MM)

94050-08080

$1.49

13

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

13

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

14

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

14

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

15

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

15

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
