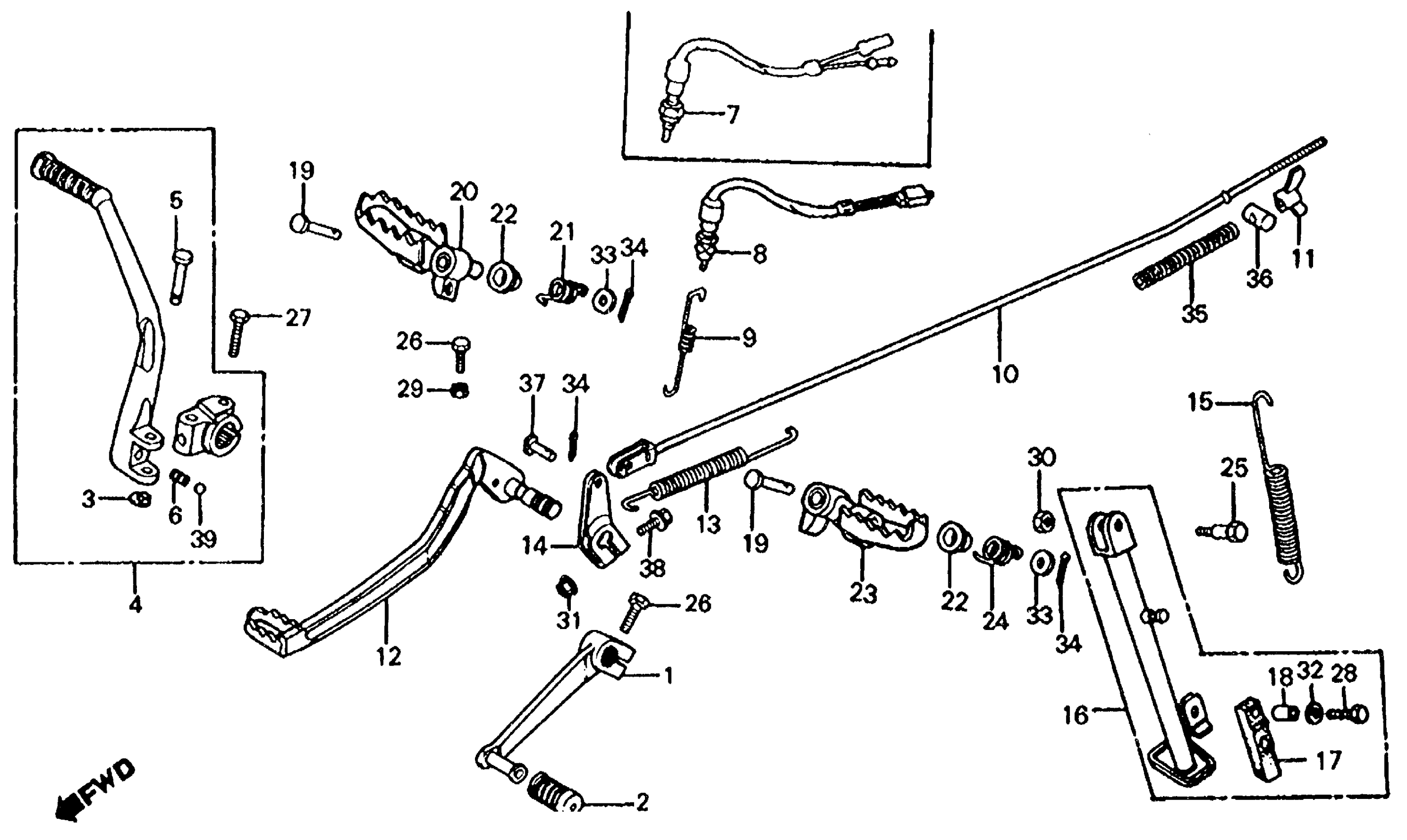

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 PEDALS + FOOTPEGS + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KB9-000

$38.92

2

RUBBER, GEARSHIFT

24781-449-000

$3.57

3

CLIP, KICK STARTER ARM

28293-124-000

$2.41

4

ARM ASSY., KICK STARTER

28300-427-770

Unavailable

5

PIN, KICK STARTER

28321-427-770

$7.27

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

8

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-MG2-000

$17.92

9

SPRING, STOP SWITCH This part replaces 35357-KE6-830.

35357-443-760

Unavailable

10

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KB9-000

Unavailable

11

NUT, BRAKE ADJUSTING

43459-434-000

$15.27

12

PEDAL, BRAKE (NOT AVAILABLE)

46500-KB9-000

Unavailable

13

SPRING, BRAKE PEDAL

46514-KB9-000

Unavailable

14

ARM, MIDDLE (NOT AVAILABLE)

46516-KB9-000

Unavailable

15

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

16

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KG1-770

Unavailable

17

RUBBER, STAND

50548-324-760

$12.47

18

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

19

PIN, STEP BAR JOINT

50603-MC4-000

$4.69

20

STEP, R. This part replaces 50616-KG1-000.

50616-MC4-000

Unavailable

20

STEP, R.

50616-MC4-000

Unavailable

21

SPRING, R. STEP RETURN

50617-MC4-000

Unavailable

22

COLLAR, STEP SETTING

50622-KG1-000

$8.05

23

STEP, L. This part replaces 50642-KG1-000.

50642-MC4-000

Unavailable

23

STEP, L.

50642-MC4-000

Unavailable

24

SPRING, L. STEP RETURN

50644-MC4-000

Unavailable

25

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

26

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

26

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

27

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

27

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

27

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

28

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

28

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

29

NUT, HEX. (6MM)

94002-06000-0S

$1.49

30

NUT, HEX. (10MM)

94031-10000

$1.49

31

NUT, FLANGE (8MM)

94050-08000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49

35

SPRING A, BRAKE ROD

95014-73100

$1.49

36

JOINT B, BRAKE ARM

95015-32001

$1.49

37

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

38

BOLT, FLANGE (8X38) This part replaces 95800-08038-08.

95801-08038-08

$2.43

38

BOLT, FLANGE (8X38)

95801-08038-08

$2.43

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
