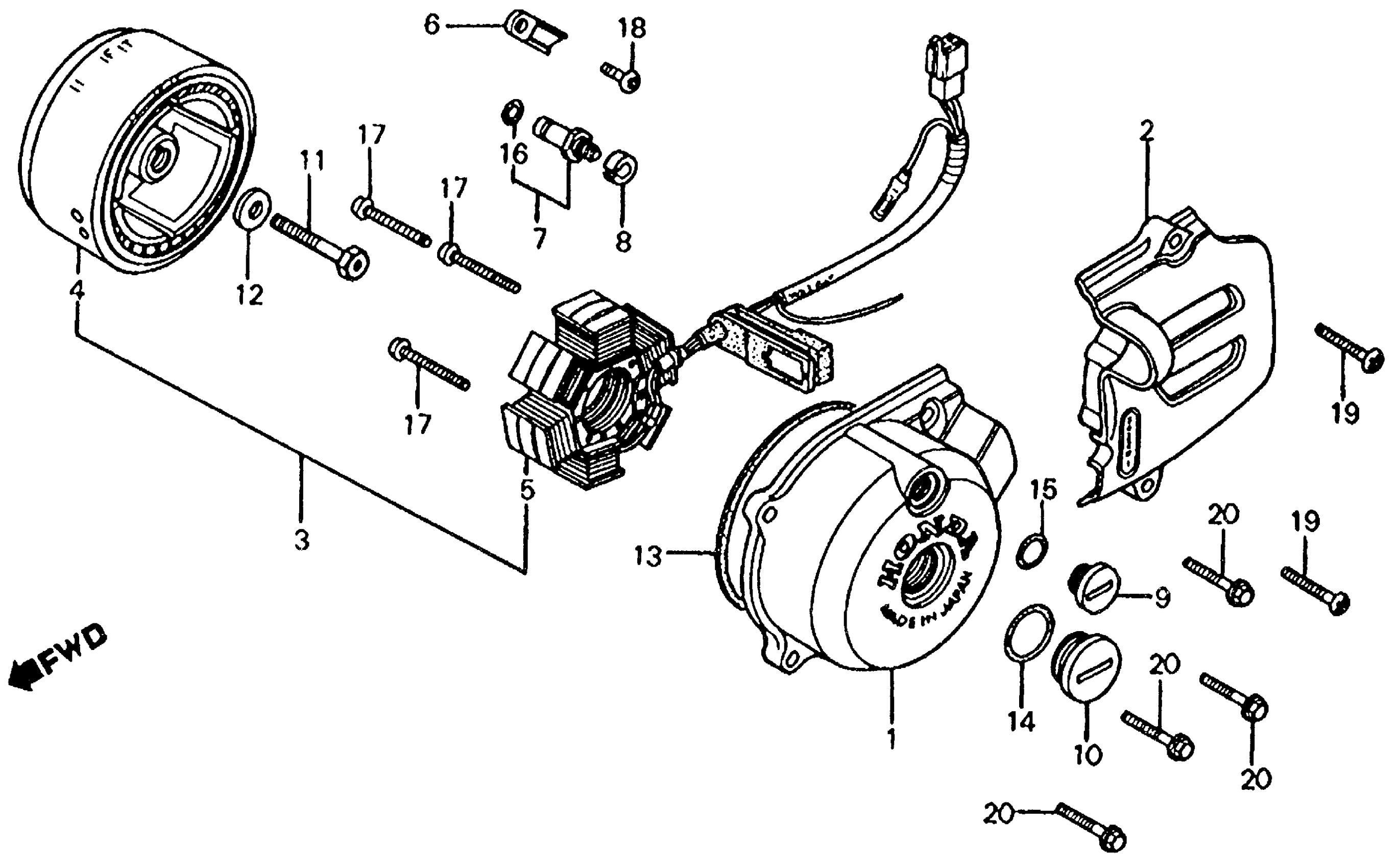

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CASE (NOT AVAILABLE)

11341-KB9-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-KG1-000

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-KG1-004

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-KG1-005.

31100-KG1-004

Unavailable

4

ROTOR (DENSO) (NOT AVAILABLE)

31110-KG1-004

Unavailable

4

ROTOR (DENSO) (NOT AVAILABLE) This part replaces 31110-KG1-005.

31110-KG1-004

Unavailable

5

STATOR (DENSO) (NOT AVAILABLE)

31120-KG1-004

Unavailable

5

STATOR (DENSO) (NOT AVAILABLE) This part replaces 31120-KG1-005.

31120-KG1-004

Unavailable

6

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

6

CLAMP, WIRE HARNESS

32976-107-010

$1.97

7

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

8

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

8

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

9

CAP, ALTERNATOR

90084-471-000

Unavailable

10

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

11

BOLT, UBS (8X40)

90112-KA2-000

Unavailable

12

WASHER, ROTOR SETTING

90426-437-000

$6.57

13

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

13

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

14

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

14

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

15

O-RING (13.8X2.5)

91303-MG7-003

$3.12

15

O-RING (13.8X2.5)

91303-377-000

$3.42

15

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

16

O-RING (7X1.7)

91312-107-000

$3.18

17

SCREW, PAN (5X32)

93500-05032-0A

$1.49

18

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

18

SCREW, PAN (6X12)

93500-06012-0A

$1.49

18

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

19

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

19

SCREW, PAN (6X25)

93500-06025-0A

$1.49

20

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
