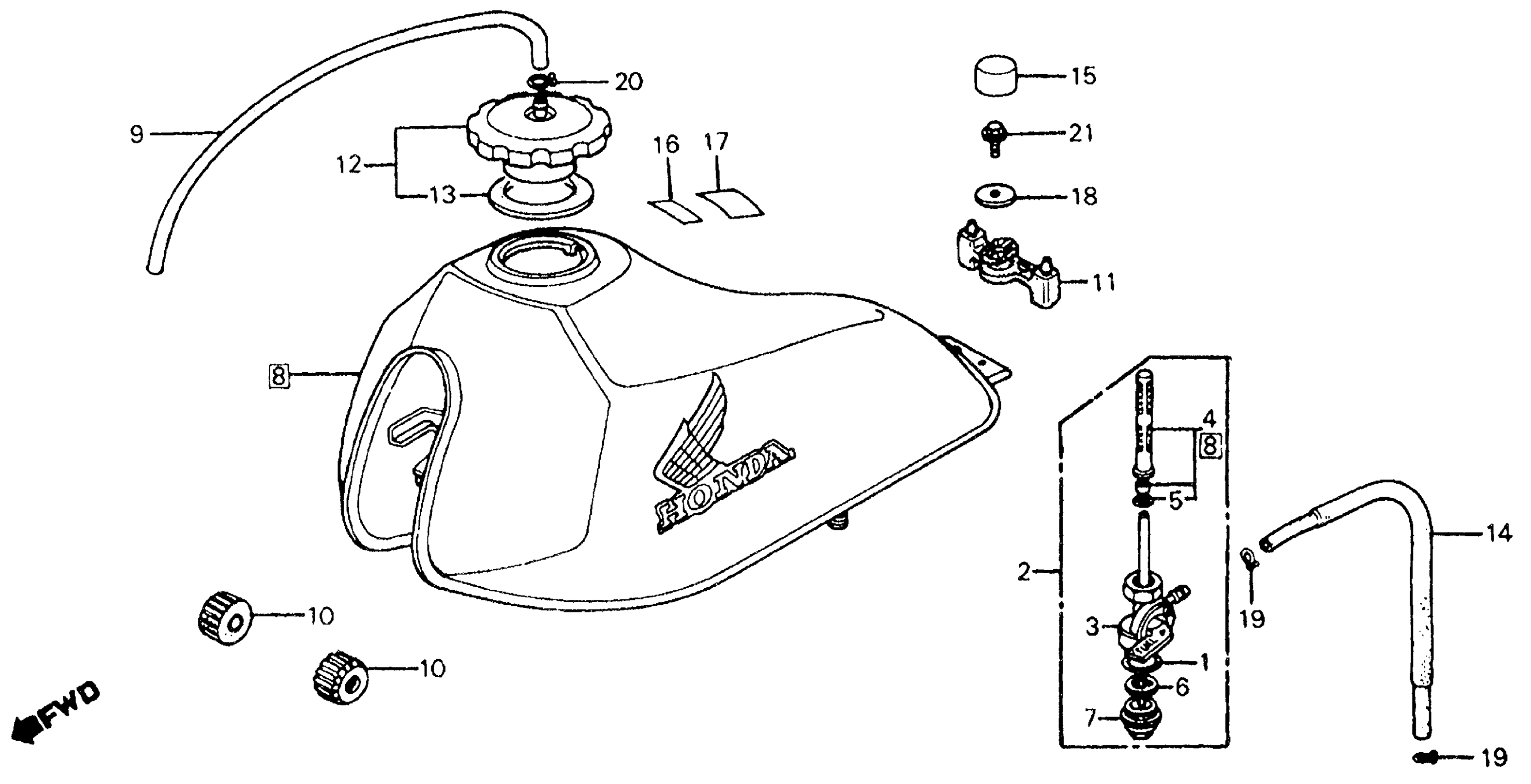

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 FUEL TANK Diagram

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

PETCOCK ASSY. This part replaces 16950-195-701.

16950-195-702

$91.67

PETCOCK ASSY.

16950-195-702

$91.67

BODY, PETCOCK (NOT AVAILABLE)

16951-195-701

Unavailable

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-195-701.

16952-GB2-721

Unavailable

O-RING (9.0X1.3)

16958-397-771

$5.30

FILTER, CUP

16959-471-831

$9.35

CUP, FUEL STRAINER

16967-GA6-671

$23.28

TANK SET, FUEL *R110* (WL) (MONZA RED) (NOT AVAILABLE)

175A1-KB9-000ZA

Unavailable

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

CUSHION, FR. TANK

17611-437-000

$6.63

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-KB9-000

Unavailable

CAP, FUEL TANK

17620-435-730

Unavailable

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

TUBE, FUEL (4.5X180) This part replaces 17681-KA8-010.

17681-GZ9-000

Unavailable

RUBBER, FR. SEAT SETTING (NOT AVAILABLE)

77202-KG1-000

Unavailable

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

MARK, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

WASHER, TANK SETTING

90136-428-870

$1.56

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
