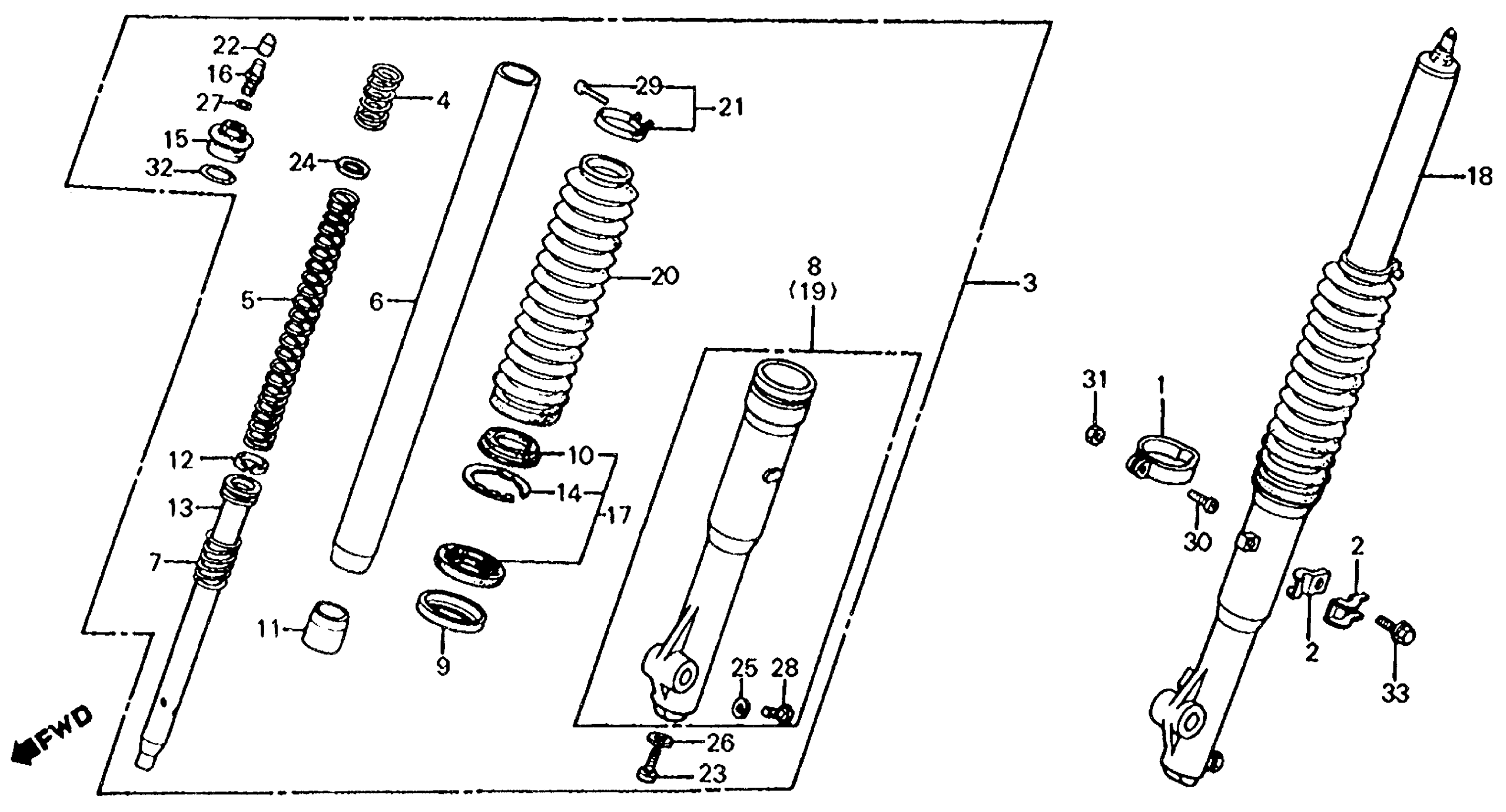

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-KB9-000

Unavailable

2

CLAMP, FR. BRAKE (NOT AVAILABLE)

45461-KB9-000

Unavailable

3

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-KG1-003

Unavailable

4

SPRING A, FR. FORK (NOT AVAILABLE)

51401-KG1-003

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-KG1-003

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-KG1-003

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

CASE, R. (LOWER) (NOT AVAILABLE)

51420-KB9-003

Unavailable

9

RING, BACK-UP

51422-376-305

Unavailable

10

DUST SEAL

51425-473-003

$26.44

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-KG1-003

Unavailable

12

RING, PISTON

51437-400-771

$6.30

13

PIPE, SEAT (NOT AVAILABLE)

51440-KG1-003

Unavailable

14

CIRCLIP (INNER)

51447-447-731

Unavailable

15

BOLT, FR. FORK (NOT AVAILABLE)

51455-KB9-003

Unavailable

16

VALVE, AIR

51456-469-013

$33.69

17

SEAL SET, FR. FORK This part replaces 51490-KB9-305.

51490-473-305

$37.03

17

SEAL SET, FR. FORK

51490-473-305

$37.03

18

SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE)

51500-KG1-003

Unavailable

19

CASE, L. (LOWER) (NOT AVAILABLE)

51520-KB9-003

Unavailable

20

BOOT, FR. FORK (NOT AVAILABLE)

51611-KB9-003

Unavailable

21

BAND, FR. FORK BOOT

51612-446-003

Unavailable

22

CAP, AIR VALVE

52425-381-771

$5.05

23

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

23

BOLT, SOCKET (8X27)

90116-383-721

$5.13

24

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

25

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

26

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

27

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

27

O-RING (5.8X1.9)

91305-323-000

$2.92

27

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

SCREW, PAN (3X20)

93500-03020-0G

$1.49

30

SCREW, PAN (5X20)

93500-05020-0A

$1.49

31

NUT, HEX. (5MM)

94001-05000-0S

$2.74

32

O-RING (23X2.8)

94608-50000

$1.49

33

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
