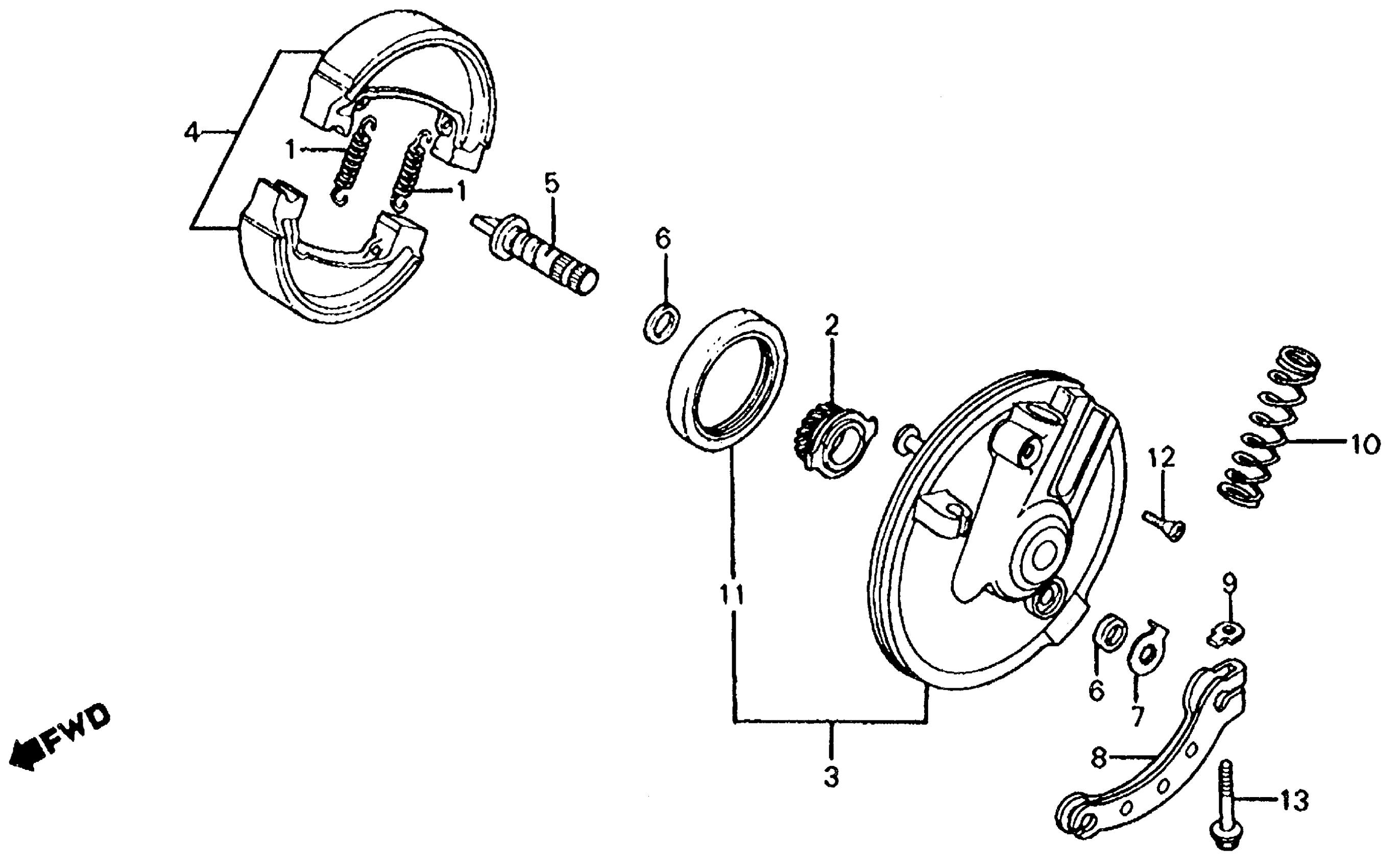

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KB9-406.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 451A2-KB9-015.

06430-GBJ-J10

$29.23

1

SPRING, BRAKE SHOE (NK)

43151-110-000

$2.92

2

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

3

PANEL SUB, FR. BRAKE (NOT AVAILABLE)

451A0-KB9-010

Unavailable

4

SHOE SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KB9-015

Unavailable

5

CAM, FR. BRAKE (NOT AVAILABLE)

45131-KB9-000

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

INDICATOR, FR. BRAKE

45145-GC5-000

Unavailable

8

ARM, FR. BRAKE (NOT AVAILABLE)

45410-437-000

Unavailable

9

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

10

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

11

OIL SEAL (47X60X7) (ARAI)

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (NOK)

91251-361-005

$13.39

12

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

13

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

13

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
