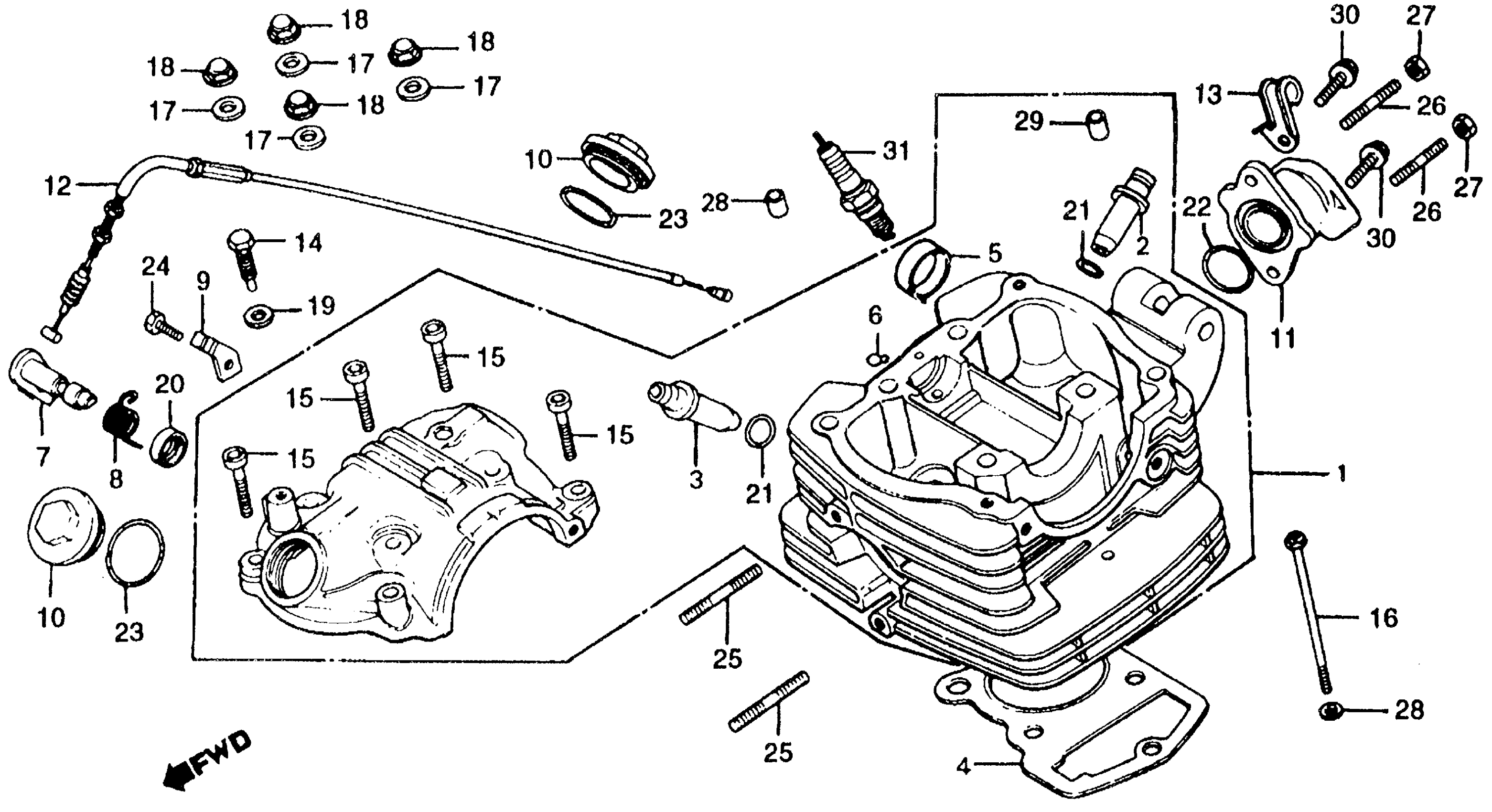

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12000-KA2-000.

12000-KA2-305

Unavailable

2

GUIDE, VALVE

12021-365-300

Unavailable

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$24.10

3

GUIDE, EX. VALVE (OVER SIZE)

12206-KCS-305

$24.10

4

GASKET, CYLINDER HEAD SET

12251-KT0-P00

$22.97

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-306.

12251-KT0-P00

$22.97

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-776.

12251-KT0-P00

$22.97

5

BUSH, CAMSHAFT

12260-437-000

$35.42

6

RUBBER, OIL SEAL

12271-383-000

$2.80

7

LIFTER, VALVE

12320-427-010

Unavailable

8

SPRING, VALVE LIFT

12325-427-000

Unavailable

9

RECEIVER, DECOMPRESSION CABLE (UPPER)

12327-KF9-900

Unavailable

9

RECEIVER, DECOMPRESSION CABLE (UPPER) This part replaces 12327-427-000.

12327-KF9-900

Unavailable

10

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$5.98

11

INSULATOR, CARBURETOR (NOT AVAILABLE)

16210-KG1-000

Unavailable

12

CABLE, DECOMPRESSION

28291-KA2-000

Unavailable

13

CLIP, COIL CABLE

32921-437-000

Unavailable

14

BOLT, DECOMPRESSION PIVOT

90008-706-000

Unavailable

15

BOLT, SOCKET (6MM)

90081-383-000

$5.27

16

BOLT (6X116)

90081-427-000

Unavailable

17

WASHER, SEALING (8MM)

90442-028-000

$1.61

18

NUT, CAP (8MM)

90443-107-000

$2.62

19

WASHER A (6MM)

90478-700-000

$0.70

20

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-427-003.

91205-KF0-003

$3.22

21

O-RING (10X1.6)

91301-200-000

$2.80

22

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.18

22

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.18

22

O-RING (33.5X3.0)

91304-HB3-003

$7.18

22

O-RING (33.5X3.0)

91304-HB3-003

$7.18

23

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.80

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

25

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

$1.38

25

BOLT, STUD (6X35)

92900-06020-3E

$1.38

26

BOLT, STUD (6X28) This part replaces 92712-06028.

92712-06028-0B

Unavailable

26

BOLT, STUD (6X28)

92712-06028-0B

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM)

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM)

94101-06800

Unavailable

29

PIN, DOWEL (8X14)

94301-08140

$2.04

30

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.64

30

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

31

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.00

31

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.00

31

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.16

31

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.16

31

SPARK PLUG (X22ESR-U) (DENSO)

98069-57726

$2.16

31

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.32

31

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.32

31

SPARK PLUG (X24ESR-U) (DENSO) | (Optional).

98069-58726

$2.25
