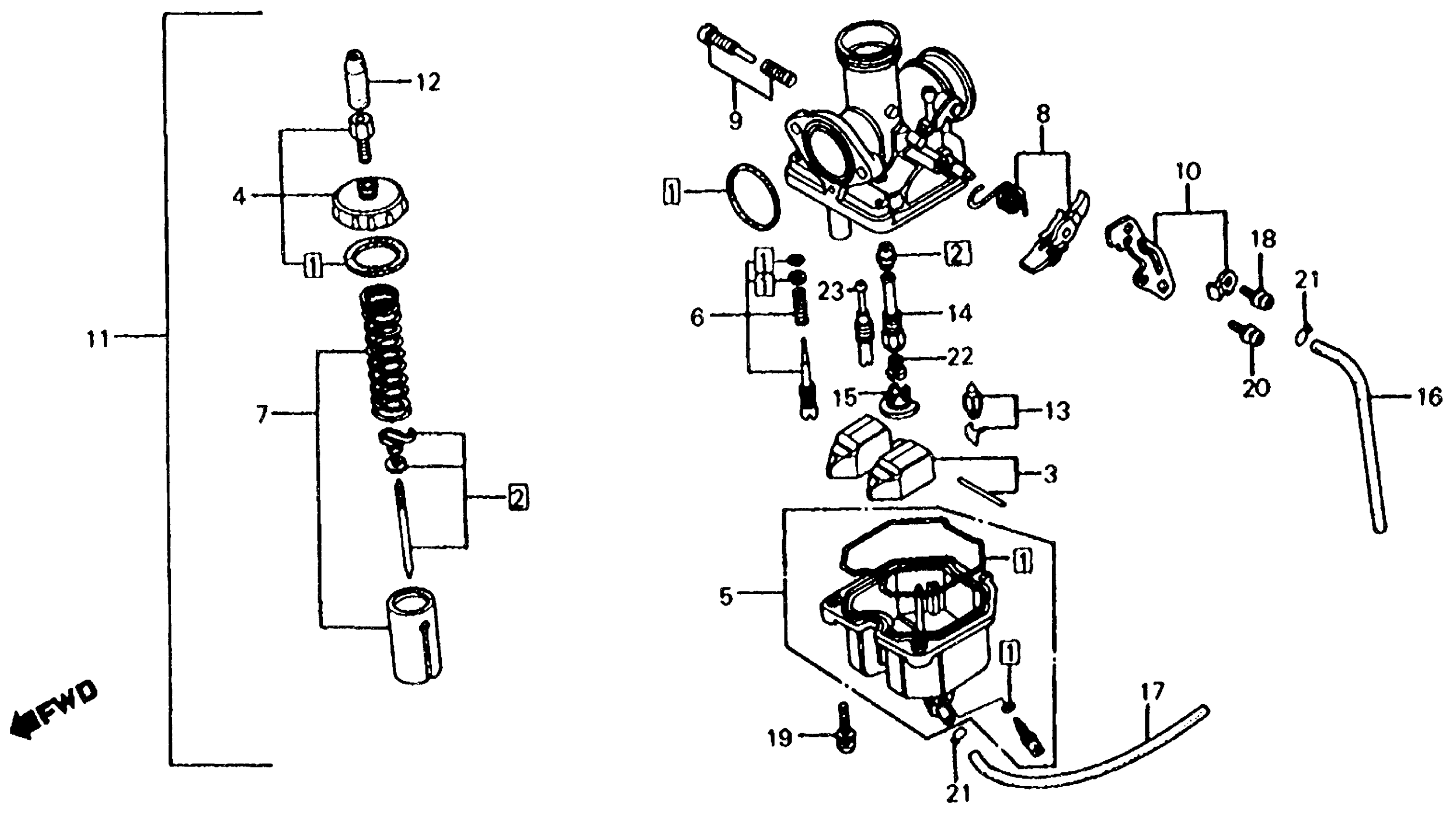

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HB5-305

$27.44

1

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-KG1-671

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

TOP SET

16014-440-912

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KB9-004

Unavailable

6

SCREW SET A

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-KF9-671

Unavailable

8

LEVER SET, CHOKE

16025-427-004

$29.95

9

SCREW SET B

16028-KB1-D11

$5.98

9

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

10

PLATE SET, STAY This part replaces 16035-KC2-004.

16035-KEB-620

Unavailable

10

PLATE SET, STAY

16035-KEB-620

Unavailable

10

PLATE SET, STAY This part replaces 16035-324-901.

16035-KEB-620

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KG1-672

Unavailable

12

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

12

CAP, CABLE SEALING

16148-KB1-921

$17.51

13

VALVE, FLOAT

16155-397-971

$41.45

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-KG1-671

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

16

TUBE, OVERFLOW

16199-KG4-405

$9.49

16

TUBE, FUEL This part replaces 16199-187-003.

16199-KG4-405

$9.49

17

TUBE, OVERFLOW

16199-KG4-405

$9.49

17

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

18

SCREW-WASHER (4X10)

93892-04010-08

$1.49

19

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

SCREW-WASHER (5X12)

93892-05012-08

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#95) | (Optional).

99101-GHB-0950

$8.77

22

JET, MAIN (#100)

99101-GHB-1000

$6.75

22

JET, MAIN (#95) | (Optional). This part replaces 99101-393-0950.

99101-GHB-0950

$8.77

22

JET, MAIN (#100) This part replaces 99101-393-1000.

99101-GHB-1000

$6.75

23

JET, SLOW (#40)

99103-GBF-0400

$13.18

23

JET, SLOW (#40) This part replaces 99103-KA3-0400.

99103-GBF-0400

$13.18

23

JET, SLOW (#40) This part replaces 99103-440-0400.

99103-GBF-0400

$13.18
