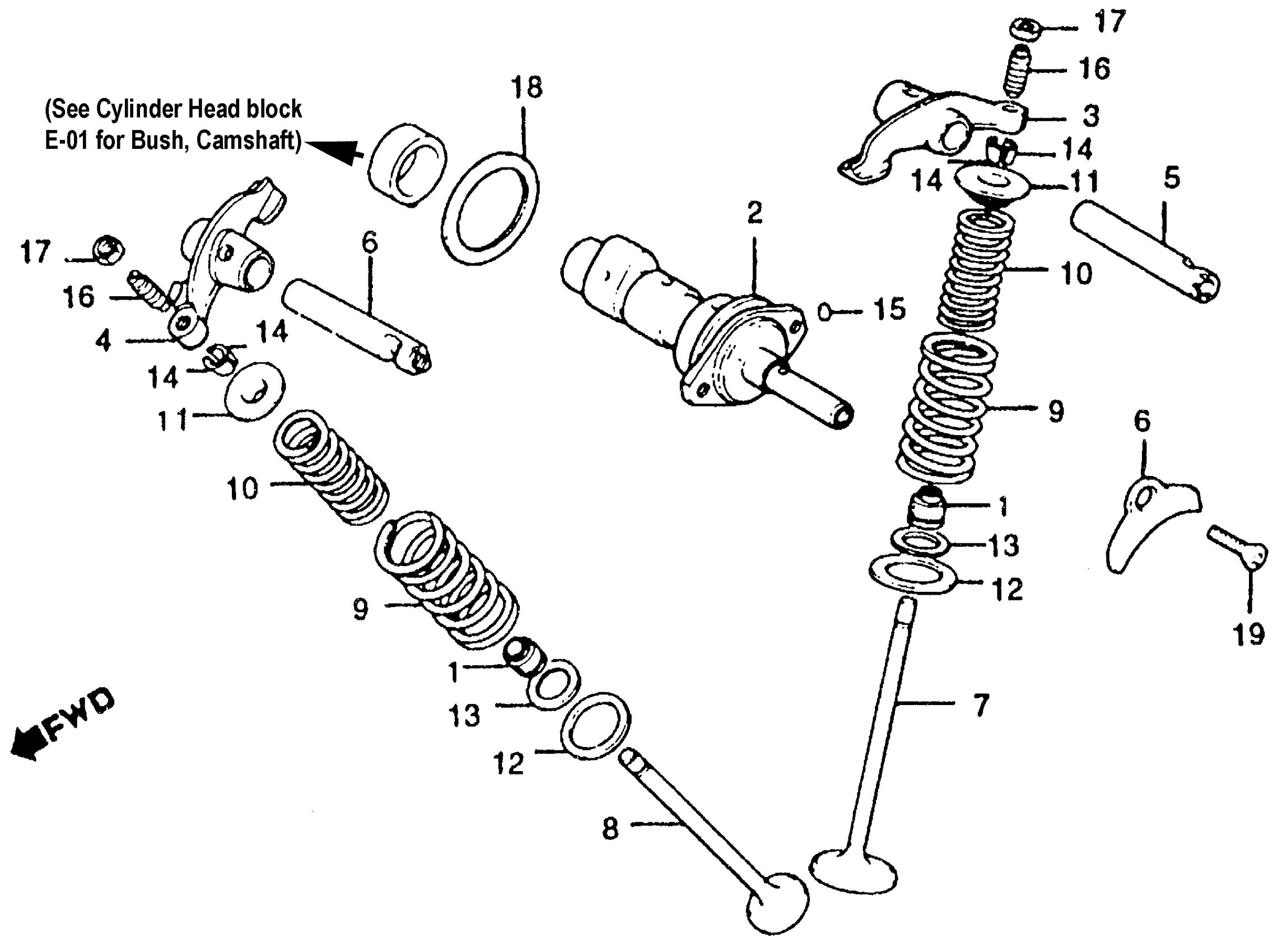

Honda XL200RA (84) MOTORCYCLE, JPN, VIN# JH2MD060-EK100001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

2

CAMSHAFT This part replaces 14101-437-000.

14101-437-010

Unavailable

2

CAMSHAFT

14101-437-010

Unavailable

3

ARM, VALVE ROCKER

14431-383-000

$65.49

4

ARM, EX. VALVE ROCKER

14431-427-000

Unavailable

5

SHAFT, VALVE ROCKER ARM

14451-437-000

$30.13

6

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

7

VALVE, IN.

14711-437-000

$61.51

8

VALVE, EX.

14721-437-000

$67.74

9

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14751-383-005

$14.82

10

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-383-005

$8.13

11

RETAINER, VALVE SPRING

14771-107-020

$7.99

12

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

13

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

14

COTTER, VALVE (SANKO)

14781-107-003

$2.55

15

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

16

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

17

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

18

WASHER, THRUST (34MM)

90451-383-000

$8.91

19

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

19

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
