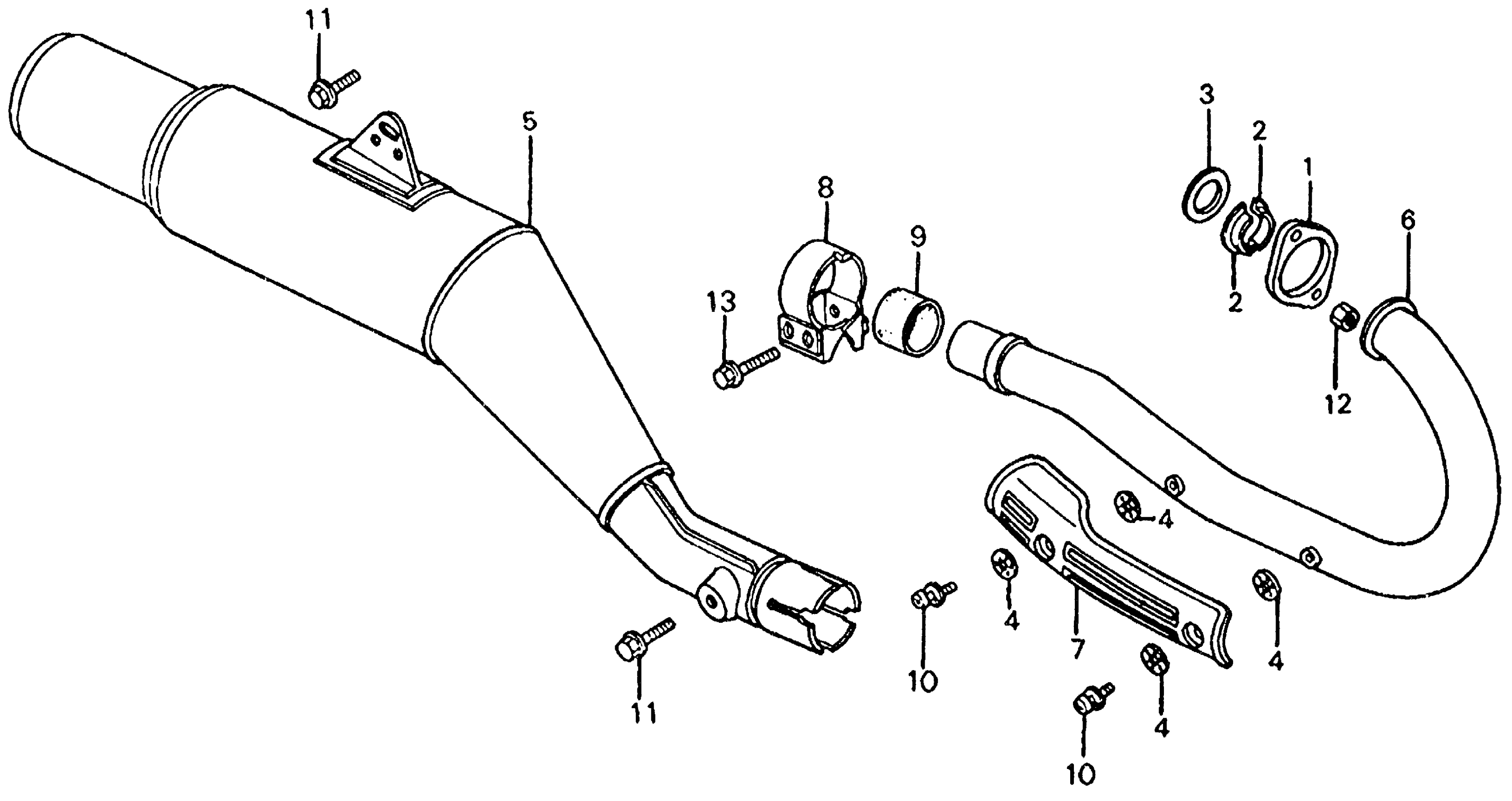

Honda XL200RA (83) MOTORCYCLE, JPN, VIN# JH2MD060-DK000001 TO JH2MD060-DK005845 MUFFLER Diagram

JOINT, EX. PIPE

18231-365-670

Unavailable

COLLAR, EX. PIPE JOINT

18233-330-000

Unavailable

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

GASKET, PROTECTOR

18292-MM9-740

$3.03

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

MUFFLER (NOT AVAILABLE) This part replaces 18310-KG1-670.

18310-KG1-671

Unavailable

MUFFLER (NOT AVAILABLE)

18310-KG1-671

Unavailable

PIPE, EX.

18320-KG1-000

Unavailable

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-KG1-000

Unavailable

BAND, MUFFLER

18371-KG1-000

Unavailable

GASKET, MUFFLER This part replaces 18391-410-000.

18391-410-306

Unavailable

GASKET, MUFFLER

18391-410-306

Unavailable

SCREW-WASHER (6X12)

90136-MC7-000

$4.66

BOLT-WASHER (8X16) This part replaces 93413-08016-00.

93403-08016-00

Unavailable

BOLT-WASHER (8X16) This part replaces 93483-08016-00.

93403-08016-00

Unavailable

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (8X35) This part replaces 95700-08035-07.

95701-08035-07

$1.49

BOLT, FLANGE (8X35)

95701-08035-07

$1.49
