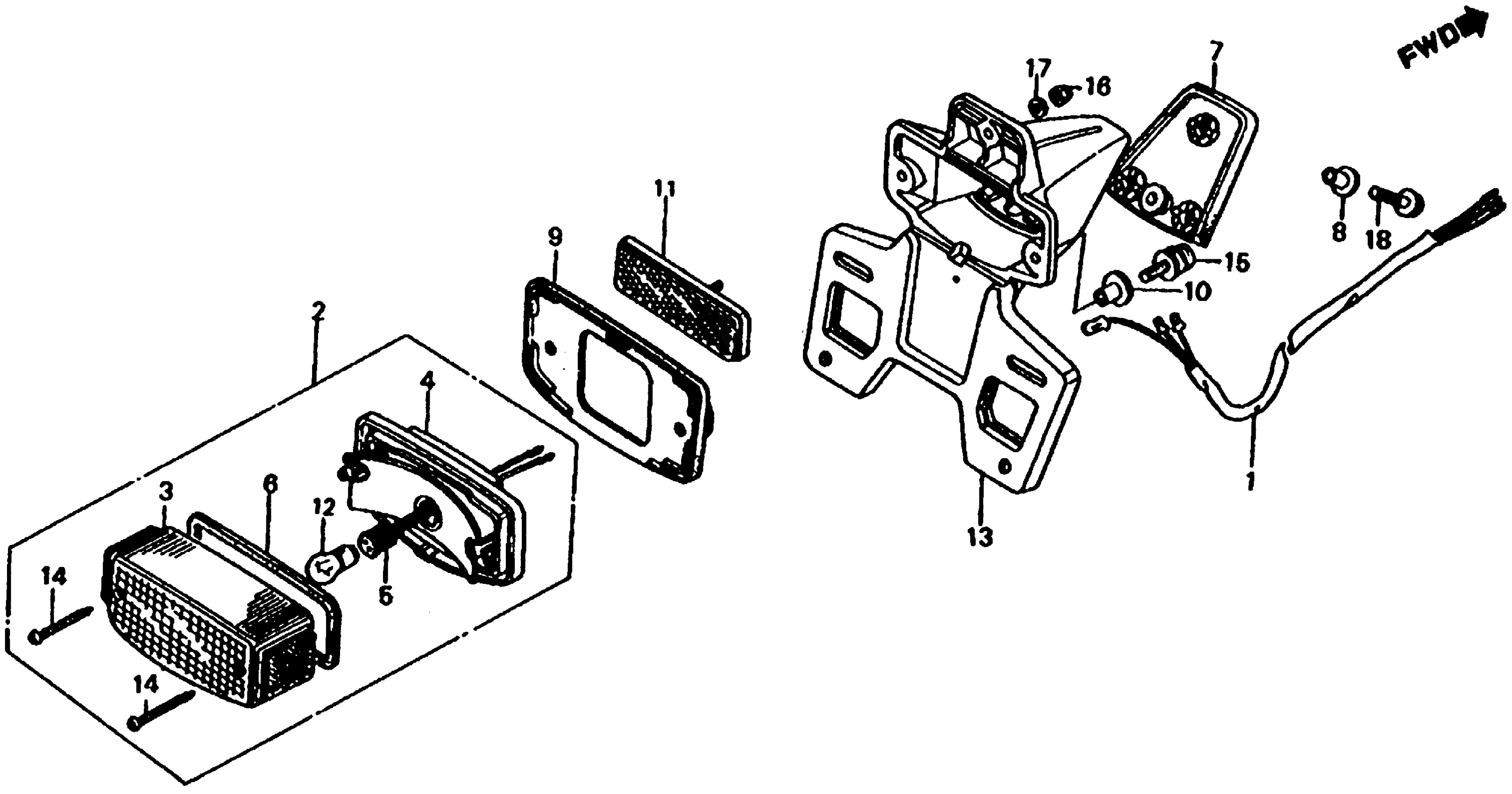

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 TAILLIGHT 83 Diagram

#

Description
Price

1

SUB-WIRE HARNESS A

32101-GC5-000

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-KA8-711

Unavailable

3

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

4

BASE, TAILLIGHT

33703-MC4-671

Unavailable

5

CABLE, TAILLIGHT

33708-147-003

Unavailable

6

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

7

RUBBER, BASE SEAT

33712-KA8-711

Unavailable

8

COLLAR, TAILLIGHT SETTING

33715-KA8-710

Unavailable

9

GASKET, TAILLIGHT

33718-KF9-670

Unavailable

10

COLLAR, TAILLIGHT GASKET

33719-KB7-000

Unavailable

11

REFLECTOR, REFLEX This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

11

REFLECTOR, REFLEX

33741-MC7-612

$14.43

12

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

13

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

14

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

15

SCREW-WASHER (5X18)

93893-05018-00

Unavailable

16

NUT, CAP (5MM)

94021-05020-0S

$1.49

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
