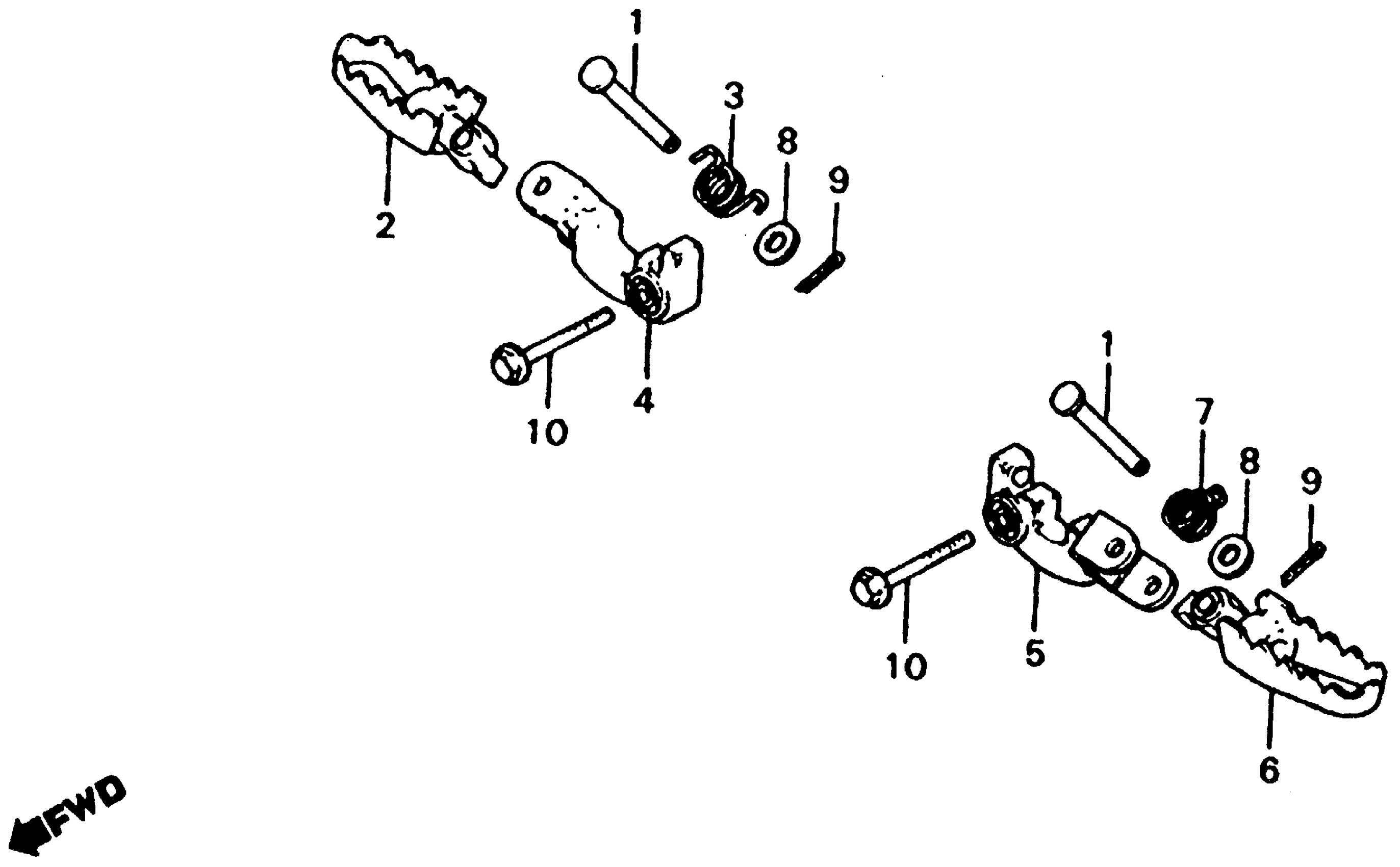

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 STEP Diagram

#

Description

Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

FOOTPEG, R.

50616-428-000

Unavailable

3

SPRING, R. STEP RETURN

50617-KF9-900

Unavailable

3

SPRING, R. STEP RETURN This part replaces 50617-365-670.

50617-KF9-900

Unavailable

4

BAR, R. STEP

50618-437-000

Unavailable

5

BAR, L. STEP

50624-437-000

Unavailable

6

FOOTPEG, L.

50642-428-000

Unavailable

7

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

7

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

8

WASHER, PLAIN (8MM)

94101-08000

$1.49

9

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

9

PIN, COTTER (1.6X25)

94201-16250

$1.49

10

BOLT, FLANGE (8X35) This part replaces 95700-08035-07.

95701-08035-07

$1.49

10

BOLT, FLANGE (8X35)

95701-08035-07

$1.49
