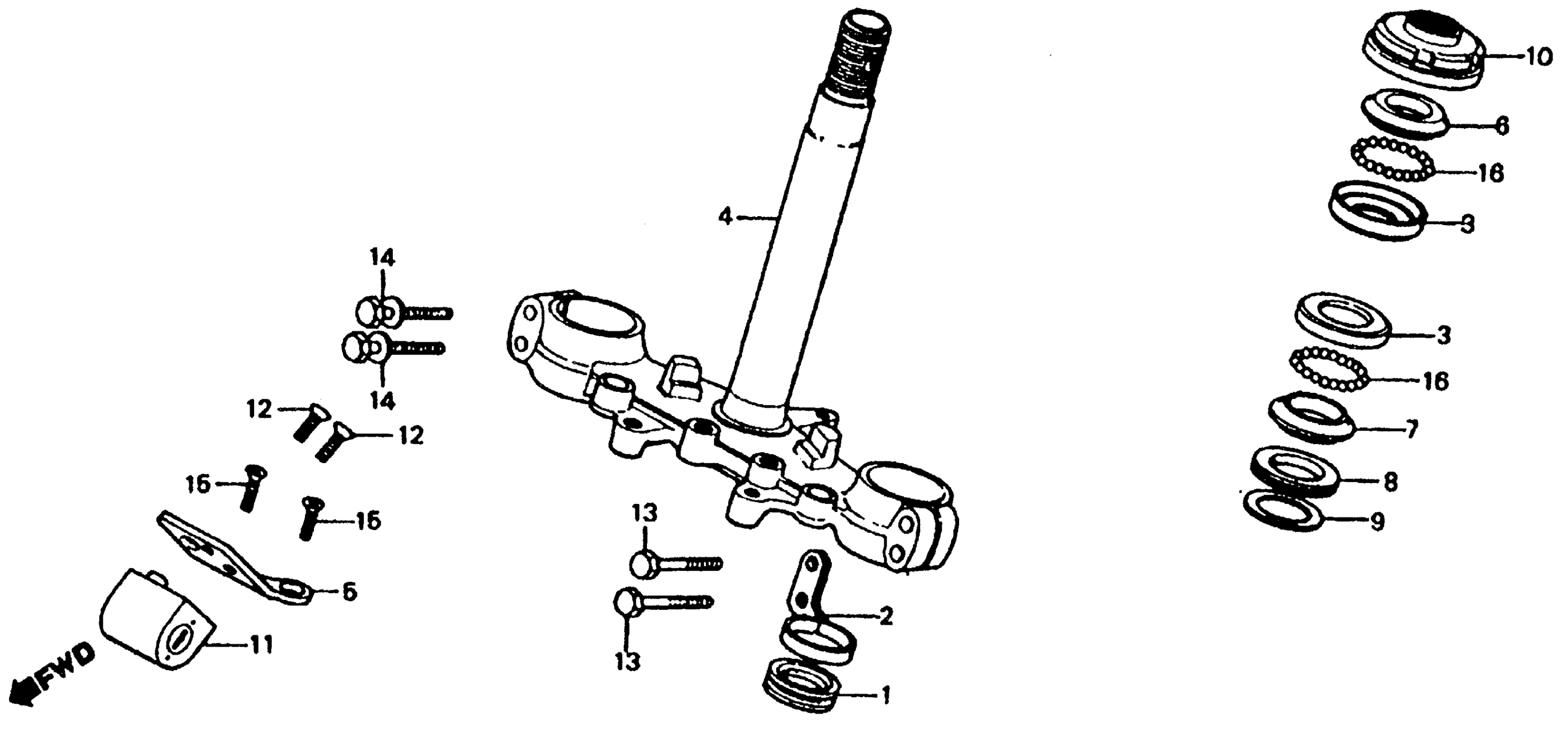

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 STEERING STEM Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.95

2

GUIDE, BRAKE CABLE

45468-427-770

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

STEM, STEERING *NH1* This part replaces 53200-437-000ZA.

53200-437-000ZC

Unavailable

5

HOLDER, HANDLE LOCK

53203-437-000

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

6

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

7

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

9

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

10

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

11

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

11

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$47.89

12

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

13

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

13

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

14

BOLT-WASHER (8X32) (NOT AVAILABLE)

93481-08032-00

Unavailable

15

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

16

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
