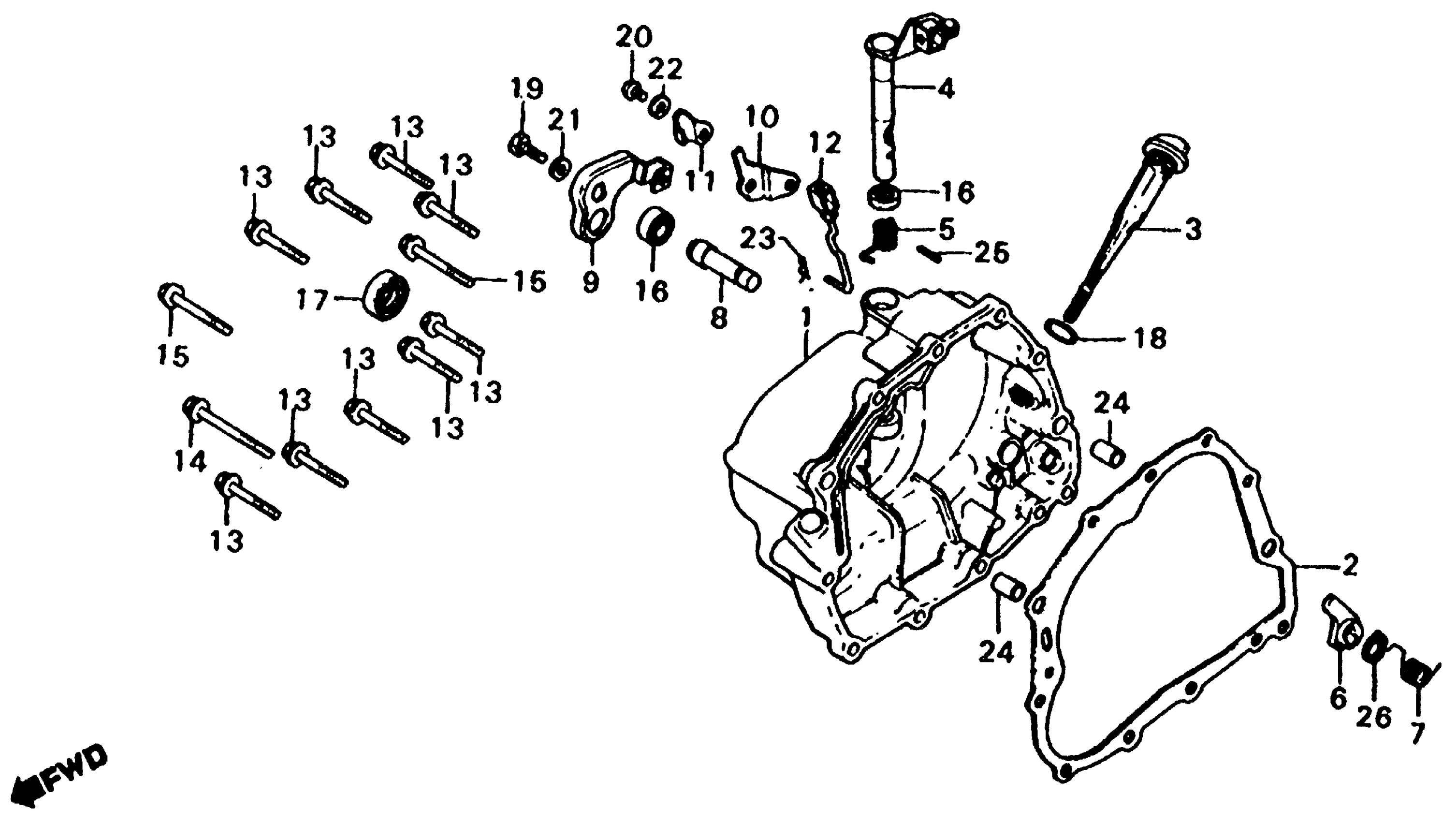

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-427-000

Unavailable

2

GASKET, R. COVER This part replaces 11393-KT0-710.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-000.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-010.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-306.

11393-KVC-902

$15.56

3

DIPSTICK, OIL

15650-KB9-000

$13.60

3

DIPSTICK, OIL This part replaces 15650-437-000.

15650-KB9-000

$13.60

4

LEVER, CLUTCH

22810-437-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-428-000

$3.28

6

FOLLOWER, CAM

28271-427-000

Unavailable

7

SPRING, FOLLOWER

28274-427-000

Unavailable

8

SHAFT, FOLLOWER

28281-427-000

Unavailable

9

ARM, CAM FOLLOWER (NOT AVAILABLE)

28282-427-000

Unavailable

10

RECEIVER, DECOMPRESSION CABLE (LOWER)

28287-427-000

Unavailable

11

CLAMP, DECOMPRESSION RECEIVER

28288-427-000

Unavailable

12

ROD, DECOMPRESSION

28289-427-000

Unavailable

13

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

13

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

14

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

14

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

15

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

15

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

16

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

16

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

16

OIL SEAL (12X22X5)

91201-965-000

$4.06

17

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

17

OIL SEAL (16X28X7)

91204-259-003

$5.60

17

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

17

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

18

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

18

O-RING (18X3)

91307-035-000

$2.92

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

SCREW, PAN (5X12)

93500-05012-0A

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

PIN, LOCK (4MM)

94251-04000

$1.49

24

PIN A, DOWEL (8X14)

94301-08140

$2.25

25

PIN, SPRING (3X10)

94305-30102

$1.74

26

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
