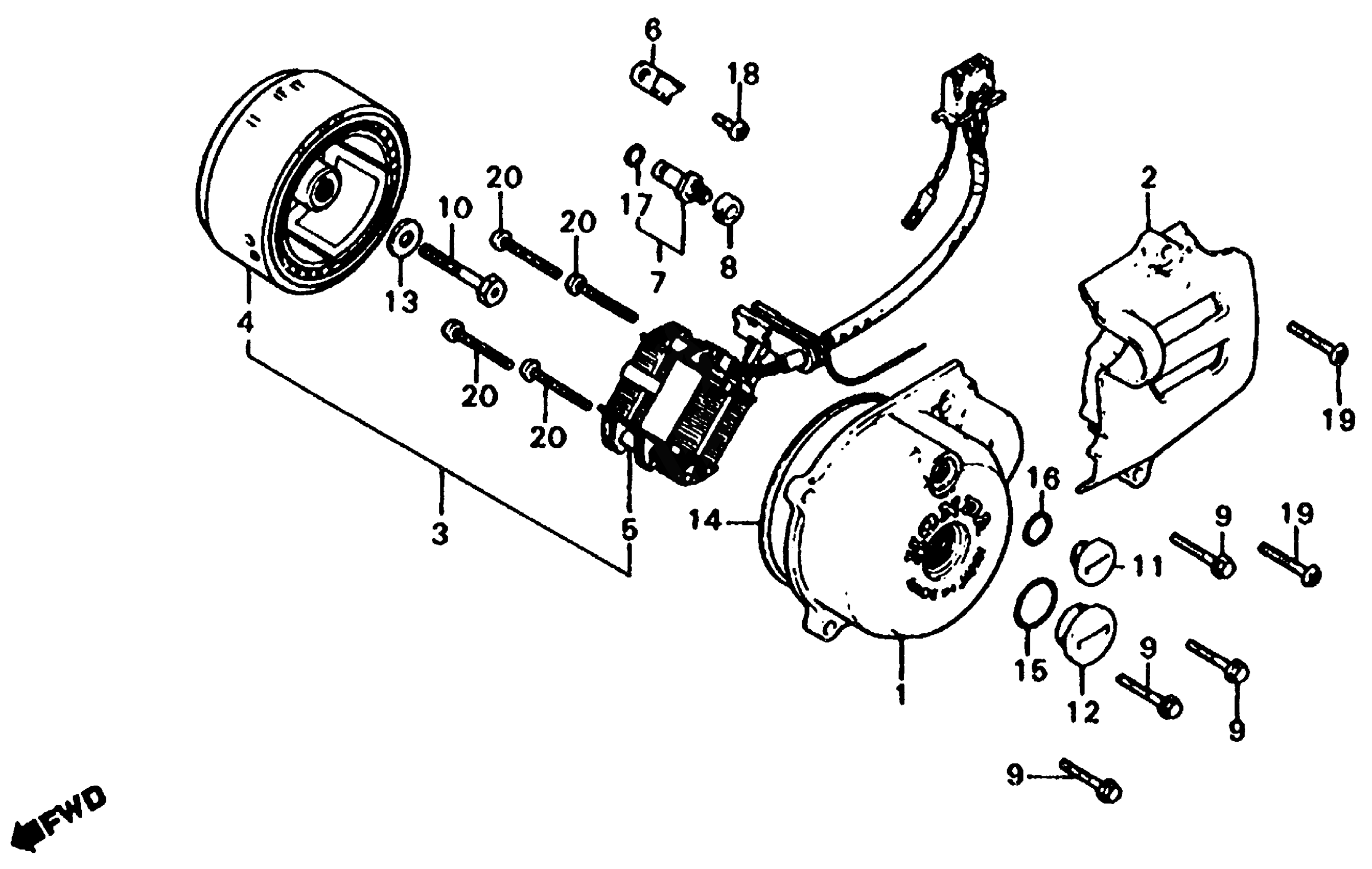

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-427-000

Unavailable

COVER, L. RR. CRANKCASE

11361-437-010

Unavailable

ALTERNATOR ASSY.

31100-KF9-671

Unavailable

ROTOR (DENSO)

31110-427-004

Unavailable

STATOR (DENSO) (NOT AVAILABLE)

31120-KF9-671

Unavailable

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

CLAMP, WIRE HARNESS

32976-107-010

$1.97

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, ALTERNATOR ROTOR (NOT AVAILABLE)

90083-427-000

Unavailable

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

WASHER, ROTOR SETTING

90426-437-000

$6.57

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (13.8X2.5)

91303-MG7-003

$3.12

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49
