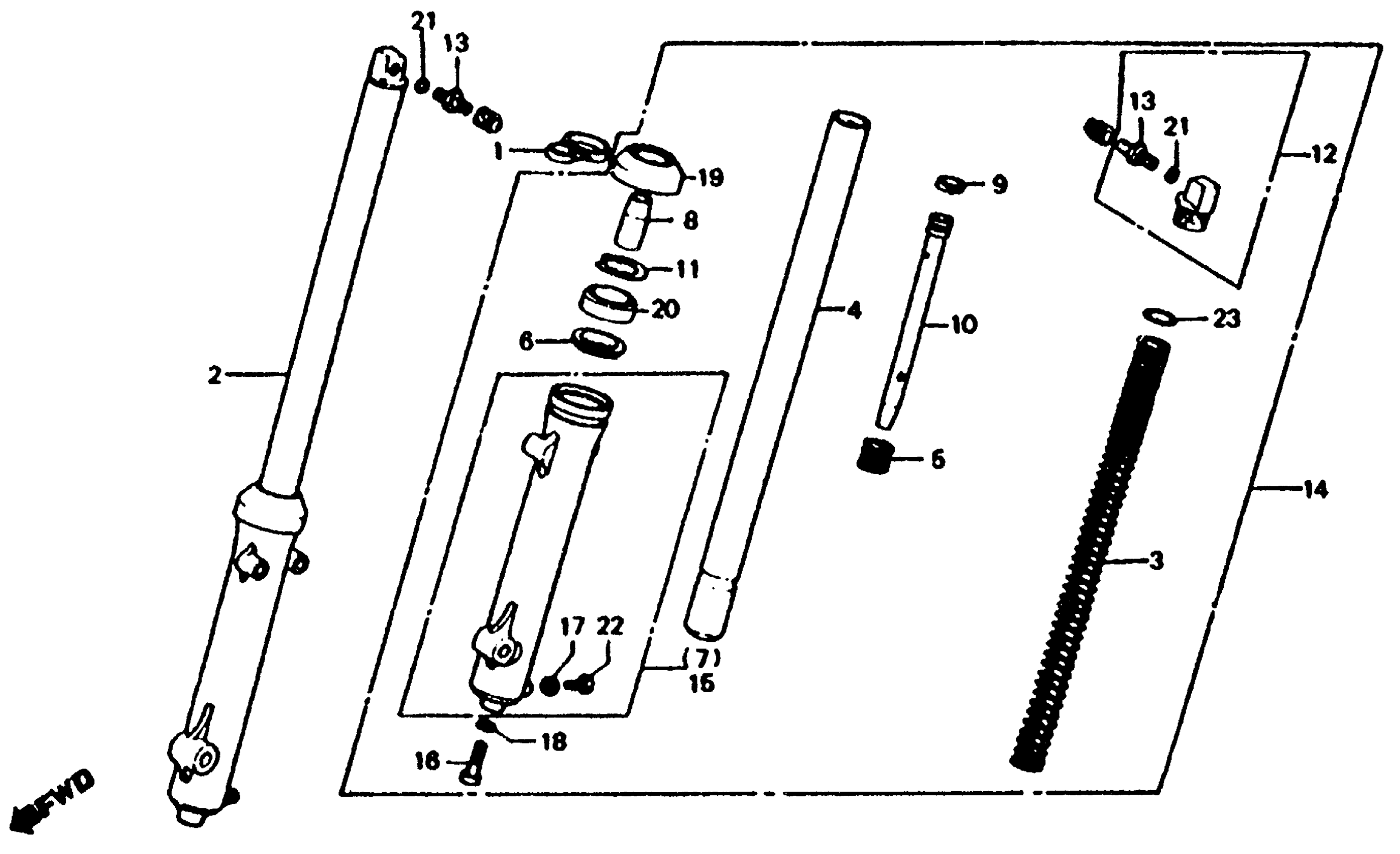

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 FRONT SHOCK ABSORBER 82-83 Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-399-620

Unavailable

2

SHOCK ABSORBER ASSY., R. FR.

51400-427-761

Unavailable

3

SPRING, FR. FORK

51401-427-761

Unavailable

4

PIPE, FR. FORK

51410-437-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

6

RING, BACK-UP

51412-446-003

Unavailable

7

CASE, R. (LOWER) (NOT AVAILABLE)

51421-427-761

Unavailable

8

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

8

PIECE, OIL LOCKING

51432-447-731

$27.42

9

RING, PISTON

51437-373-781

Unavailable

10

PIPE, SEAT

51440-437-003

Unavailable

11

CIRCLIP (INNER) (43MM) (NOT AVAILABLE)

51447-KB2-003

Unavailable

12

BOLT ASSY., FR. FORK

51450-427-761

Unavailable

13

VALVE, AIR (SHOWA)

51456-469-013

$33.69

14

SHOCK ABSORBER ASSY., L. FR.

51500-427-761

Unavailable

15

CASE, L. (LOWER) (NOT AVAILABLE)

51521-427-761

Unavailable

16

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

16

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

17

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

18

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

19

DUST SEAL (SHOWA)

91254-437-003

$15.16

20

OIL SEAL (31X43X10)

91255-GAA-003

$20.00

20

OIL SEAL (31X43X10) This part replaces 91255-446-013.

91255-GAA-003

$20.00

21

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

21

O-RING (5.8X1.9)

91305-323-000

$2.92

21

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

22

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

23

O-RING (23X2.8)

94608-50000

$1.49
