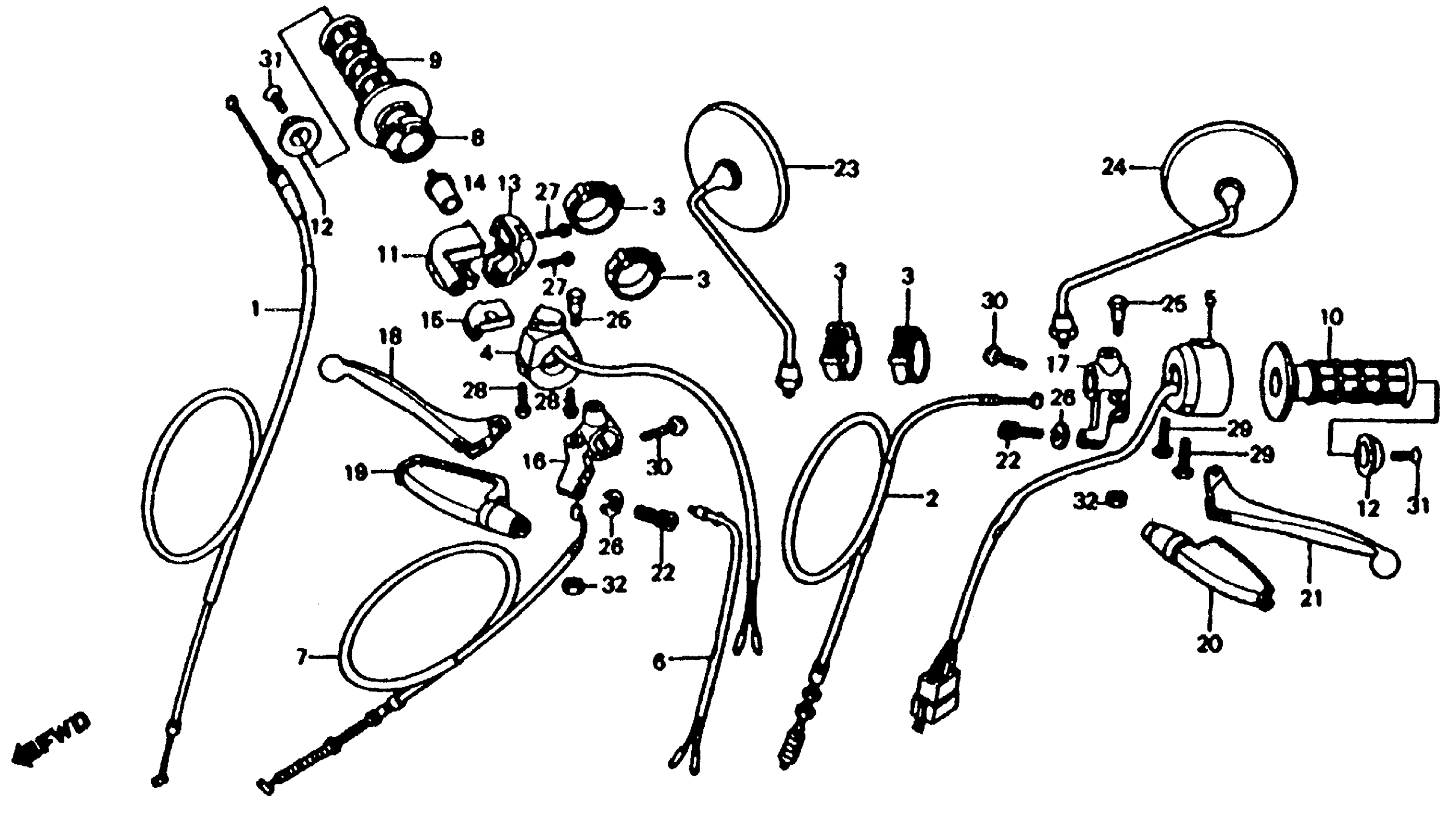

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 CONTROL LEVERS + SWITCHES + CABLES 83 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-446-740

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KB1-600.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-KB1-970.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-KB5-000.

22870-KF9-900

$35.45

2

CABLE, CLUTCH

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-383-830.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-437-000.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-965-000.

22870-KF9-900

$35.45

2

CABLE, CLUTCH This part replaces 22870-965-010.

22870-KF9-900

$35.45

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., ENGINE STOP

35130-KB7-003

Unavailable

5

SWITCH ASSY., TURN SIGNAL (TOYO) (NOT AVAILABLE)

35200-KB7-781

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

7

CABLE, FR. BRAKE

45450-KF9-P00

$35.16

7

CABLE, FR. BRAKE This part replaces 45450-427-770.

45450-KF9-P00

$35.16

7

CABLE, FR. BRAKE This part replaces 45450-437-000.

45450-KF9-P00

$35.16

7

CABLE, FR. BRAKE This part replaces 45450-437-010.

45450-KF9-P00

$35.16

8

PIPE, THROTTLE GRIP This part replaces 53141-437-000.

53141-437-010

Unavailable

8

PIPE, THROTTLE GRIP

53141-437-010

Unavailable

9

GRIP, R. HANDLE

53165-MG2-000

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-435-000.

53165-MG2-000

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-437-000.

53165-MG2-000

Unavailable

10

GRIP, L. HANDLE

53166-437-000

Unavailable

11

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$20.89

11

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$20.89

12

GUARD, HANDLEBAR END

53167-427-770

Unavailable

13

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$19.52

13

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$19.52

14

HOLDER, R. CONTROL LEVER END GUARD

53168-391-670

Unavailable

15

SLIDER, THROTTLE

53169-KA2-000

$4.85

16

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

17

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

18

LEVER, R. HANDLEBAR

53175-399-700

$34.10

19

COVER, R. HANDLEBAR

53176-428-010

$10.00

20

COVER, L. HANDLEBAR

53177-430-000

$11.00

21

LEVER, L. HANDLEBAR

53178-399-700

$28.00

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

23

MIRROR, R.

88110-333-611

$37.14

24

MIRROR, L.

88120-333-611

Unavailable

25

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW, PAN (5X22)

93500-05022-0A

$1.49

29

SCREW, PAN (5X32)

93500-05032-0A

$1.49

30

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

31

SCREW, OVAL (6X28)

93700-06028-0G

Unavailable

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
