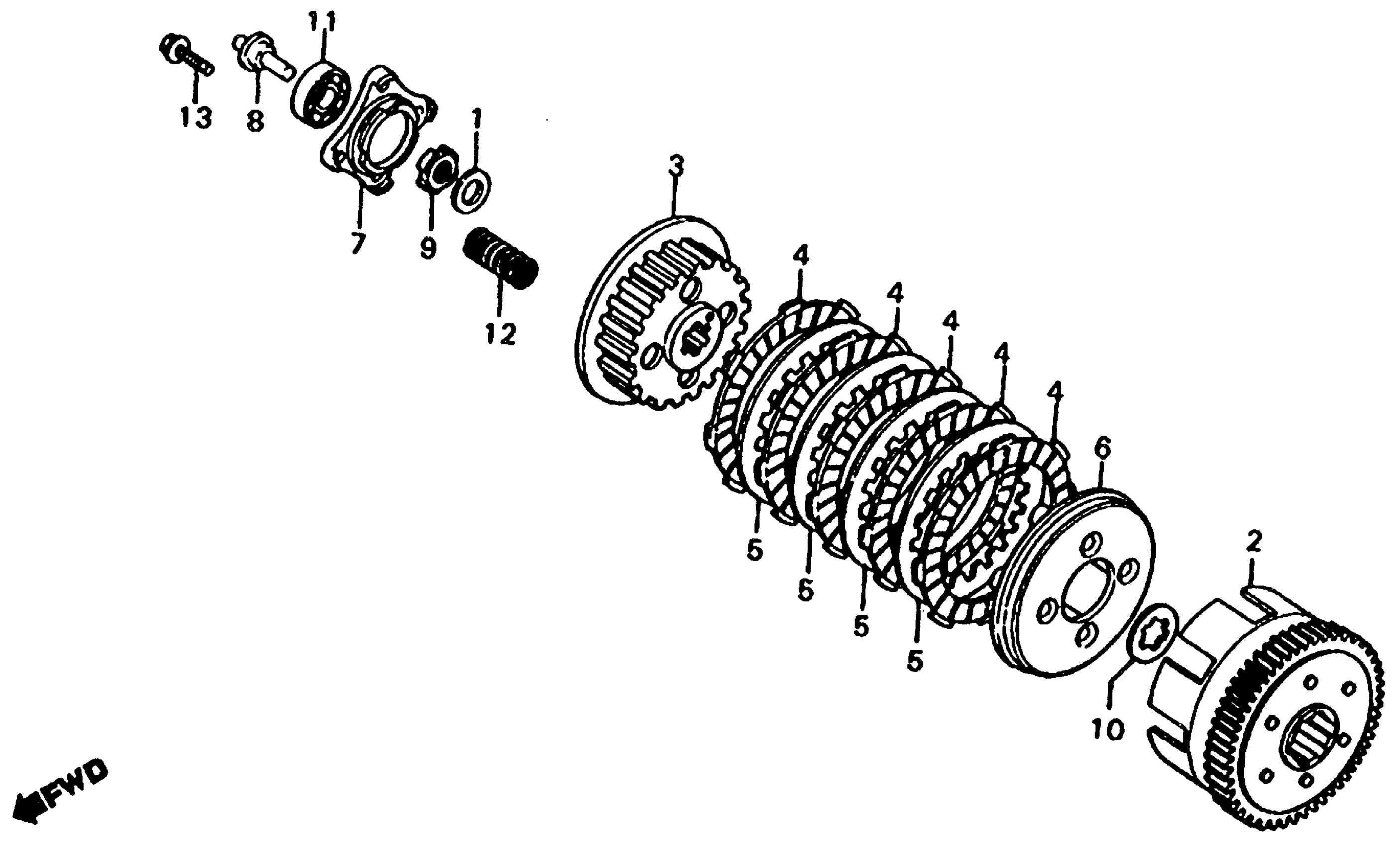

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 CLUTCH Diagram

#

Description
Price

1

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

2

CLUTCH (OUTER)

22100-437-020

$325.33

3

CENTER, CLUTCH

22121-KCS-650

$36.58

3

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$36.58

4

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

4

DISK, CLUTCH FRICTION

22201-166-000

$17.44

5

PLATE, CLUTCH

22311-KN4-680

$6.31

5

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

6

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$30.91

6

PLATE, CLUTCH PRESSURE

22350-107-010

$30.91

7

PLATE, CLUTCH LIFTER

22361-437-000

$14.82

8

ROD, CLUTCH LIFTER

22366-KCN-000

Unavailable

8

ROD, CLUTCH LIFTER This part replaces 22366-437-000.

22366-KCN-000

Unavailable

9

NUT, LOCK (16MM)

90231-KCS-651

$4.21

9

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

10

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

11

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

11

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

11

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

11

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

12

SPRING, CLUTCH

22401-KT0-000

$5.10

12

SPRING, CLUTCH This part replaces 22401-446-770.

22401-KT0-000

$5.10

13

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35
