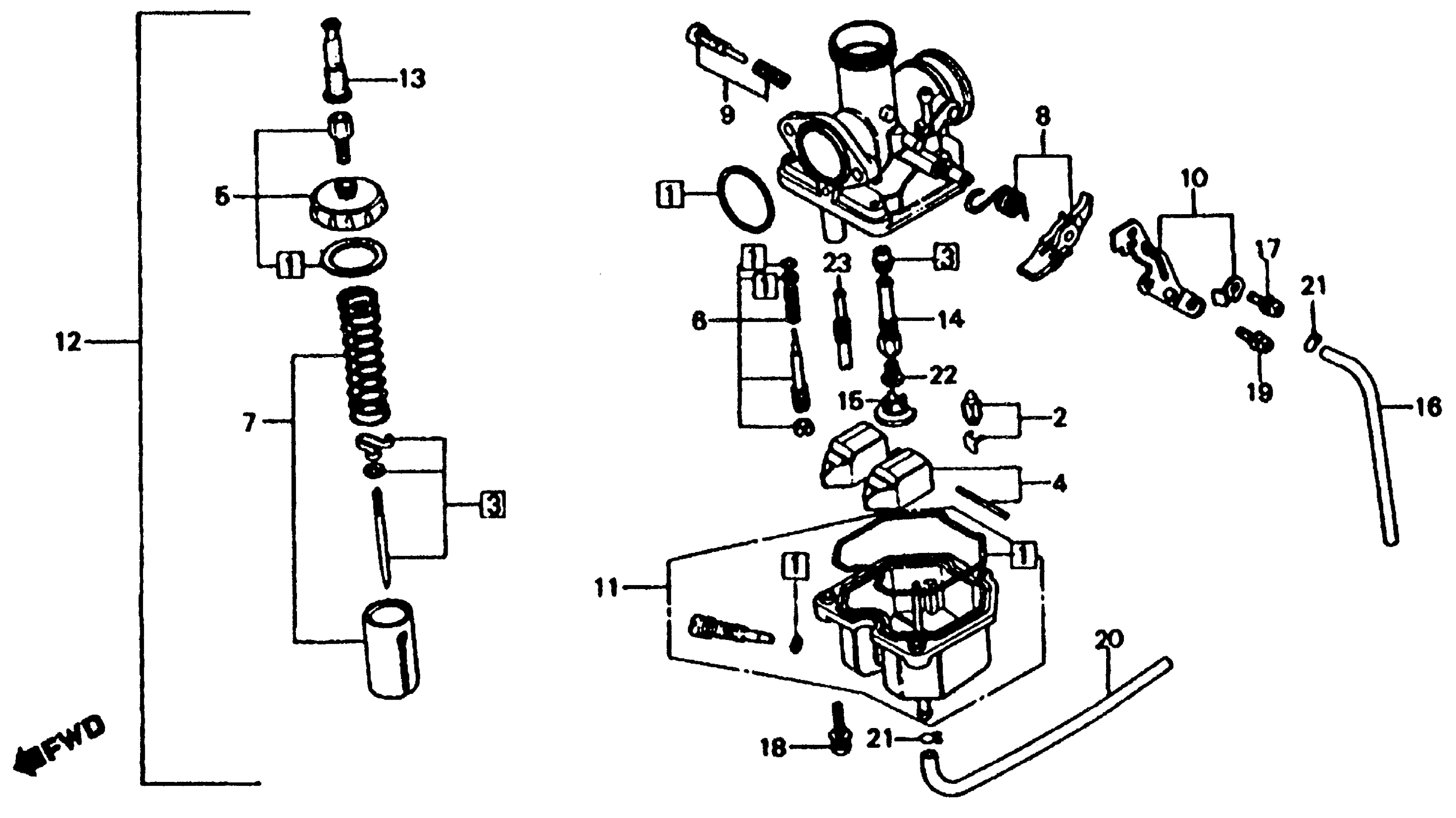

Honda XL185SA (83) MOTORCYCLE, JPN, VIN# JH2MD020-DK400003 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HB5-305

$27.44

1

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

2

VALVE, FLOAT

16155-397-971

$41.45

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-KF9-671

Unavailable

4

FLOAT SET

16013-439-921

$76.36

5

TOP SET This part replaces 16014-324-680.

16014-324-681

Unavailable

5

TOP SET

16014-324-681

Unavailable

6

SCREW SET (NOT AVAILABLE) This part replaces 16016-435-771.

16016-MG2-791

Unavailable

7

VALVE SET, THROTTLE

16022-KF9-671

Unavailable

8

LEVER SET, CHOKE

16025-427-004

$29.95

9

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

10

PLATE SET, STAY

16035-427-004

Unavailable

11

CHAMBER SET, FLOAT

16045-399-014

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KF9-671.

16100-KF9-672

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KF9-672

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

HOLDER, NEEDLE JET

16165-427-771

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

PIPE, AIR VENT

16199-427-004

Unavailable

17

SCREW-WASHER (4X10)

93892-04010-08

$1.49

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

SCREW-WASHER (5X12)

93892-05012-08

$1.49

20

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#102)

99101-GHB-1020

$6.40

22

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40

22

JET, MAIN (#98) | (Optional).

99101-GHB-0980

$6.40

22

JET, MAIN (#98) | (Optional). This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

23

JET, SLOW (#35)

99103-KBH-0350

Unavailable

23

JET, SLOW (#35) This part replaces 99103-427-0350.

99103-KBH-0350

Unavailable
