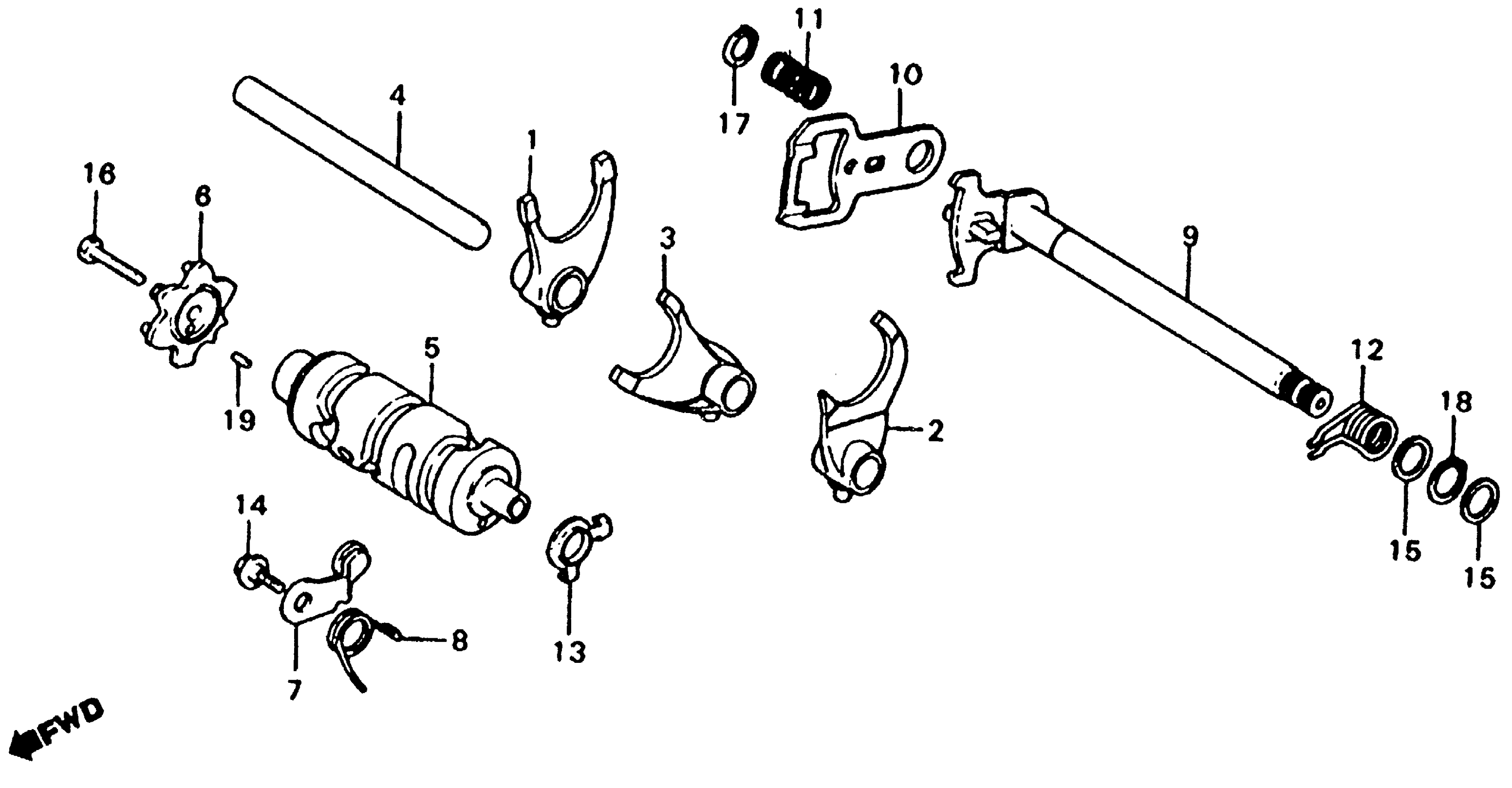

Honda XL185SA (82) MOTORCYCLE, JPN, VIN# JH2MD020-CK300003 TO JH2MD020-CK307487 SHIFT DRUM + SHIFT FORK Diagram

FORK, R. GEARSHIFT | Use up to Engine SN 5306408 This part replaces 24211-437-000.

24211-437-010

Unavailable

FORK, R. GEARSHIFT

24211-437-010

Unavailable

FORK, R. GEARSHIFT | Use up to Engine SN 5306408

24211-437-010

Unavailable

FORK, L. GEARSHIFT This part replaces 24221-427-000.

24221-427-010

$74.49

FORK, L. GEARSHIFT

24221-427-010

$74.49

FORK, CENTER GEARSHIFT This part replaces 24231-107-000.

24231-107-010

Unavailable

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

DRUM, GEARSHIFT This part replaces 24301-427-000.

24301-427-010

Unavailable

DRUM, GEARSHIFT

24301-427-010

Unavailable

CAM, GEARSHIFT

24411-437-000

Unavailable

STOPPER, GEARSHIFT DRUM

24430-437-000

$17.25

SPRING, SHIFT DRUM STOPPER

24435-437-000

Unavailable

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 5306408

24610-437-000

Unavailable

SPINDLE, GEARSHIFT | Use from Engine SN 5306409

24610-446-650

Unavailable

PLATE, GEARSHIFT | Use up to Engine SN 5306408

24621-437-000

Unavailable

PLATE, GEARSHIFT | Use from Engine SN 5306409

24621-446-650

$13.10

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

SPRING, GEARSHIFT RETURN

24651-437-000

$8.55

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, THRUST (14MM)

90451-001-000

$3.67

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

ROLLER (4X10)

96220-40100

$1.49
