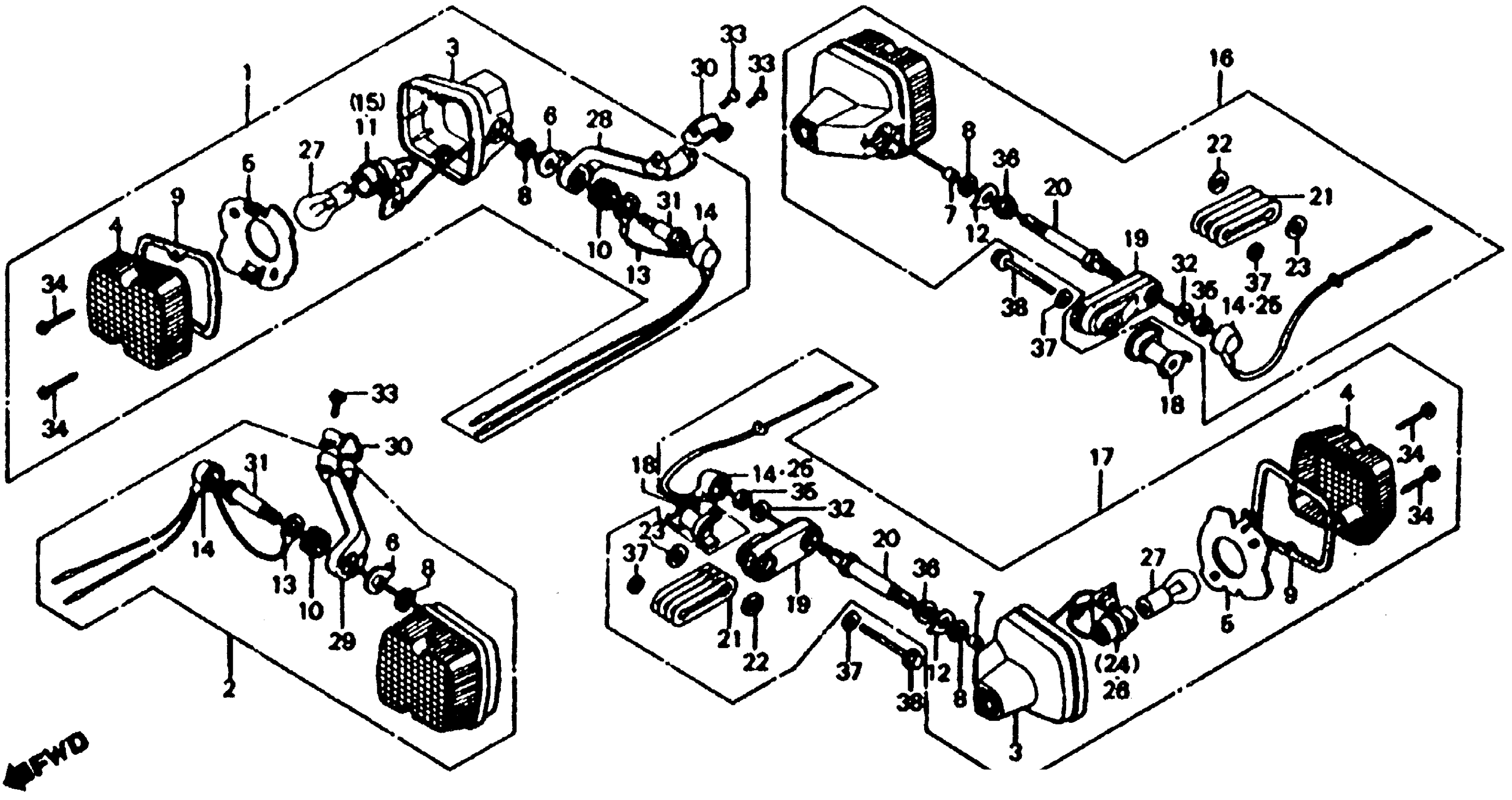

Honda XL185SA (80) MOTORCYCLE, JPN, VIN# MD02-5000003 TO MD02-5009422 TURN SIGNAL 79-82 Diagram

#

Description
Price

1

TURN SIGNAL SET, R. FR.

33300-437-671

Unavailable

2

TURN SIGNAL SET, L. FR.

33350-437-671

Unavailable

3

BASE, TURN SIGNAL

33401-428-003

$26.78

4

LENS, TURN SIGNAL This part replaces 33402-428-671.

33402-428-672

Unavailable

4

LENS, TURN SIGNAL

33402-428-672

Unavailable

5

REFLECTOR (NOT AVAILABLE)

33403-428-671

Unavailable

6

STOPPER, FR. TURN SIGNAL (NOT AVAILABLE)

33404-437-000

$4.41

7

COLLAR, TURN SIGNAL BASE (NOT AVAILABLE)

33405-428-611

Unavailable

8

SEAL, GASKET (NOT AVAILABLE)

33406-428-003

Unavailable

9

GASKET, LENS (NOT AVAILABLE)

33407-428-003

Unavailable

10

RUBBER, FR. TURN SIGNAL MOUNTING (NOT AVAILABLE) | Use up to Frame SN 5002325

33408-428-013

Unavailable

10

RUBBER, FR. TURN SIGNAL MOUNTING | Use from Frame SN 5002326

33408-435-000

Unavailable

11

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE)

33410-428-671

Unavailable

12

WASHER, TURN SIGNAL BASE

33411-428-611

Unavailable

13

WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)

33415-428-010

Unavailable

14

COVER, TURN SIGNAL STAY (NOT AVAILABLE) | Use up to Frame SN 5002325

33425-428-000

Unavailable

14

COVER, TURN SIGNAL STAY (NOT AVAILABLE) | Use from Frame SN 5002326

33425-428-003

Unavailable

15

SOCKET, L. FR. TURN SIGNAL

33460-428-671

Unavailable

16

TURN SIGNAL SET, R. RR. (NOT AVAILABLE)

33500-437-671

Unavailable

17

TURN SIGNAL SET, L. RR. (NOT AVAILABLE)

33550-437-671

Unavailable

18

STAY, RR. TURN SIGNAL

33602-437-000

Unavailable

19

RUBBER, RR. TURN SIGNAL (NOT AVAILABLE)

33604-437-000

Unavailable

20

BOLT, RR. TURN SIGNAL (NOT AVAILABLE)

33605-437-000

Unavailable

21

SPRING, RR. TURN SIGNAL (NOT AVAILABLE)

33607-437-000

Unavailable

22

WASHER, RR. TURN SIGNAL SPRING (NOT AVAILABLE)

33608-437-000

Unavailable

23

WASHER B, RR. TURN SIGNAL (NOT AVAILABLE)

33609-437-000

Unavailable

24

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-437-670

Unavailable

25

COVER, TURN SIGNAL WIRE | Use from Frame SN 5002326

33625-437-003

Unavailable

26

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-437-670

Unavailable

27

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

28

BRACKET, R. FR. TURN SIGNAL

53101-437-000

Unavailable

29

BRACKET, L. FR. TURN SIGNAL

53102-437-000

$61.56

30

HOLDER, TURN SIGNAL STAY

53103-428-000

Unavailable

31

BOLT, SETTING (NOT AVAILABLE)

90129-428-000

Unavailable

32

WASHER, PLAIN (10MM)

90511-921-000

$1.49

33

SCREW, PAN (5X18)

93500-05018-0A

$1.49

34

SCREW, TAPPING (4X25) (NOT AVAILABLE)

93901-24610

Unavailable

35

NUT, HEX. (10MM)

94002-10000-0S

$4.06

36

NUT, FLANGE (10MM)

94050-10000

$1.59

36

NUT, FLANGE (10MM) | Use from Frame SN 5002326 This part replaces 90201-428-003.

94050-10000

$1.59

37

WASHER, PLAIN (6MM)

94103-06800

$1.49

38

BOLT, FLANGE (6X70) This part replaces 95700-06070-08.

95701-06070-08

$2.30

38

BOLT, FLANGE (6X70)

95701-06070-08

$2.30
