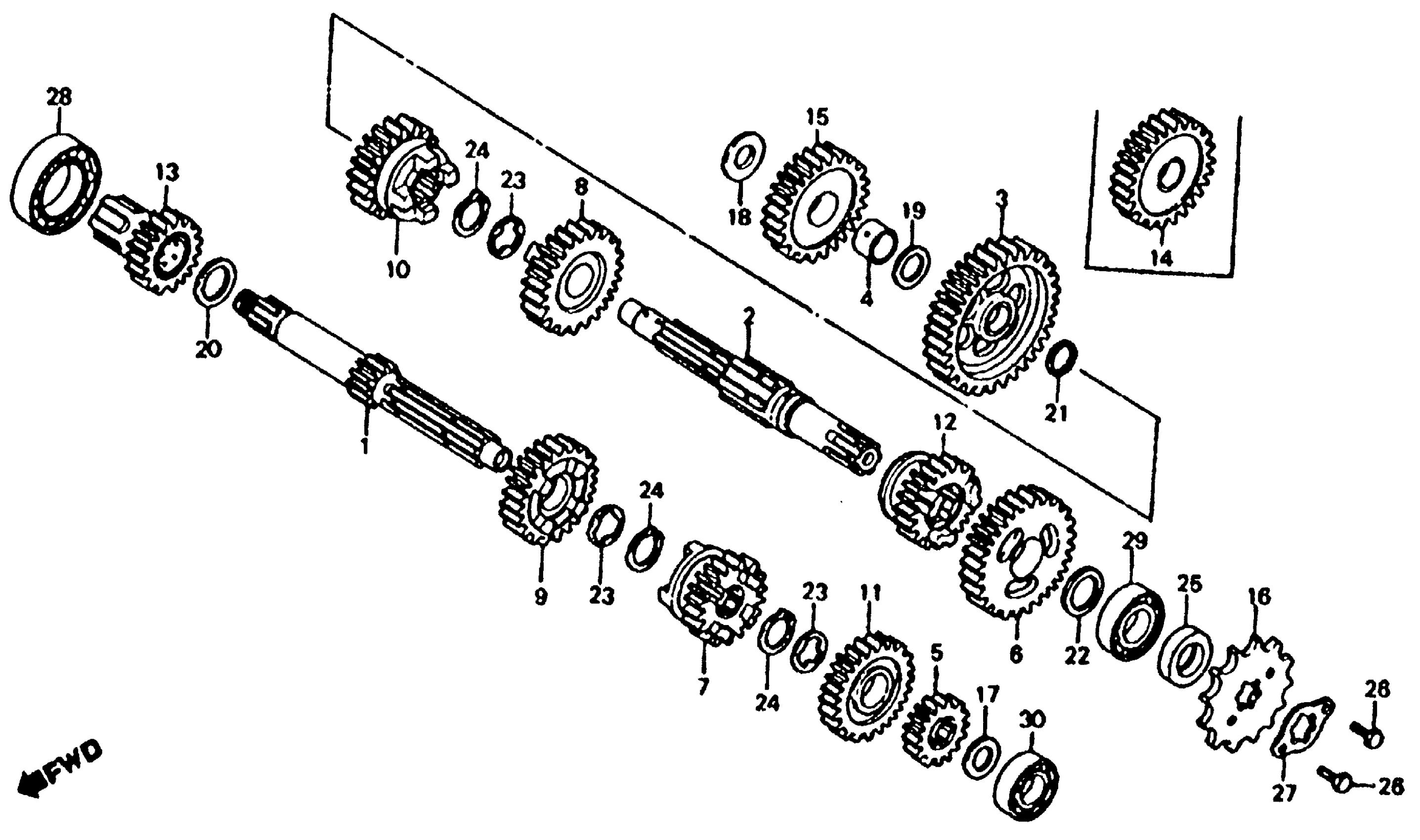

Honda XL185SA (79) MOTORCYCLE, JPN, VIN# L185S-5001103 TO L185S-5017934 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-427-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-427-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23421-427-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23421-427-010

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-427-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE) This part replaces 23451-427-000.

235A1-427-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

235A1-427-000

Unavailable

7

GEAR, MAINSHAFT THIRD (22T)

23461-427-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T)

23471-331-670

$48.95

9

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

10

GEAR, COUNTERSHAFT FOURTH (25T)

23491-427-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (27T) This part replaces 23501-427-000.

23501-427-010

Unavailable

11

GEAR, MAINSHAFT FIFTH (27T)

23501-427-010

Unavailable

12

GEAR, COUNTERSHAFT TOP (21T) (NOT AVAILABLE) GEAR, COUNTERSHAFT FIFTH (21T)

23511-427-000

Unavailable

13

GEAR, STARTER (19T)

23520-437-000

Unavailable

14

GEAR, IDLE STARTER (28T) (NOT AVAILABLE) This part replaces 23530-437-000.

23530-437-305

Unavailable

14

GEAR, IDLE STARTER (28T) (NOT AVAILABLE)

23530-437-305

Unavailable

16

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

16

SPROCKET, DRIVE (14T) This part replaces 23801-437-000.

23801-KF9-505

$38.11

17

WASHER, THRUST (15MM)

90451-107-000

$1.49

18

WASHER, THRUST (15MM)

90451-365-000

$3.08

19

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

20

WASHER A, THRUST (20MM)

90453-107-000

$2.25

21

WASHER, THRUST (16.7MM) (NOT AVAILABLE)

90453-427-000

Unavailable

22

WASHER, THRUST (20MM)

90454-107-000

$1.80

23

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

24

SET-RING (20MM)

90605-200-000

$2.92

25

OIL SEAL (20X34X7) (ARAI) | Use up to Engine SN 5001886 This part replaces 91201-030-003.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) | Use up to Engine SN 5001886 This part replaces 91201-030-013.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) | Use up to Engine SN 5001886

91201-030-015

Unavailable

25

OIL SEAL (20X34X7)

91201-030-015

Unavailable

25

OIL SEAL (20X34X7) (ARAI) | Use up to Engine SN 5001886 This part replaces 91201-030-023.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) | Use up to Engine SN 5001886 This part replaces 91201-030-025.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI) | Use up to Engine SN 5001886

91201-030-033

$5.54

25

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

26

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

26

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

27

PLATE B, FIXING

95014-92100

$1.49

28

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

29

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

30

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$11.02
