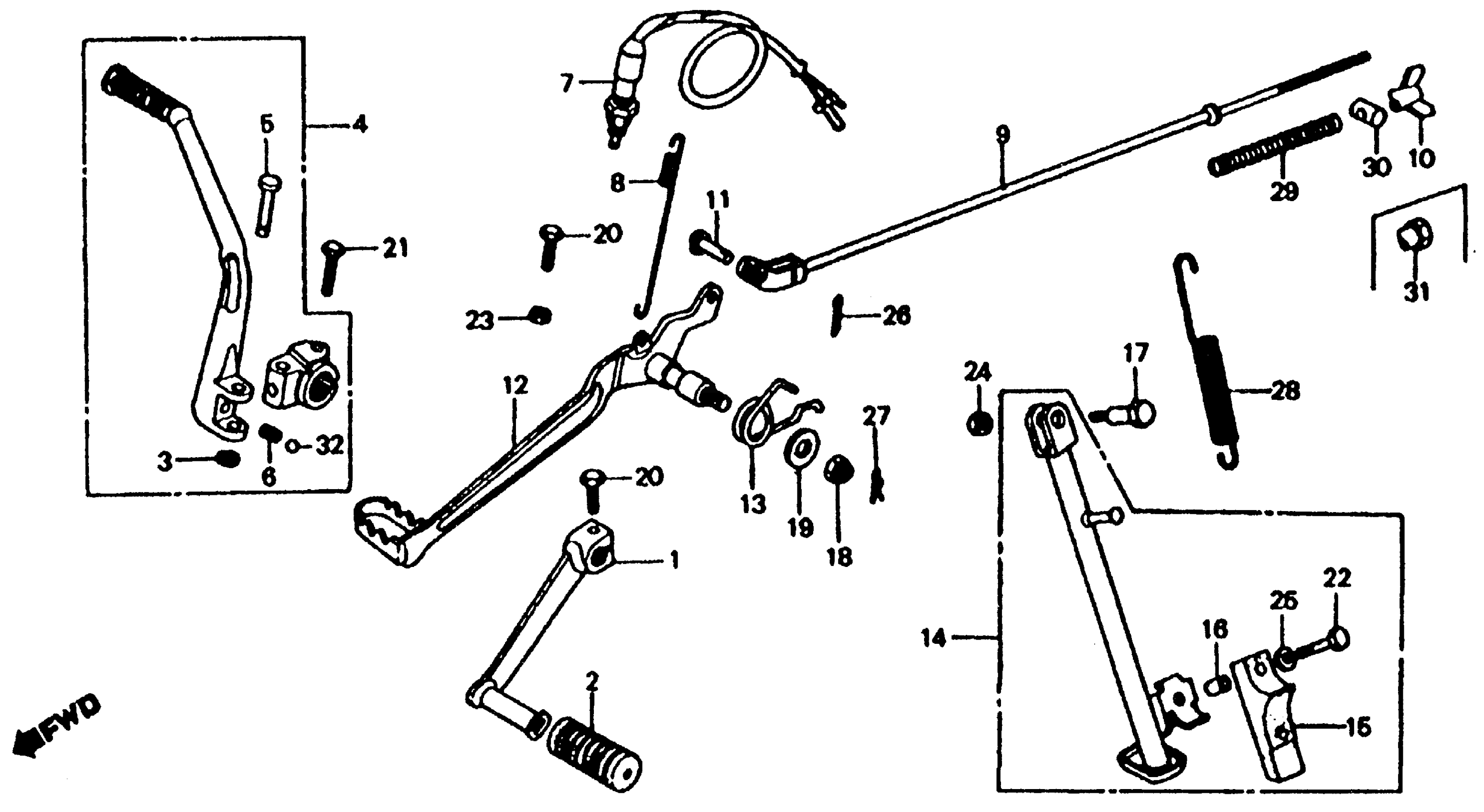

Honda XL185SA (79) MOTORCYCLE, JPN, VIN# L185S-5001103 TO L185S-5017934 GEARSHIFT PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-437-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

CLIP, KICK STARTER ARM

28293-124-000

$2.41

4

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-437-000

Unavailable

5

PIN, KICK STARTER (NOT AVAILABLE)

28321-437-000

Unavailable

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-149-003.

35350-KJ9-405

$16.97

8

SPRING, STOP SWITCH

35357-361-010

Unavailable

9

ROD, RR. BRAKE

43451-437-000

Unavailable

11

PIN, BRAKE ROD JOINT

43471-437-000

Unavailable

12

PEDAL ASSY., BRAKE This part replaces 46500-437-000.

46500-437-010

Unavailable

12

PEDAL ASSY., BRAKE

46500-437-010

Unavailable

13

SPRING, BRAKE PEDAL

46514-437-000

Unavailable

14

BAR ASSY., SIDE STAND This part replaces 50540-437-670.

50540-437-671

Unavailable

14

BAR ASSY., SIDE STAND

50540-437-671

Unavailable

15

RUBBER, STAND

50548-356-700

$10.50

16

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

17

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

18

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

19

WASHER, EX. MANIFOLD

90501-579-020

$5.64

20

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

20

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

21

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

22

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

23

NUT, HEX. (6MM)

94002-06000-0S

$1.49

24

NUT, HEX. (10MM)

94002-10000-0S

$4.06

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

PIN, COTTER (2.0X15)

94201-20150

$1.49

27

PIN, LOCK (10MM)

94251-10000

$1.49

28

SPRING D, SIDE STAND

95014-72402

$2.92

29

SPRING A, BRAKE ROD

95014-73100

$1.49

30

JOINT, BRAKE ARM

95015-32001

$1.49

31

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
