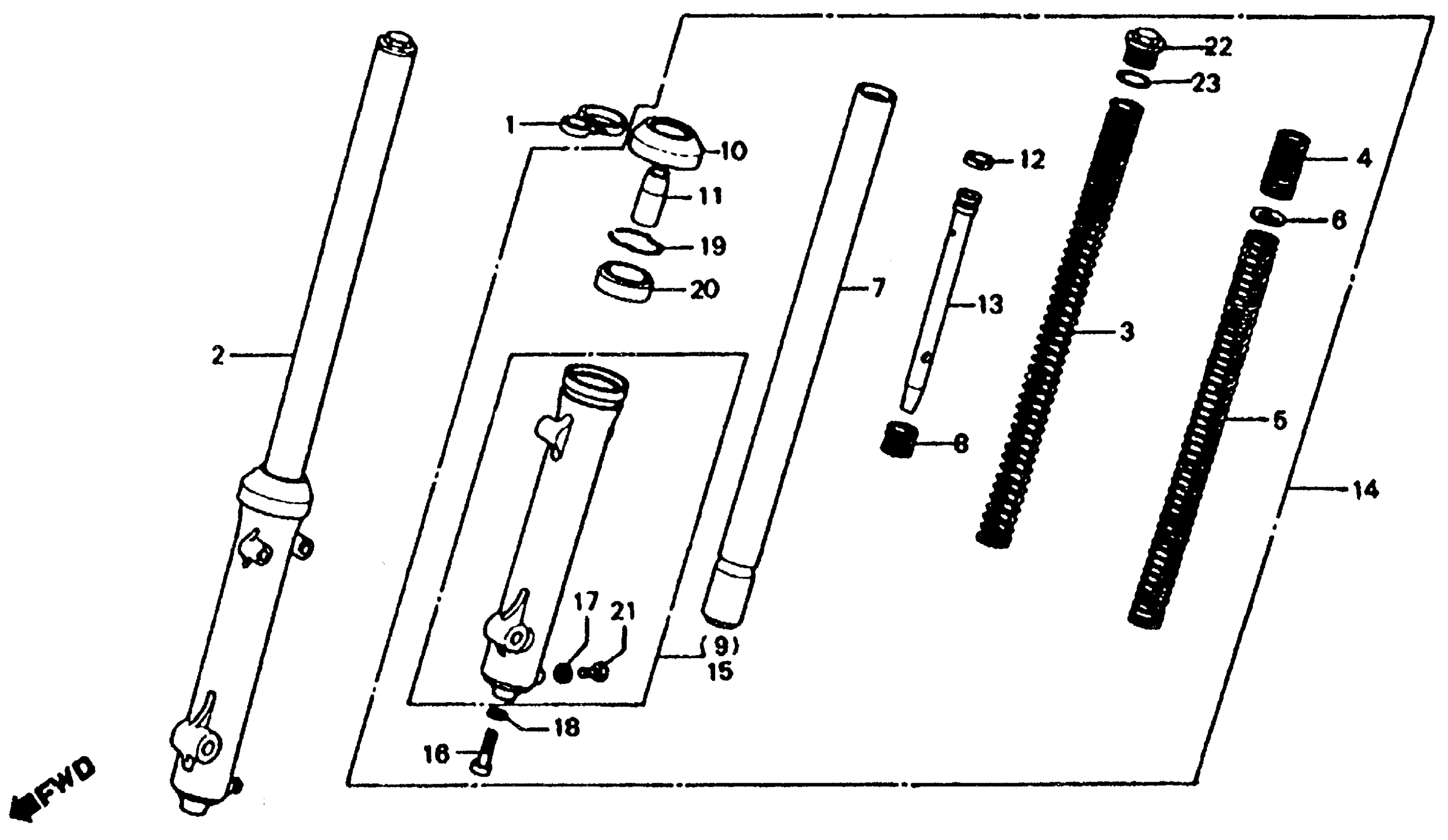

Honda XL185SA (79) MOTORCYCLE, JPN, VIN# L185S-5001103 TO L185S-5017934 FRONT SHOCK ABSORBER 79-81 Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-399-620

Unavailable

2

SHOCK ABSORBER, R. FR. (NOT AVAILABLE)

51400-437-003

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-437-003

Unavailable

7

PIPE, FR. FORK

51410-437-003

Unavailable

8

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

9

CASE, R. (LOWER) (NOT AVAILABLE) CASE, R. (LOWER) (SHOWA)

51421-437-003

Unavailable

10

DUST SEAL (SHOWA) This part replaces 51425-437-003.

91254-437-003

$15.16

10

DUST SEAL (SHOWA)

91254-437-003

$15.16

11

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

11

PIECE, OIL LOCKING

51432-447-731

$27.42

12

RING, PISTON

51437-373-781

Unavailable

13

PIPE, SEAT

51440-437-003

Unavailable

14

SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE)

51500-437-003

Unavailable

15

CASE, L. (LOWER) (NOT AVAILABLE) CASE, L. (LOWER) (SHOWA)

51521-437-003

Unavailable

16

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

16

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

17

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

18

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

19

RING, OIL SEAL STOP

90601-354-000

$5.13

20

OIL SET, FR. OIL FILTER

51495-331-405

$19.75

20

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.75

21

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

21

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

21

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

22

BOLT D1, FORK

94605-27101

$8.00

23

O-RING (23X2.4)

94608-30000

$1.49
