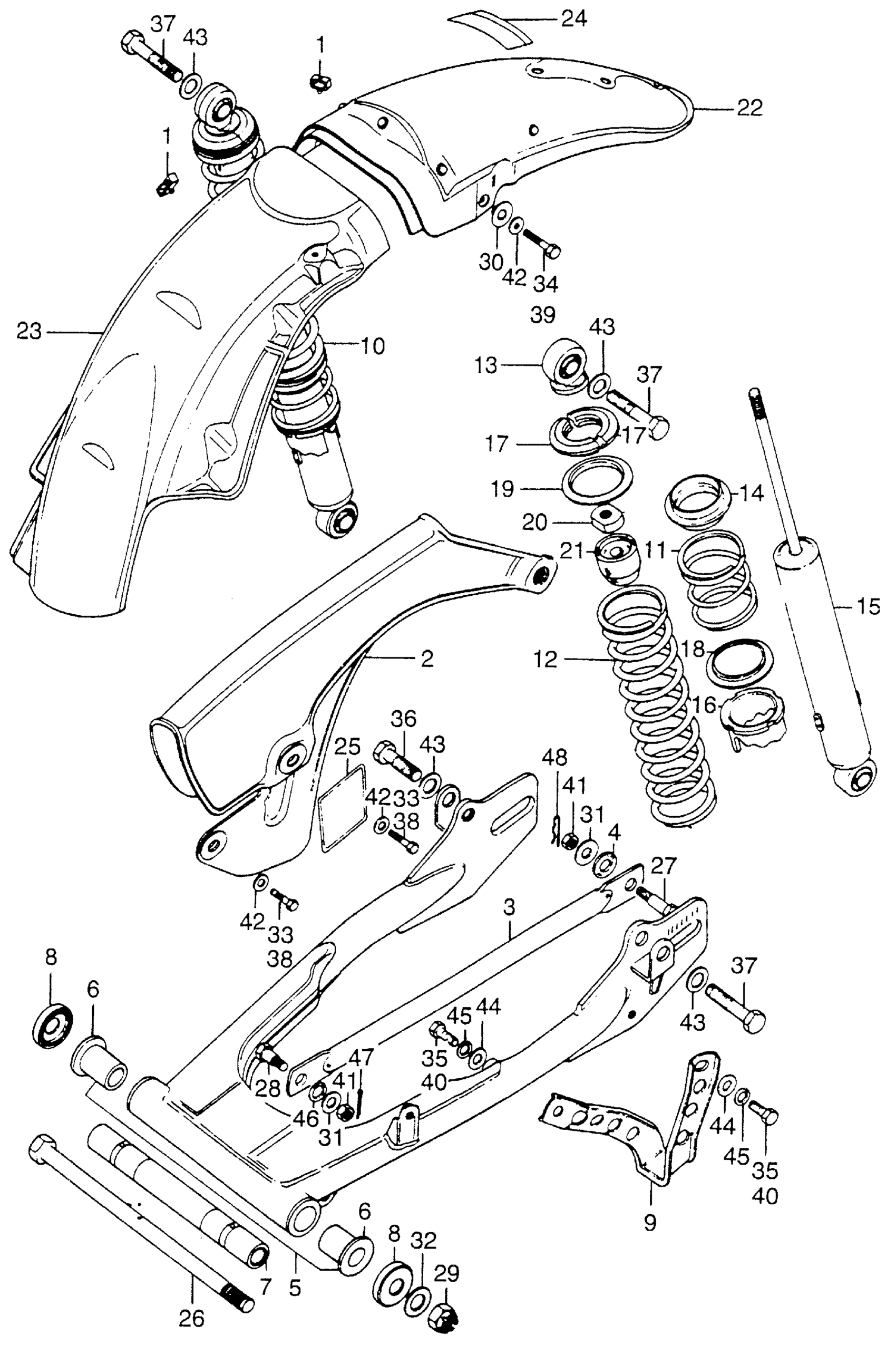

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 SWINGARM + REAR SHOCK ABSORBER + REAR FENDER Diagram

#

Description
Price

1

GROMMET, CABLE

32985-300-000

$3.35

2

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-362-000

Unavailable

3

ARM, RR. BRAKE STOPPER

43431-362-010

Unavailable

4

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

5

SWINGARM, RR. *NH1* (BLACK)

52100-362-010B

Unavailable

6

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-362-000

Unavailable

8

CAP, DUST SEAL

52144-362-000

Unavailable

9

GUIDE, CHAIN (NOT AVAILABLE)

52156-362-000

Unavailable

10

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-362-000

Unavailable

11

SPRING A, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-362-000

Unavailable

12

SPRING B, RR. SHOCK ABSORBER

52402-362-000

Unavailable

13

JOINT (UPPER) (NOT AVAILABLE)

52403-357-000

Unavailable

14

JOINT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52404-329-010

Unavailable

15

DAMPER, RR. (NOT AVAILABLE)

52410-362-000

Unavailable

16

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-329-000

Unavailable

17

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

18

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

19

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

20

NUT, LOCK (10MM) (NOT AVAILABLE)

52482-312-000

Unavailable

21

RUBBER, STOPPER (NOT AVAILABLE) This part replaces 52517-312-000.

52517-358-771

Unavailable

22

FENDER A, RR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-329-000MA

Unavailable

23

FENDER B, RR. (NOT AVAILABLE)

80105-329-010

Unavailable

24

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-362-670

Unavailable

25

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-362-670

Unavailable

26

BOLT, CAP (10MM) (NOT AVAILABLE)

90120-362-000

Unavailable

27

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

27

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

28

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

29

NUT, LOCK (14MM)

90354-268-000

$6.78

30

WASHER (6X20)

90512-300-000

$3.08

31

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

32

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

32

WASHER (14X26)

90527-634-670

Unavailable

36

BOLT, HEX. (10X30) This part replaces 93000-10030-0A.

93101-10030-0A

Unavailable

37

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-10040-0A.

93101-10040-0A

Unavailable

37

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-10040-0A.

93101-10040-0A

Unavailable

37

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.)

93101-10040-0A

Unavailable

38

BOLT-WASHER (6X14) (NOT AVAILABLE)

90111-GC1-000

Unavailable

38

BOLT-WASHER (6X14) (NOT AVAILABLE) This part replaces 93481-06014-00.

90111-GC1-000

Unavailable

39

BOLT-WASHER (6X20) This part replaces 93411-06020-00.

93401-06020-00

$1.55

39

BOLT-WASHER (6X20) This part replaces 93481-06020-00.

93401-06020-00

$1.55

40

BOLT-WASHER (8X16) This part replaces 93413-08016-00.

93403-08016-00

Unavailable

40

BOLT-WASHER (8X16) This part replaces 93483-08016-00.

93403-08016-00

Unavailable

41

NUT, HEX. (8MM)

94001-08000-0S

$1.49

43

WASHER, PLAIN (10MM)

94101-10000

$1.49

46

WASHER, SPRING (8MM)

94111-10000

$1.49

47

PIN, COTTER (2.0X15)

94201-20150

$1.49

48

PIN, LOCK (8MM)

94251-08000

$1.49
