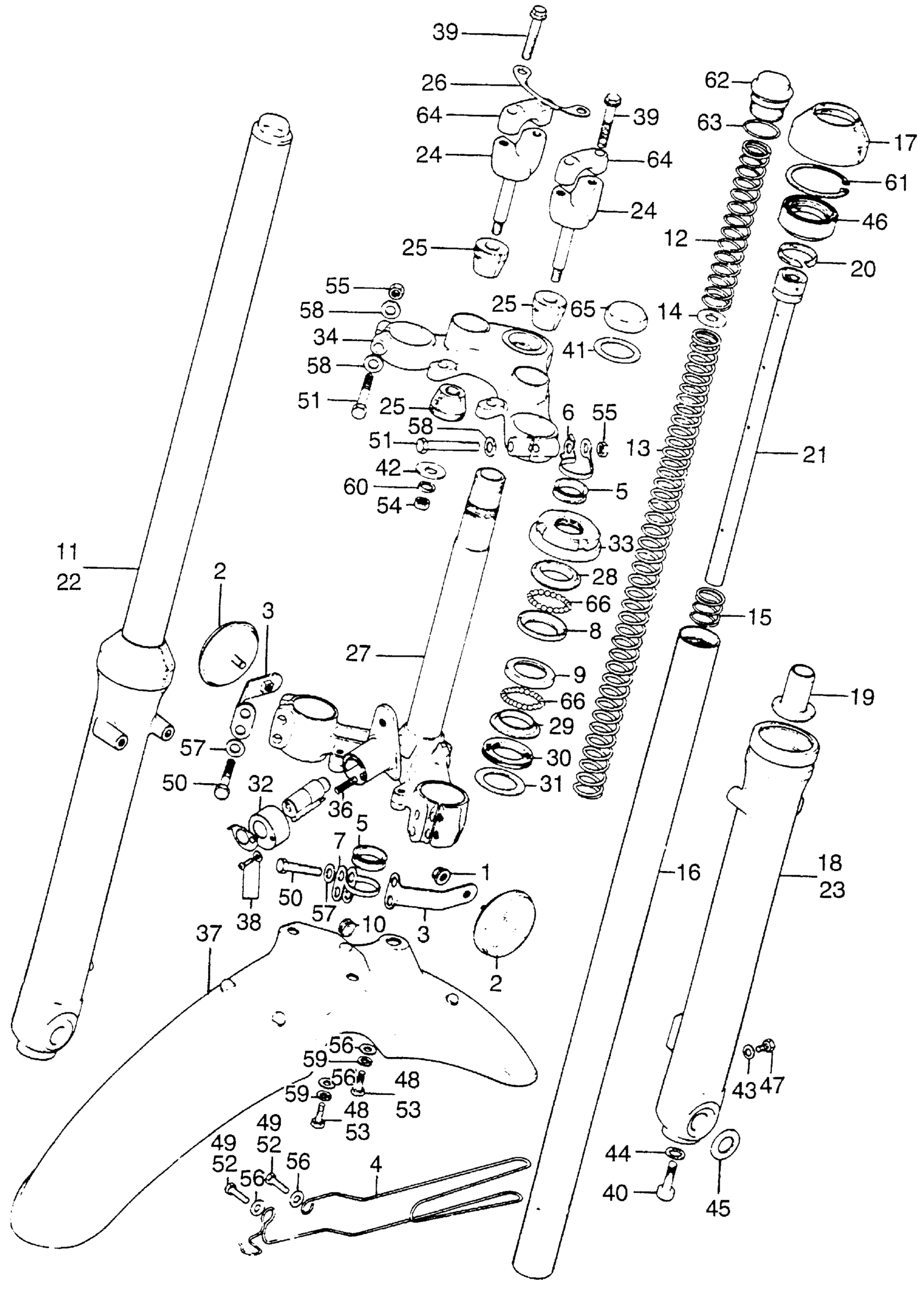

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 STEERING STEM + FRONT FENDER + FRONT FORK Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$0.60

1

NUT, FLANGE (6MM)

94050-06000

$0.60

2

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$32.91

3

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-362-770

Unavailable

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-362-010

Unavailable

5

GUIDE, CABLE (INNER)

45466-329-000

$2.82

6

GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-329-000

Unavailable

7

GUIDE B, FR. BRAKE CABLE

45468-329-000

Unavailable

8

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$19.71

8

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.71

8

RACE, STEERING BALL (UPPER)

50301-268-010

$19.71

8

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.71

8

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$19.71

8

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.71

9

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.71

9

RACE, STEERING BALL (UPPER)

50301-268-010

$19.71

9

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.71

10

PLUG

50318-041-600

$2.04

11

FORK ASSY., R. FR. This part replaces 51400-362-010.

51400-362-020

Unavailable

11

FORK ASSY., R. FR.

51400-362-020

Unavailable

12

SPRING A, FR. FORK (NOT AVAILABLE)

51401-362-010

Unavailable

13

SPRING B, FR. FORK (NOT AVAILABLE)

51402-362-020

Unavailable

14

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

15

SPRING, FR. FORK REBOUND

51412-331-770

$3.91

16

PIPE, FORK (NOT AVAILABLE)

51420-362-010

Unavailable

17

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$15.39

17

DUST SEAL (SHOWA)

91254-436-003

$15.39

18

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51431-362-010

Unavailable

19

PIECE, OIL LOCKING

51432-453-000

Unavailable

20

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

21

PIPE, SEAT

51470-362-000

Unavailable

22

FORK ASSY., L. FR. This part replaces 51500-362-010.

51500-362-020

Unavailable

22

FORK ASSY., L. FR.

51500-362-020

Unavailable

23

CASE, L. FR. FORK (LOWER) This part replaces 51531-362-010.

51531-362-020

Unavailable

23

CASE, L. FR. FORK (LOWER)

51531-362-020

Unavailable

24

HOLDER C2, HANDLEBAR This part replaces 53132-316-670.

95014-33200

Unavailable

24

HOLDER C2, HANDLEBAR

95014-33200

Unavailable

25

RUBBER, HANDLEBAR CUSHION

53133-303-000

$5.76

26

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

27

STEM, STEERING *NH1* (BLACK)

53200-362-000B

Unavailable

28

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

29

RACE, STEERING CONE (LOWER)

53212-200-305

$18.17

30

DUST SEAL, STEERING HEAD

53214-200-000

$2.80

31

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.63

32

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

33

THREAD, STEERING HEAD TOP

53220-303-000

$11.46

34

BRIDGE, FORK TOP (NOT AVAILABLE) | Use up to Frame SN 3015020

53230-453-305

Unavailable

34

BRIDGE, FORK TOP (NOT AVAILABLE) | Use up to Frame SN 3015020 This part replaces 53251-453-000.

53230-453-305

Unavailable

34

BRIDGE, FORK TOP (NOT AVAILABLE) | Use from Frame SN 3015021

53231-453-010

Unavailable

34

BRIDGE, FORK TOP (NOT AVAILABLE) | Use from Frame SN 3015021 This part replaces 53251-453-010.

53231-453-010

Unavailable

36

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

37

FENDER, FR. *NH44MS* (SPECIAL SILVER METALLIC)

61100-329-020MA

Unavailable

38

SCREW-WASHER (3X8) (NOT AVAILABLE)

90109-342-000

Unavailable

39

BOLT, FLANGE (8X36)

90111-362-000

$4.59

40

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

Unavailable

40

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

Unavailable

41

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

42

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

43

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

44

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

45

WASHER (15.2X25)

90557-230-000

$2.21

46

OIL SET, FR. OIL FILTER

51495-331-405

$18.13

46

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$18.13

47

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.84

47

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.84

47

BOLT, HEX. (6X8)

92101-06008-0B

$1.84

50

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.80

50

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

50

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

51

BOLT, HEX. (8X50) | Use up to Frame SN 3015020 This part replaces 92000-08050-0B.

92101-08050-0B

Unavailable

51

BOLT, FLANGE (7X54) | Use from Frame SN 3015021

90155-369-000

$5.74

51

BOLT-WASHER (6X16)

93401-06016-00

$1.63

51

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.63

51

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.63

52

BOLT-WASHER (6X14) (NOT AVAILABLE)

93483-06014-00

Unavailable

53

BOLT-WASHER (6X14) (NOT AVAILABLE)

93483-06014-00

Unavailable

54

NUT, HEX. (8MM)

94001-08000-0S

$1.31

55

NUT, HEX. (8MM) | Use up to Frame SN 3015020

94001-08020-0S

$0.82

55

NUT, FLANGE (7MM) | Use from Frame SN 3015021

90355-369-000

$4.73

57

WASHER, PLAIN (8MM)

94102-08000

$0.87

58

WASHER, FLAT (8MM) | Use up to Frame SN 3015020

94102-08200

$0.79

59

WASHER, SPRING (6MM)

94111-06000

$0.87

60

WASHER, SPRING (8MM)

94111-08000

Unavailable

61

RING, OIL SEAL STOP

90601-354-000

$4.89

62

BOLT D1, FORK

94605-27101

$7.64

63

O-RING (23X2.4)

94608-30000

$1.10

64

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$11.14

65

NUT A2, STEERING STEM (NOT AVAILABLE)

95020-11200

Unavailable

66

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
