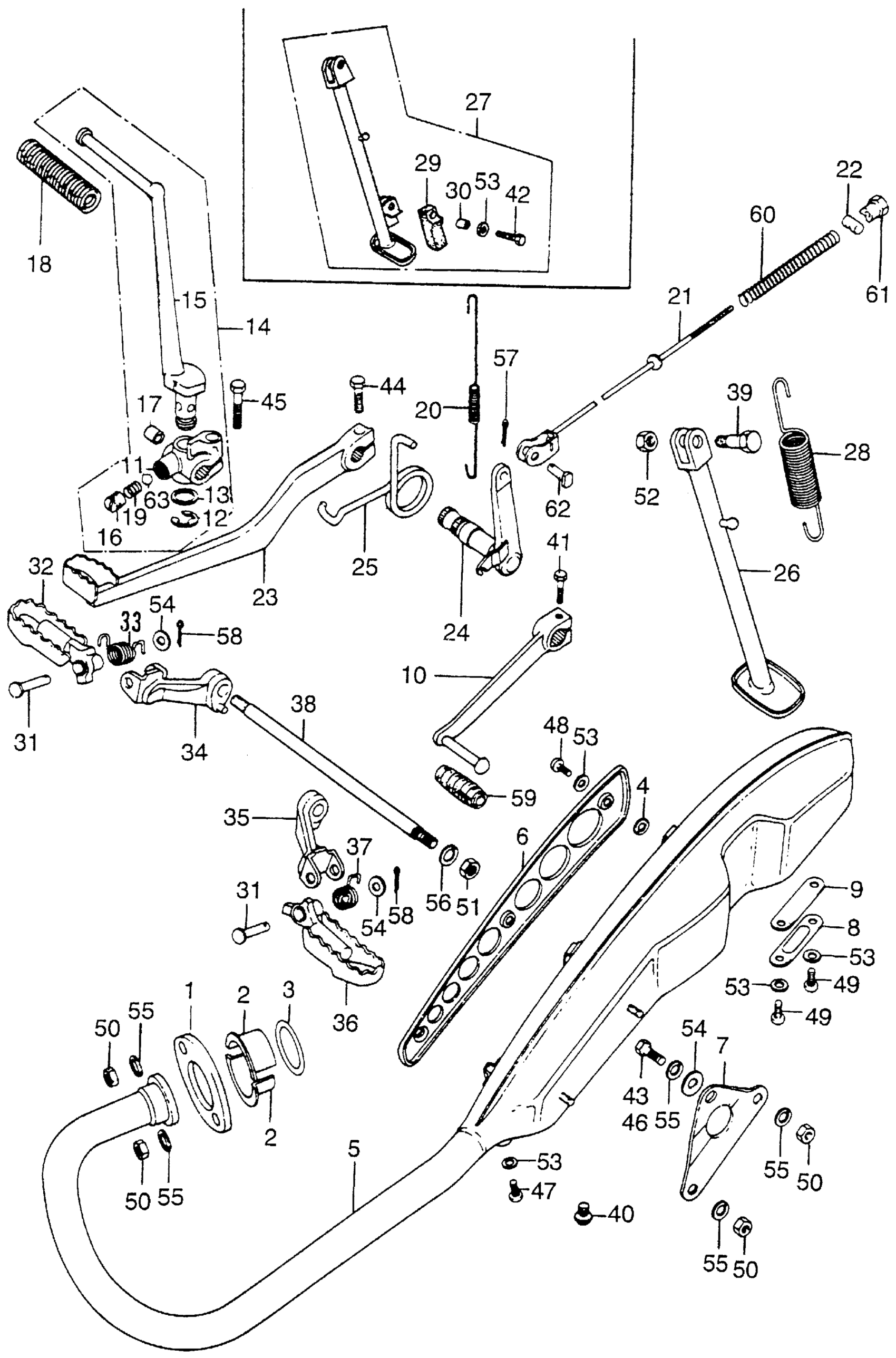

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 MUFFLER + STAND + PEDAL Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-329-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-318-000

$12.82

3

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

3

GASKET, EX. PIPE

18291-286-306

$7.19

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-362-305.

18300-362-307

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE)

18300-362-307

Unavailable

6

PROTECTOR, MUFFLER (NOT AVAILABLE)

18315-362-000

Unavailable

7

STAY, MUFFLER MOUNT (NOT AVAILABLE)

18353-362-000

Unavailable

8

LID, MUFFLER This part replaces 18373-310-000.

18373-446-010

Unavailable

8

LID, MUFFLER This part replaces 18373-446-000.

18373-446-010

Unavailable

8

LID, MUFFLER

18373-446-010

Unavailable

9

GASKET, MUFFLER

18374-KR8-900

Unavailable

9

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

10

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-362-000.

24701-391-690

Unavailable

11

JOINT, KICK ARM This part replaces 28241-362-000.

28241-388-000

Unavailable

12

CLIP, KICK STARTER ARM

28293-333-000

$2.67

13

WASHER, KICK STARTER ARM (NOT AVAILABLE)

28294-333-000

Unavailable

14

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-362-010

Unavailable

15

ARM, KICK STARTER

28301-362-010

Unavailable

16

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

17

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

18

RUBBER, KICK STARTER

28311-342-000

$6.71

19

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

20

SPRING, STOP SWITCH

35357-KE5-000

Unavailable

20

SPRING, STOP SWITCH This part replaces 35357-303-010.

35357-KE5-000

Unavailable

21

ROD, RR. BRAKE

43451-GK4-970

Unavailable

21

ROD, RR. BRAKE This part replaces 43451-362-010.

43451-GK4-970

Unavailable

22

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

22

JOINT, BRAKE ARM

95015-32001

$1.49

22

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

23

PEDAL, BRAKE

46500-362-000

Unavailable

24

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46510-362-000

$29.85

25

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-362-000

Unavailable

27

BAR ASSY., SIDE STAND

50540-362-770

Unavailable

28

SPRING, SIDE STAND

50542-310-010

Unavailable

29

RUBBER, STAND

50548-356-700

$10.50

30

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

31

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

31

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

32

ARM, R. STEP

50616-130-670

Unavailable

33

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

33

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

34

BAR, R. STEP (NOT AVAILABLE)

50625-362-000

Unavailable

35

BAR, L. STEP

50635-362-000

Unavailable

36

STEP, L. (NOT AVAILABLE)

50642-130-670

Unavailable

37

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

37

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

38

BOLT, RR. ENGINE HANGER (NOT AVAILABLE)

90105-362-000

Unavailable

39

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

40

BOLT, CAP (10MM) (NOT AVAILABLE)

90125-362-000

Unavailable

41

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

41

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

42

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

42

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

44

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

44

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

45

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

45

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

45

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

46

BOLT-WASHER (8X16) This part replaces 93413-08016-00.

93403-08016-00

Unavailable

46

BOLT-WASHER (8X16) This part replaces 93483-08016-00.

93403-08016-00

Unavailable

47

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

47

SCREW, PAN (6X8)

93500-06008

$1.49

47

SCREW, PAN (6X8)

93500-06008-0A

$1.49

47

SCREW, PAN (6X8)

93500-06008-0H

$1.49

47

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

48

SCREW, PAN (6X10)

93500-06010-4J

Unavailable

48

SCREW, PAN (6X10) This part replaces 93500-06010-49.

93500-06010-4J

Unavailable

49

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

50

NUT, HEX. (8MM)

94001-08000-0S

$1.49

51

NUT, HEX. (10MM)

94001-10000-0S

$1.49

52

NUT, HEX. (10MM)

94030-10000

$1.49

53

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

53

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

53

WASHER, PLAIN (6MM)

94101-06800

$1.49

55

WASHER, SPRING (8MM)

94111-08000

$1.49

56

WASHER, SPRING (8MM)

94111-10000

$1.49

57

PIN, COTTER (1.6X12)

94201-16120

$1.49

58

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

58

PIN, COTTER (1.6X25)

94201-16250

$1.49

59

RUBBER, SHIFT PEDAL

95011-40000

$1.49

60

SPRING A, BRAKE ROD

95014-73100

$1.49

60

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

61

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

62

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

63

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
